IPSO TMB795C - Gas Connection Locations

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – 50 and 75
4-08-44
7

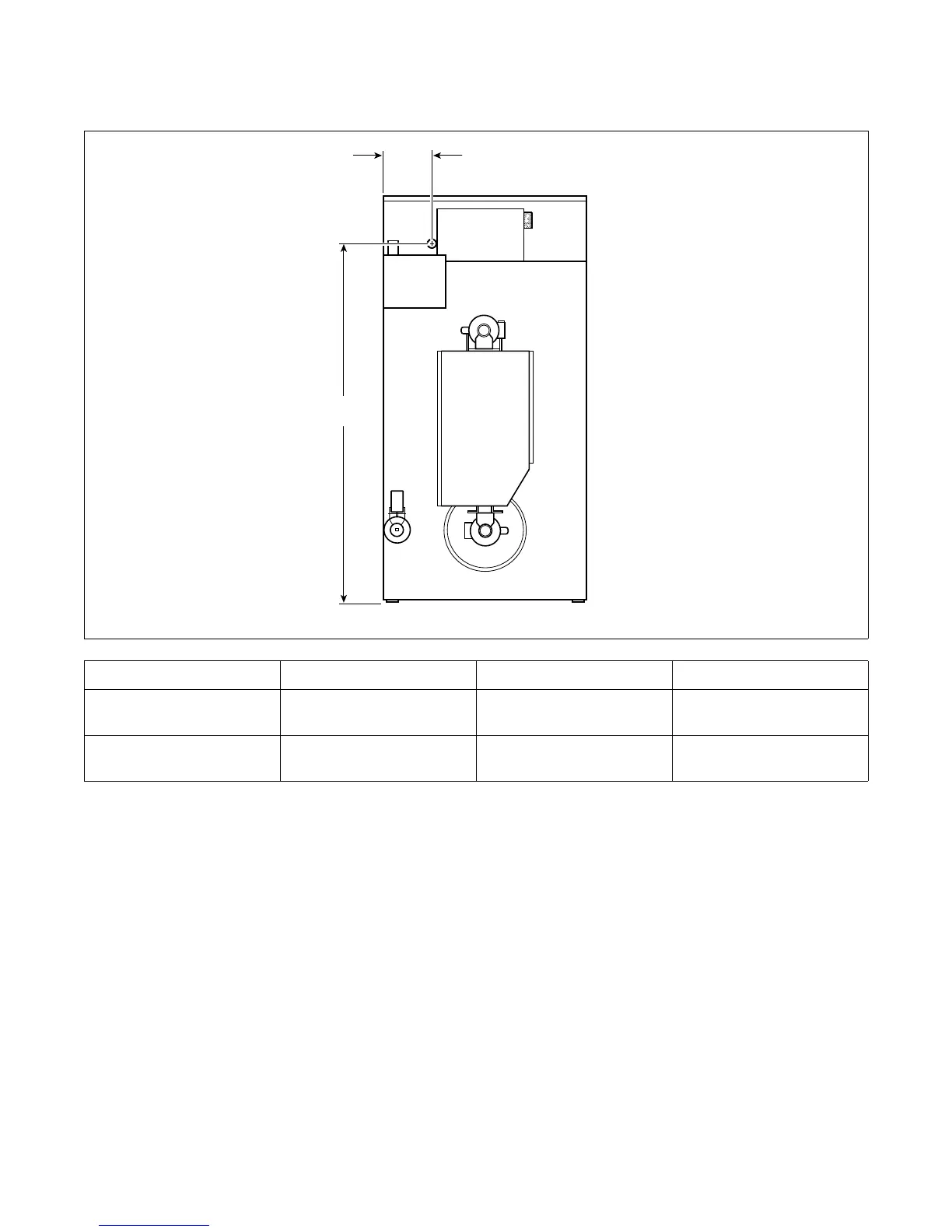

Gas Connection Locations
TMB812N
A
B
Models Diameter A B
50 Pound
1/2 in. NPT 15.5 in.
(394 mm)
65.75 in.
(1670 mm)
75 Pound
1/2 in. NPT 15.75 in.
(400 mm)
65.75 in.
(1670 mm)
