Accessories
Closeup Lens (Model UX 10P and UX 20P)
These lens are used for measurements shorter than 0.5 Meters. The measuring
diameter is determined by the focal factor. The measuring diameter is expressed by the
following formula:
(Measuring Distance)/(Focal Factor)= (Measuring Diameter) ( units are MM)
Example:
The focal factor is 100 for the UX 20P and the target is 500MM away. The
formula is 500/100 =5 mm.
Lens Model Focal Range, mm Min. Dia UX 10P Min. Dia. UX 20P
UX CL 1 250-540 mm 2.5-5.4 mm 1.0-2.2 mm
UX CL 2 180-290 1.8-2.9 0.7-1.2
UX CL 3 130-180 1.3-1.8
UX CL 4 100-130 1-1.3
See Figure 1 below for installation

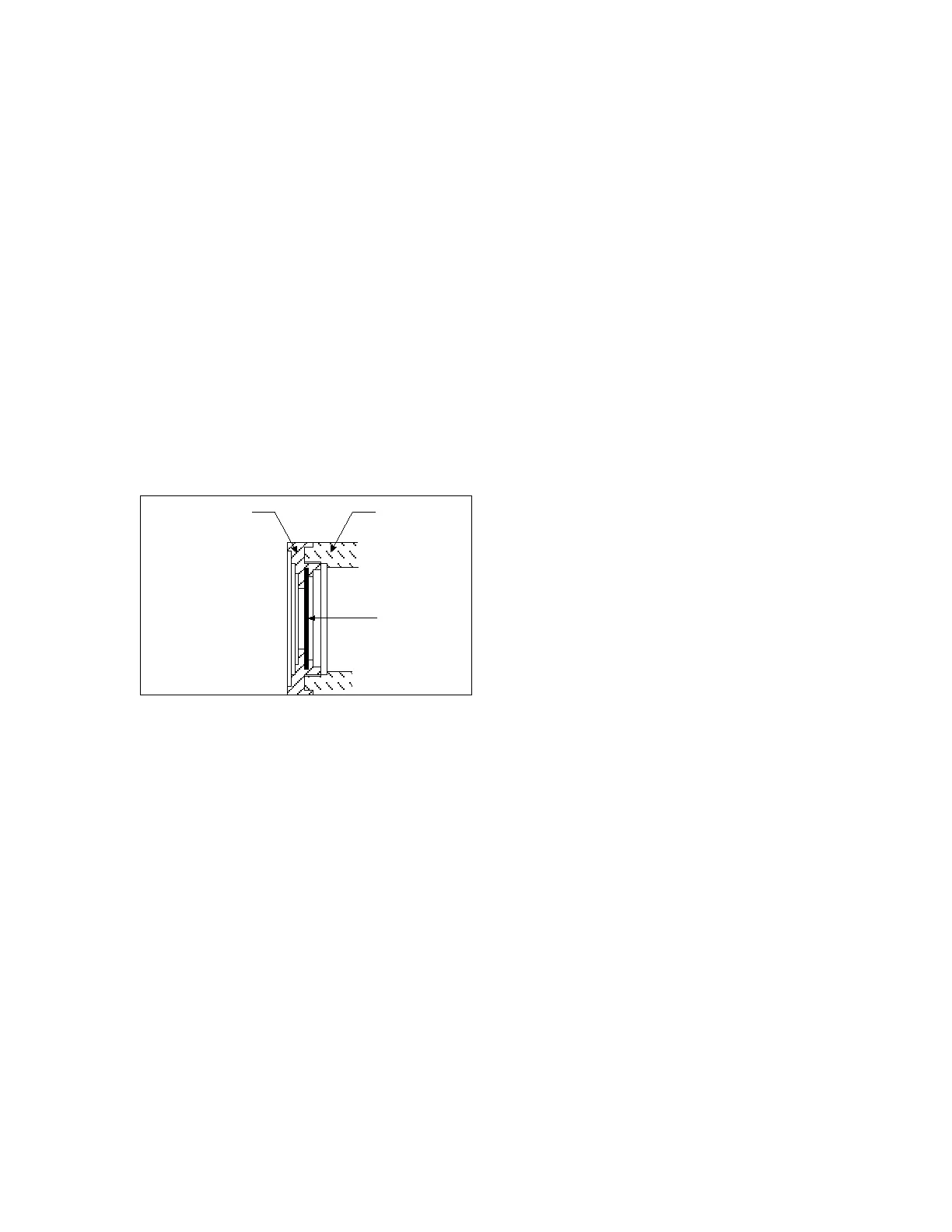

Cover glass ring
Lens cylinder
Cover lens
Fig. 1: Installation of CL Lens
AC Power Adapter
This adapter is available for continuous operation with AC power. The adapter is a
universal power of 100-240 Vac, 50/60 Hz, CE approved. For connection, insert the
plug of the adapter into the DC power jack.
Datalogging Software (UX SW40)
This software provides 3 kinds of data management modes: Real time, Trend Mode,
Multi-Point monitoring made by utilizing memory and 1 point historical trend mode.
Graph display, report creation, printing and data storage can be easily executed. The
export to a spread sheet application is also possible.
