5 IRMA 6 components

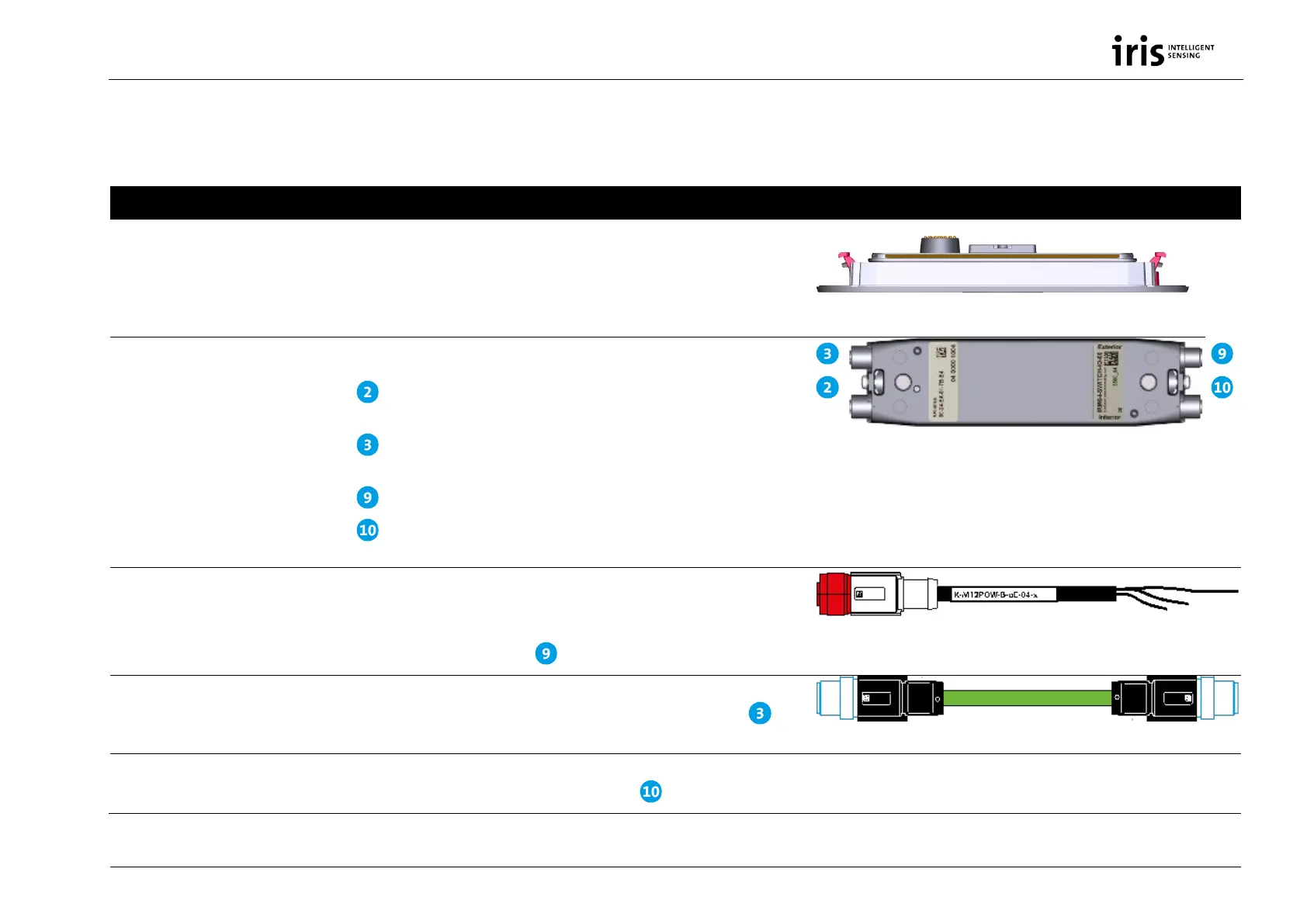

Table 2: Overview of IRMA 6 components - interface and sensor unit with cables
Description Explanation Sketch / item description
IRMA 6 sensor unit Connection possible with: interface unit of IRMA 6
IRMA 6 sensor unit
IRMA 6 interface unit with: Connector for IRMA 6 sensors, interfaces:
1 Ethernet interface ETH: M12 connector (f), ETH type: for connection to the
switch
1 Ethernet interface
ETH: M12 connector (f), ETH type: for connection to the
switch
1 power supply interface
Power supply connector (m) IRMA 6 interface unit for connection principle see section see
Connector types , p. 15.3.2
1 door contact interface (on
demand)
Door contact and / or door clear optional, (f)
M12 power cable for IRMA 6 K-M12POW-B-oE-04-2m
M12 cable for power supply of IRMA 6, 1x M12 connector (f), CAN
type / two wires and shield for connection to the vehicle-provided
power supply, component .
K-M12POW-B-oE-04-2m
M12 system cable, Ethernet type K-M12CAT5-XX-xm Ethernet cable for connection of IRMA 6 to the
M12 switch, 2 x M12 connector (m), ETH type, component .
K-M12CAT5-XX-xm
M12 door contact cable (on
demand)
Cable for connection of IRMA 6 to the door contacts with the two
wires, 1 x M12 connector (m), component .
n. n.
