3.1 Ensuring power supply
1 Fuse 5 A, quick-
acting
2 Timing relais,
(dropout/OFF delay)
for 30 min minimum
3 Power cable for
IRMA 6 K-M12POW-
B-oE-04- 2m
4 IRMA 6

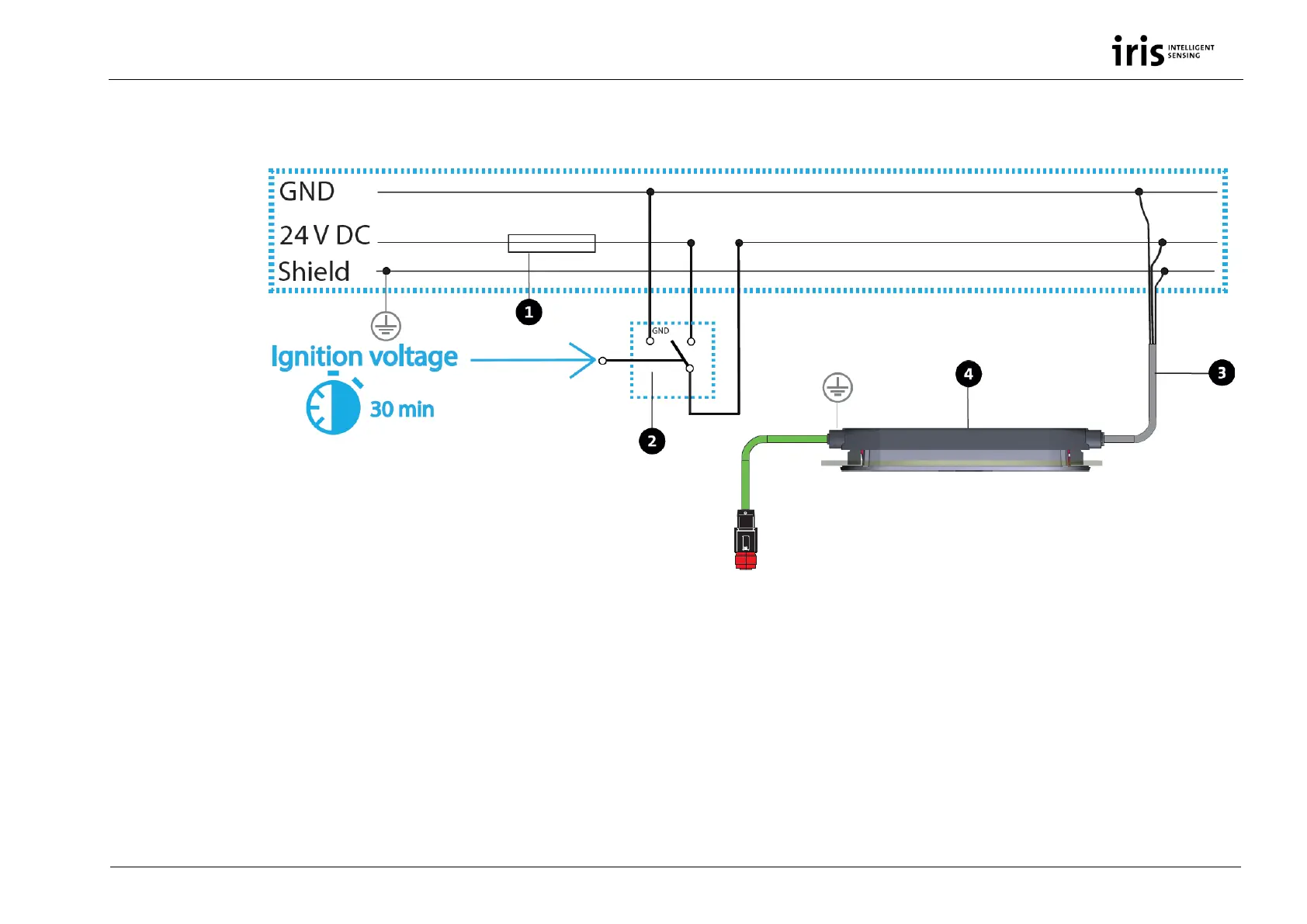

Fig. 4: Power supply of the IRMA 6 sensor with fuse and time relay for 30 min overrun power
