IRIS IRMA 6 - Check of the Installation

IRMA6
-SENSOR-HD-00-SWITCH-(IO)-00-(R)(1) Installation Manual | Released
Rev. 1.4 | 12/2020
26 / 27

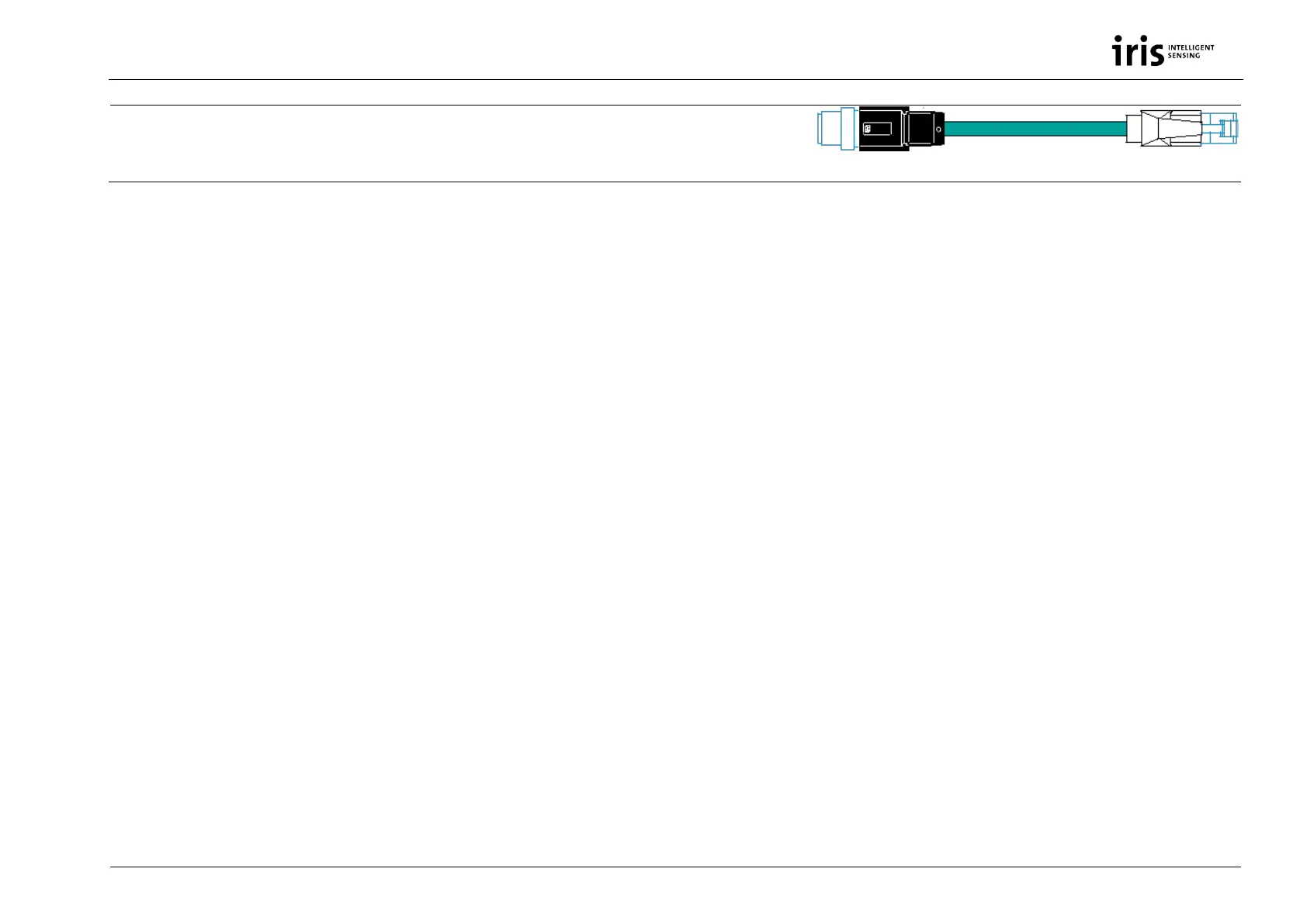

M12 / RJ45 adapter cable Adapter for the connection of a notebook for servicing,M12
connector (m), ETH type / RJ45 connector (m)
KQ-M12CAT5-RJ45-01-xm
Chec k
6 Check of the installation
1.
Have all IRMA 6 been installed and are they properly attached?
2.
Is their mounting position correct?
3.
Have all IRMA 6 connecting cables been attached to the interface unit?
4.
Is the IRMA 6 power supply connected?
5.
Is the switch power supply connected?
6.
Is the switch connected to the onboard computer?
7.
Do the infrared LEDs of IRMA 6 light up when the door is open? Please check
separately for each door!
8.
Are the infrared LEDs of the IRMA 6 out when the door is closed? Please check
on each door individually!
9.
Then the installation is checked using the web interface IRMA 6 configuration.
