12. Remove grill and lights from
bumper bar.

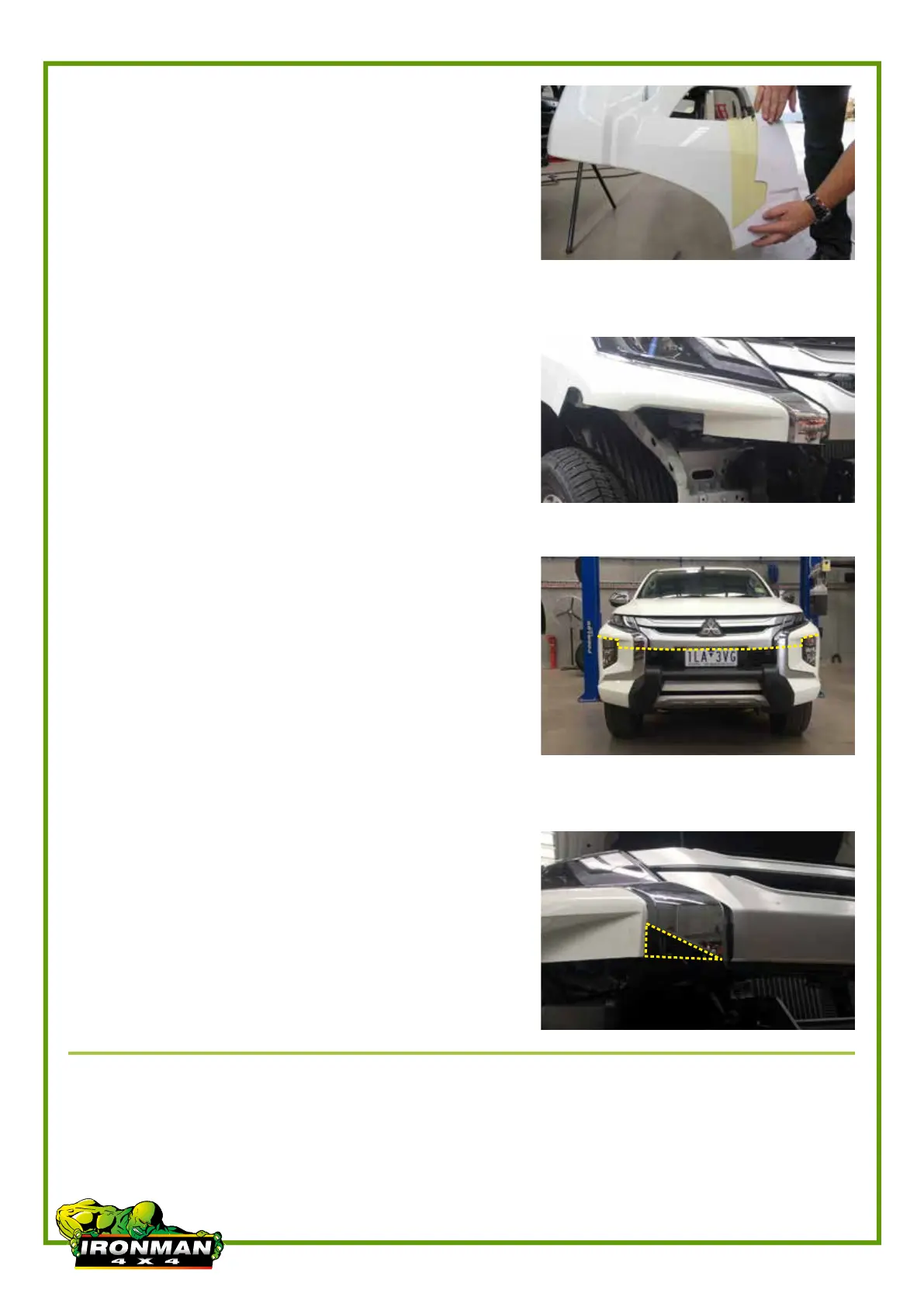

Use supplied template to mark
both sides of the bumper.
Follow the cut line on the OE light
recess. Do not cut area mark,
“top of light”. The horizontal part of
the bumper remains in place, do
not cut above the light.
See image to right.
Continue cut line straight across
bumper bar as indicated.
NOTE: Leave top section of bumper in
place to allow the grill to be clipped
back in place.
Mark triangle template over
chrome sections as indicated.
Triangle is 40mm H x 100mm W.
Re-fit bumper bar and grill to
vehicle.
13. If winch is being installed, refer to winch
installations instructions on page 14.
40mm H
100mm W
To Next Page
