17. If applicable fit parking sensors,
refer to page 10 for details.

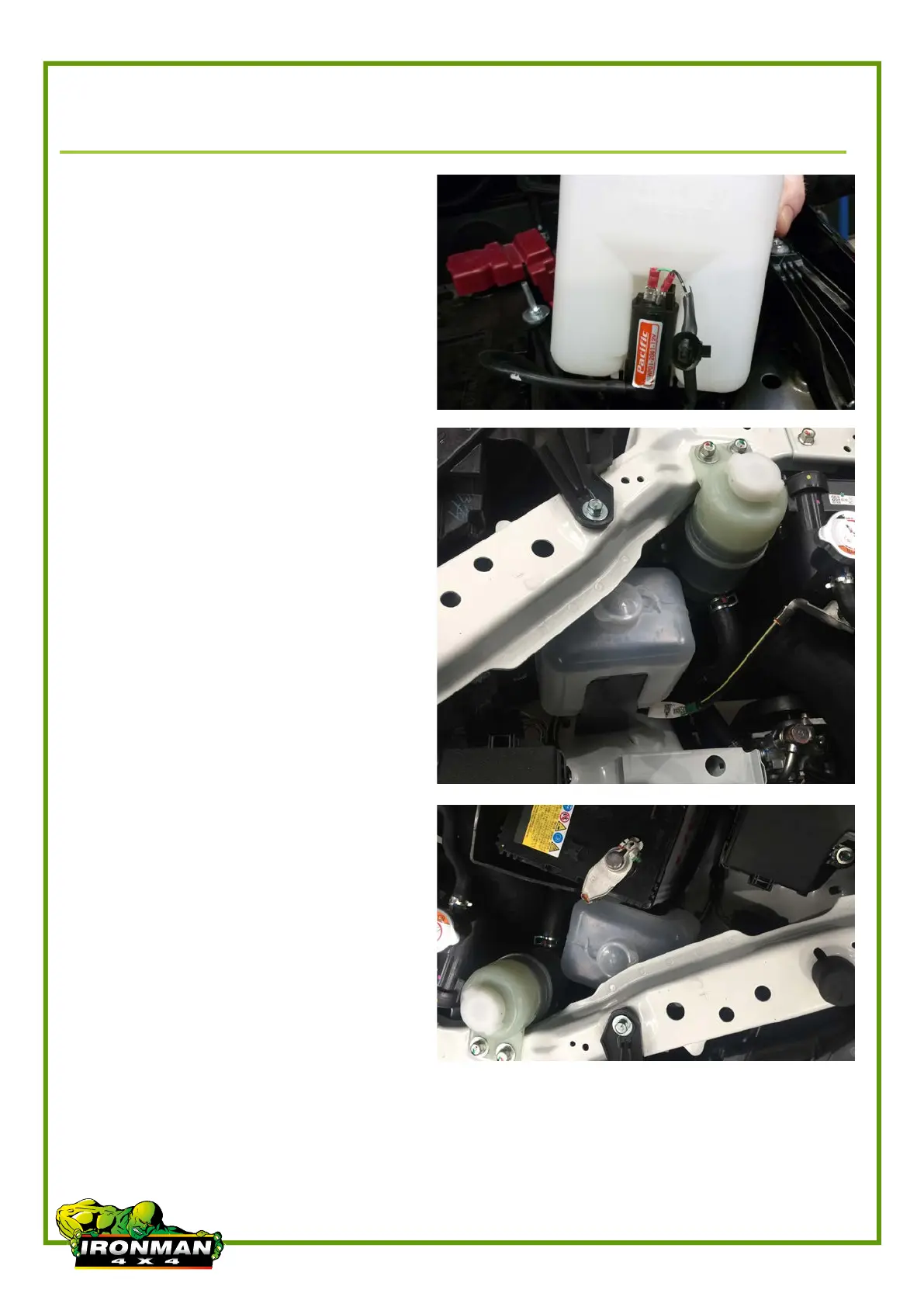

18. TO FIT WASHER BOTTLE:
Remove battery.
Unclip factory wiring loom for
washer pump and pull through into
engine bay. Cut factory plug off the
loom and crimp spade terminals
supplied onto the wires. Connect to
supplied pump as shown.
Shorten factory hose and connect
to washer pump.
Place washer bottle into cavity
behind headlight.
Fit mounting bracket using body
earth bolt.
Fit washer bottle to bracket and
replace battery.
NOTE. It is easier to connect indicators,
park lights and fog lights during
this process as it allows easier
access to the plugs.
Refer to wiring diagram on
page 16.
To Next Page
