BBCD068 Installation Guide
©Copyright 2018 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd

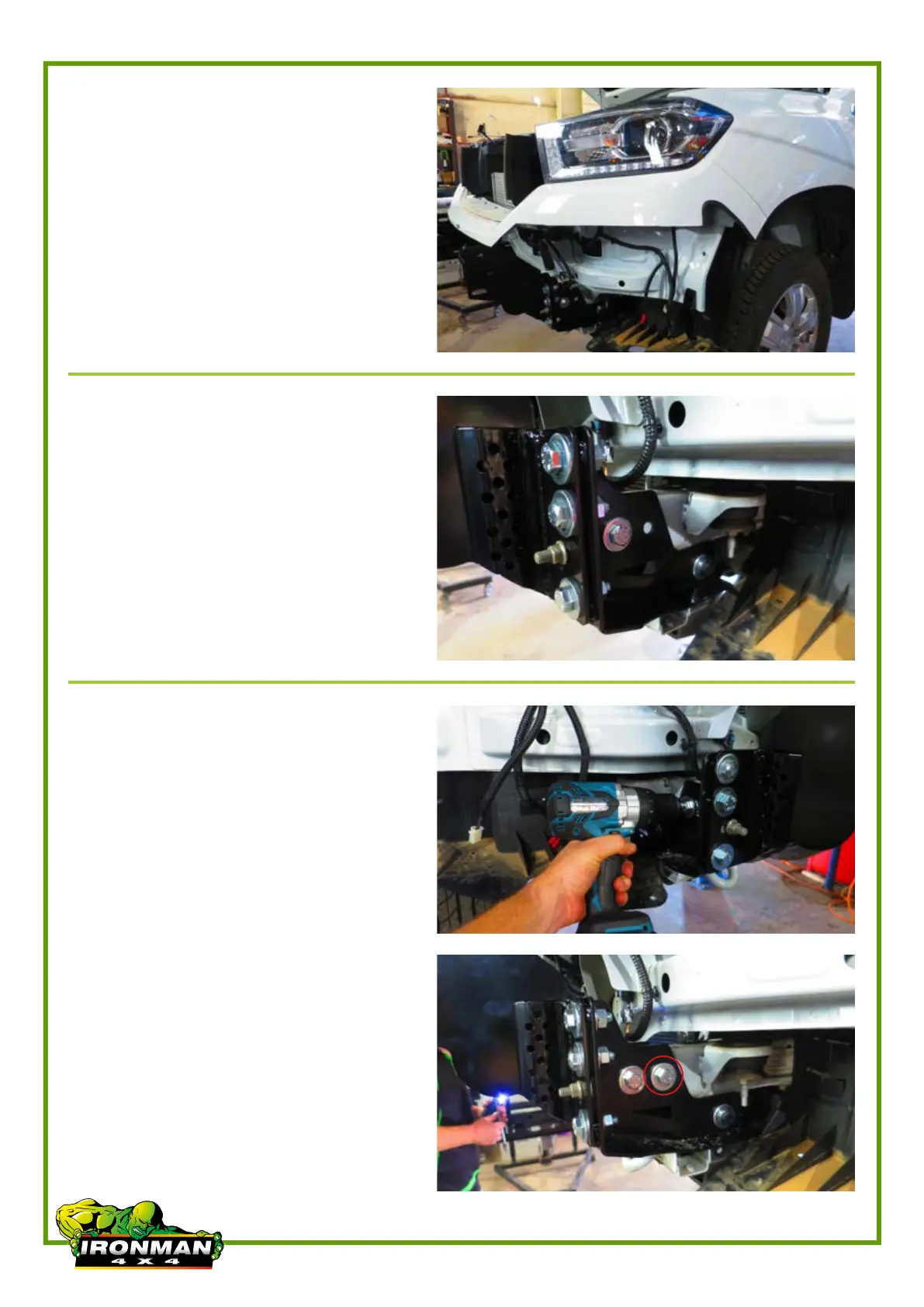

7. Using chassis bracket as a guide,
drill a 12.5mm hole through
chassis and install supplied M12
bolts, flat washers, spring washers
and nuts.
6. Loosely fit inner and outer chassis
support brackets with supplied
hardware. Install chassis bracket to
vehicle using hardware provided.
Centralise and tighten all bolts.
5. Cut bumper bar and re-fit to
vehicle. Use supplied edging over
bumper cut.
