Page 7
MANUAL
iRoom‘s iDock / miniDock
English

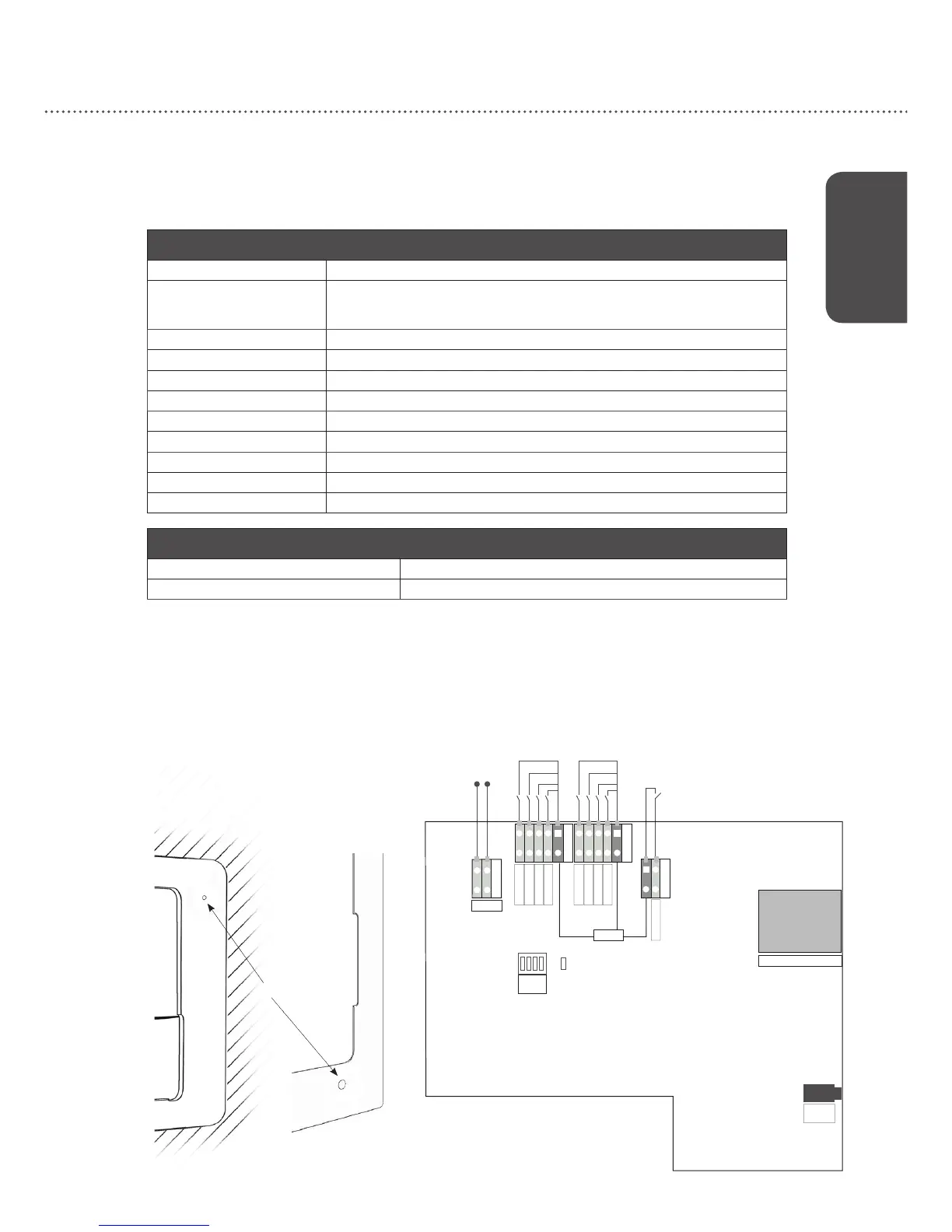

Speci cations
iRoom’s iDock
Type LBG/LWG/LBA/LWA/ LBG-5/LWG-5/LBA-5/LWA-5 Serial Number starting with 0103
Dimensions
iDock Landscape: W x H x D 372.0 / 246.5 / 76.5 mm ( ush-mount)
iDock Landscape: W x H x D 351.7 / 226.2 / 72.9 mm (standard)
miniDock: W x H x D 226.0 / 315.0 / 76.5 mm ( ush-mount)
Power Supply 100-240VAC; 50/60Hz; 0,35A; PoE
+
(44-57VDC; 0,6A)
LAN 10Mbps/100Mbps
Communication TCP / status & control
Function Description Store & charge iPad
Digital inputs / digital outputs 9 DI (contact closure) / 1 DO (relay; 30VDC, 1A / 125VAC, 0.3A)
Glass Bezel Standard Glass
Audio out stereo analog, 3.5 mm audio jack
Operating Temperature 0 - 35°C or 32 - 95°F
Operating Humidity 20% - 90% RH non-condensing
Relay & Terminals
Relay Contact rating (resistive) 30VDC, 1A / 125VAC, 0.3A
Terminal speci cations (9 x DI / 1 x DO) 26-20 AWG / 0.13-0.52mm²
iDock
miniDock
Main Feature Overview
Before installation please become familiar with the main features and parts of your
iRoom‘s iDock:
HomeButton
off
LED
4 3 2 1
on
Relay
GND
Audio
3,5 mm
RJ45 PoE
+
(IEEE802.3at)
DIP
SWITCH
Quick DI 8 Quick DI 7 Quick DI 6 Quick DI 5
Quick DI 0
Quick DI 4 Quick DI 3
Quick DI 2 Quick DI 1
