Irritrol KwikDial User Manual

9

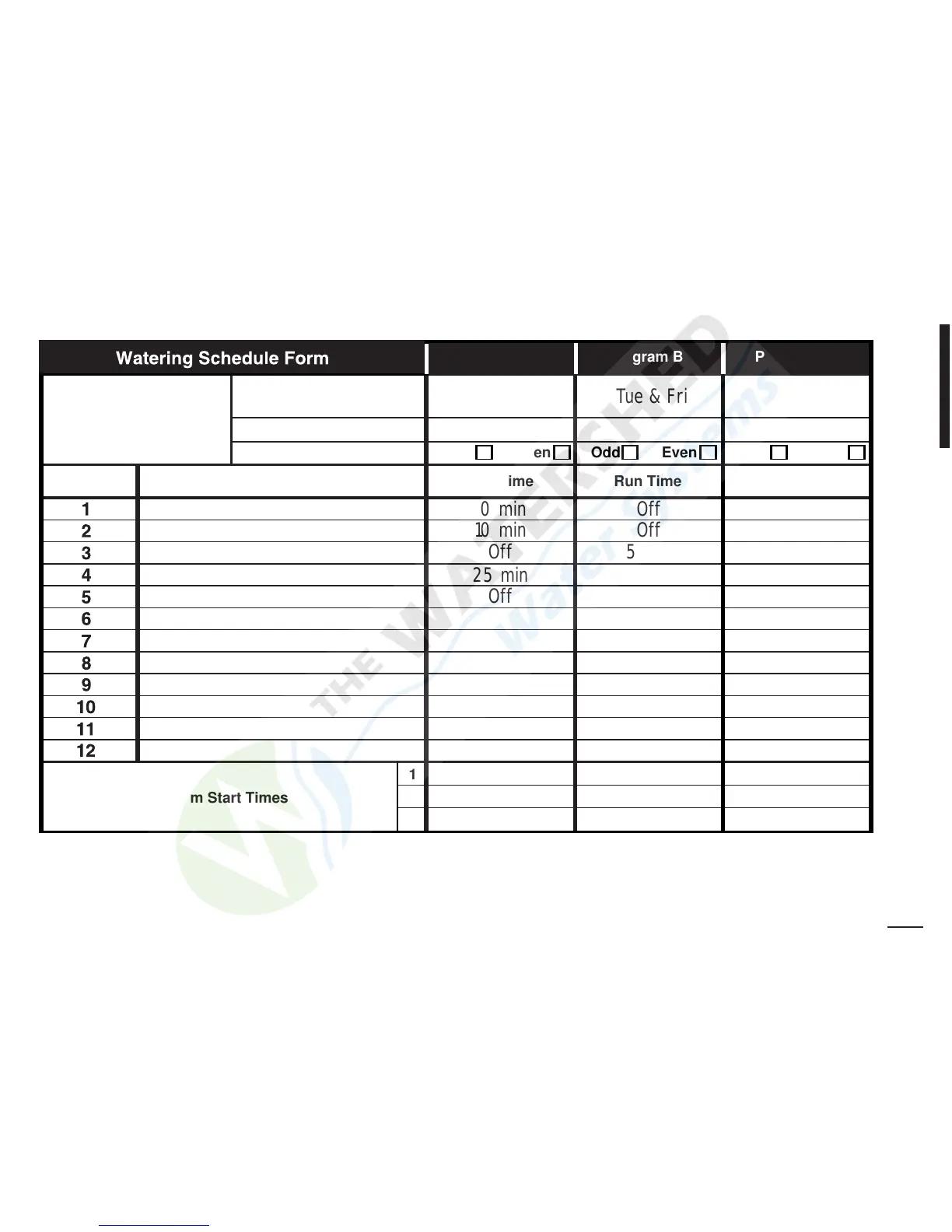

Program Start Times
Watering Day Schedule
Day Interval
Calendar Days
Odd
Odd/Even
Even
1
2
3
Odd Even Odd Even
Station
Location
Run Time Run Time
Run Time
Program A Program B Program C
(Example)
Parkway Lawn 10 min Off Off
Front Lawn 10 min Off Off
Front Shrubs Off 5 min Off
Back Lawn 25 min Off Off
Garden Off Off 1 hour
5:00 AM 4:00 AM 6:00 AM
Off Off Off
Off Off Off
Tue & Fri
2-day 3-day

Irritrol KwikDial Specifications

General

Model	KwikDial
Mounting	Indoor/Outdoor
Rain Sensor Compatibility	Yes
Cycle and Soak	Yes
Rain Delay	1 to 7 days
Manual Watering	Yes
Zones	4, 6, 8, 12
Stations	4, 6, 8, 12
Programs	3 independent programs
Watering Schedule	7-day calendar
Power Source	120 VAC
Backup Battery	9V battery
Watering Duration	1 minute to 12 hours
