(saturated) at the selected range value, and peak current measurement will be impossible. However, in
case of wrong selection no damage to measurement circuits will occur.

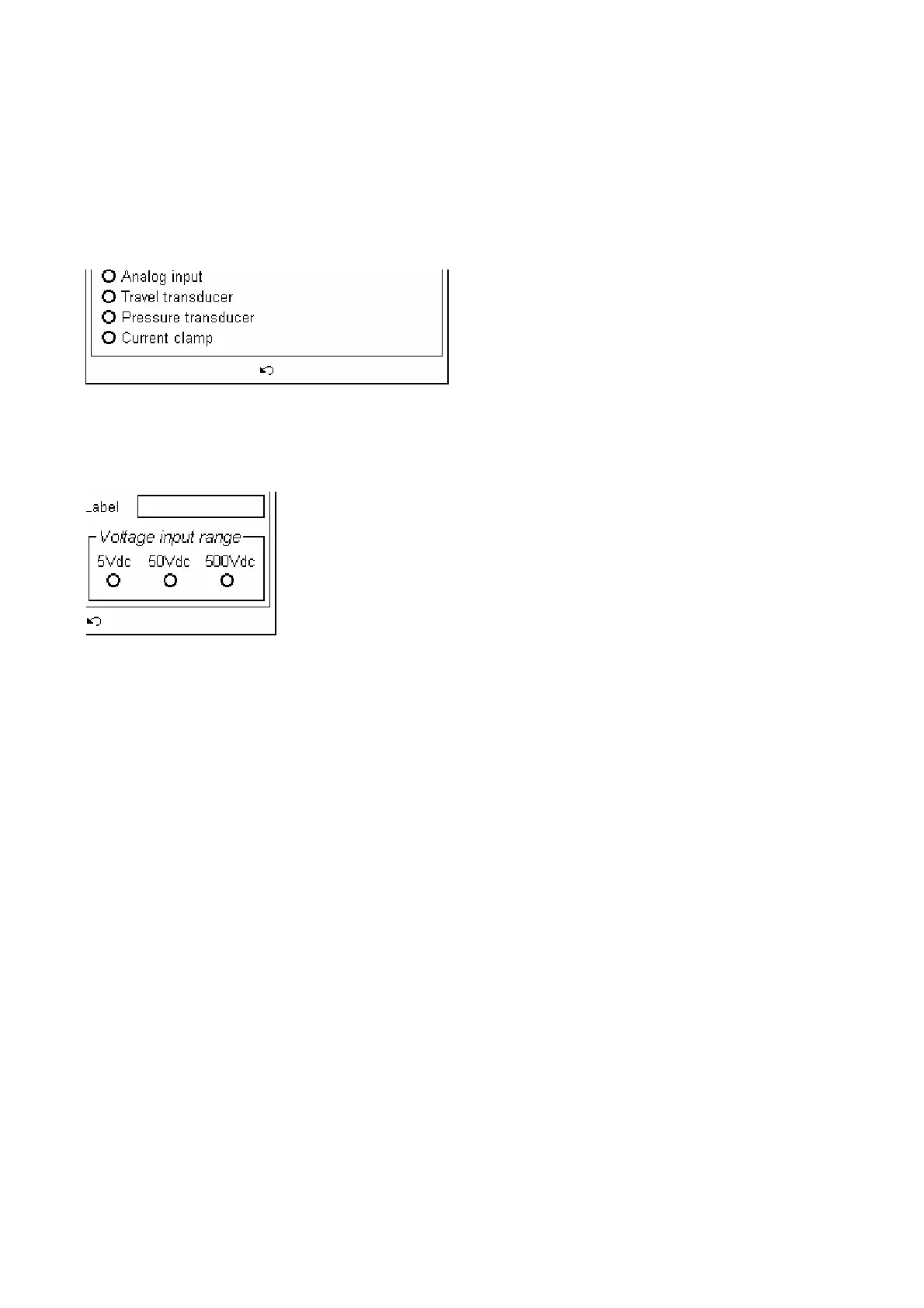

For the Analog channel, if the box is checked the following lower part of the screen is displayed.
- The “analog input” selection means that the channel is connected to any other source than travel or
pressure transducer: for instance, auxiliary voltage, or Motor voltage, or Motor current. With this
selection, the following window is displayed.
It is possible to label the input, and to select the voltage range, that must be greater than the nominal
coil current, else the recording will be cut (saturated) at the selected range value, and the actual
measurement will be impossible. However, in case of wrong selection no damage to measurement
circuits will occur.
- The “Travel transducer” selection means that the channel is connected to a travel transducer, and that
it is desired to convert the input voltage into: stroke, speed, acceleration. The program will take into
account the fact that the beginning of the stroke is not 0 V, and that the end of the stroke is not the
voltage that supplies the transducer.
With this selection, the following window is displayed.
