DOC. SIE10110 Rev. 6 Page 25 of33
Two types of transit cases are available: molded and aluminum.

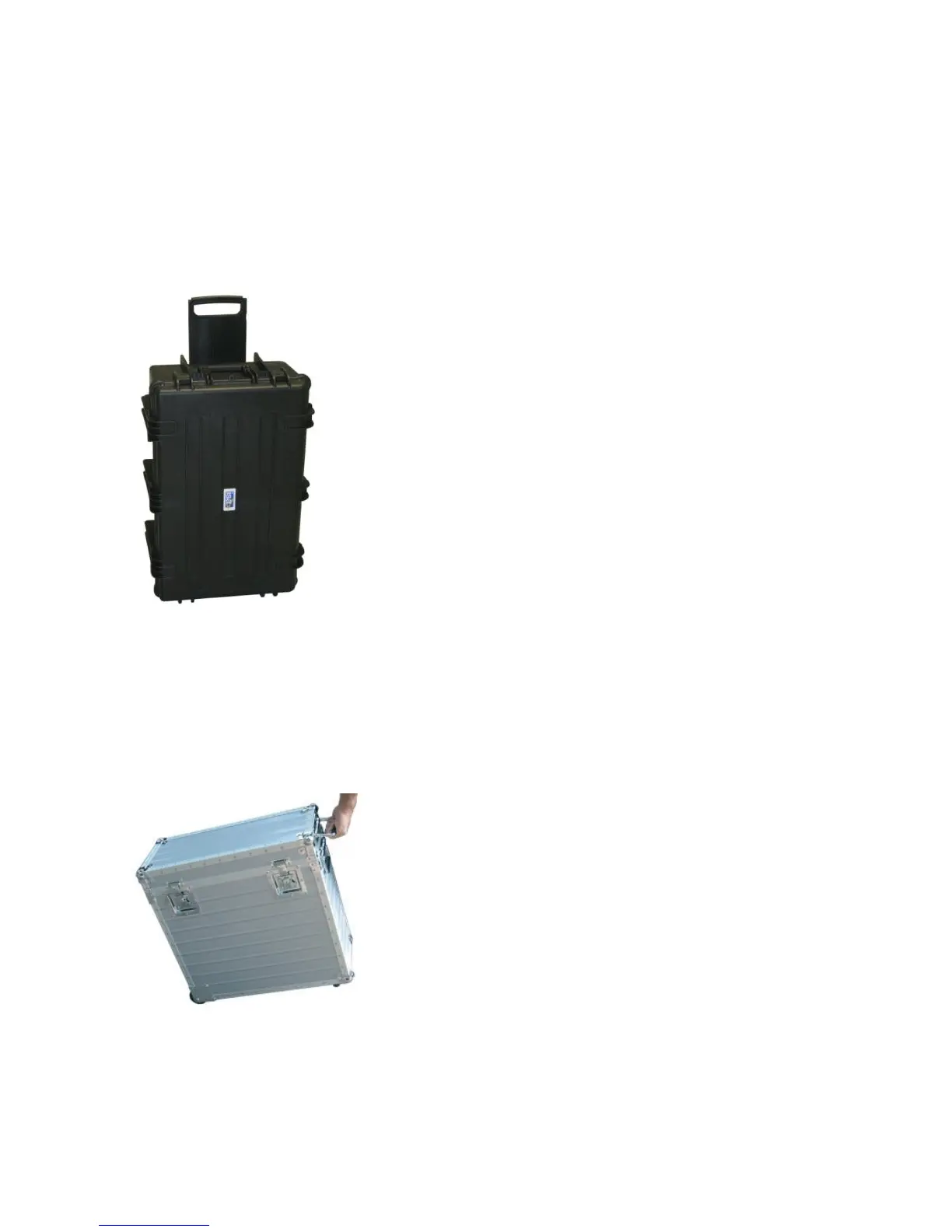

3.12.4.1 Molded case; code PII24102
The protection of T3000 from delivery problems is provided by this robust transit case, that
features the following.
- Molded-case construction;
- Handle on the top and on the side;
- Wheels;
- Dimensions: 450 x 550 x 850 mm ;
- Weight : 15 kg.
3.12.4.2 Aluminum case; code PII17102
In alternative to the above, it is possible to use the following aluminum case, that is lighter and
smaller.
- Aluminum metal sheet construction;
- Handles on the side;
- Wheels;
- Dimensions: 400 x 370 x 660 mm ;
- Weight : 11.5 kg.
3.12.5 Current clamp code PII16102
The current clamp allows to avoid the opening the secondary current circuit when performing the
primary test of CT burden. The clamp ratio is 1000//1; maximum primary current 100 A; maximum
cable diameter 12 mm.
