Each option is provided with a connection cable having the following characteristics:
- Number of conductors: 2.
- Conductors cross section: 95 sq. mm.
- Conductors type: high flexibility.
- Conductors length: 2.8 m.
- Weight, including the screw-driven clamps: 8.5 kg.
Each option is also provided with two high current screw-driven clamps for the connection to high
bars, having the following characteristics:
- Material: aluminium.
- Opening range: from 5 to 60 mm.
- Short-circuit current rating: 41 kA / 1 s.
- Applicable standard: EN 61230.
- Hole to lift the clamp on the conductor, and ring to screw it up.

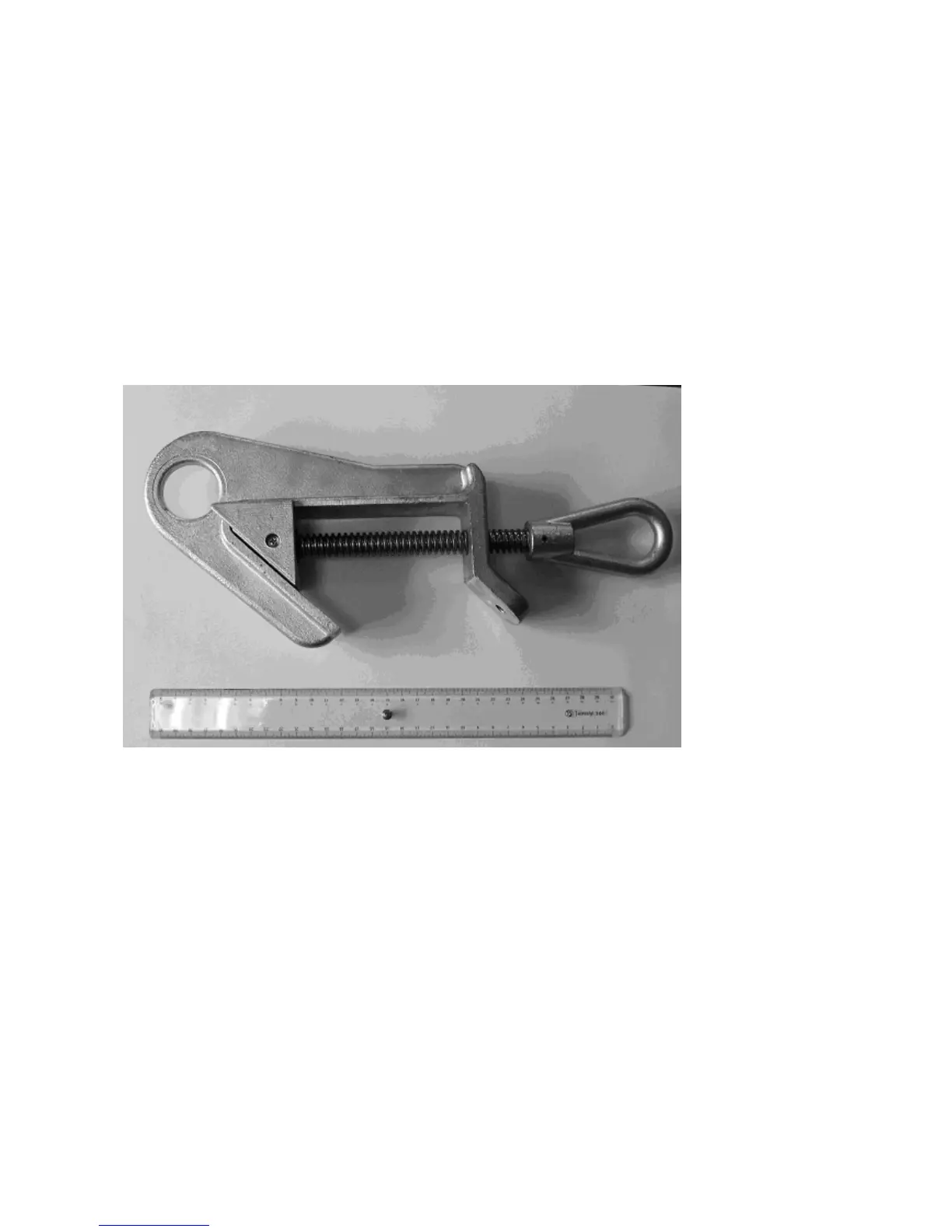

The screw-driven clamp is shown in the following picture.
Each option is also provided with four high current clamps for the connection to bars located into
narrow places, having the following characteristics:
- Material: iron (bronze for the contacts).
- Opening range: up to 60 mm.
- Steady current rating: 800 A / 1 s.
The spring clamp is shown in the following picture.
