DOC. SIE10110 Rev. 6 Page 5 of33
The instrument contains a generator, with six outputs: High AC current; Low AC current; Low DC
current; Current impulses; High AC voltage; Low AC voltage.
The selected output is adjustable and metered on the large, graphic LCD display. With the multi-
purpose knob and the LCD display it is possible to enter the MENU mode, that allows to set many
functions, that make T2000 a very powerful testing device, with manual and semi-automatic testing
capabilities, and with the possibility to transfer test results to a PC via the RS232 interface. These
results can be recorded, displayed and analysed by the powerful TDMS software, which operates
with all WINDOWS versions.
The ease of operation has been the first goal of T2000: this is why the LCD is graphic, and so large.
With it, the dialogue in MENU mode is made easy. Besides, all T2000 outputs relevant to the
selected test are continuously measured, and output values are displayed, with no extra effort to the
operator. Also the show waveform feature can be of help: any doubt about strange measurements,
distortion and so on can be solved.
Additional feature: two meters, current and voltage, with independent inputs, and with High and
Low inputs each, allow measuring CT or VT outputs or any other source.

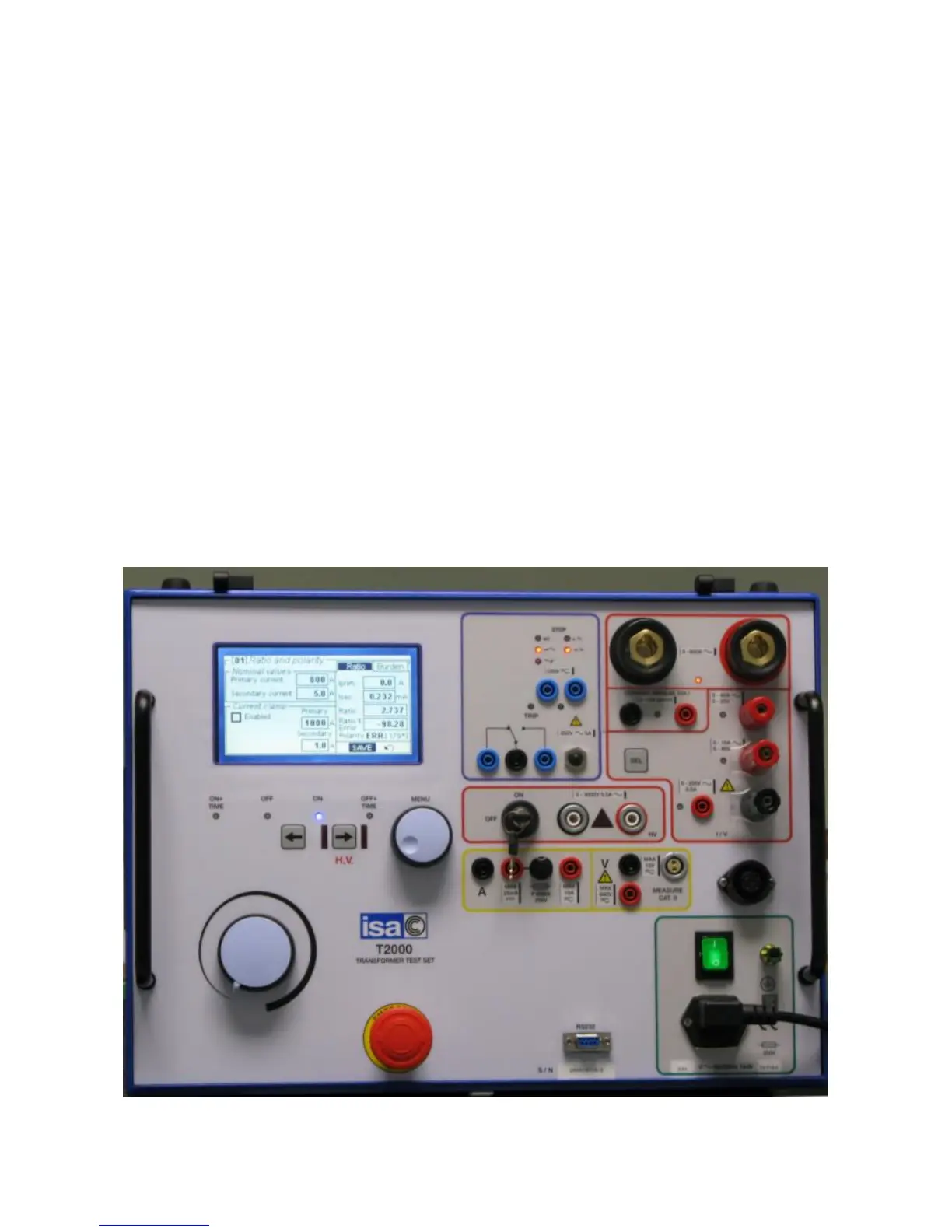

The instrument is housed in a transportable aluminium box, which is provided with removable
cover and handles for ease of transportation. The picture shows T2000 without the protection
cover.
The following is the list of available options:
1. Power supply 110 V, to be specified at order;
