SCMA54,SCMB60,SSM54
104

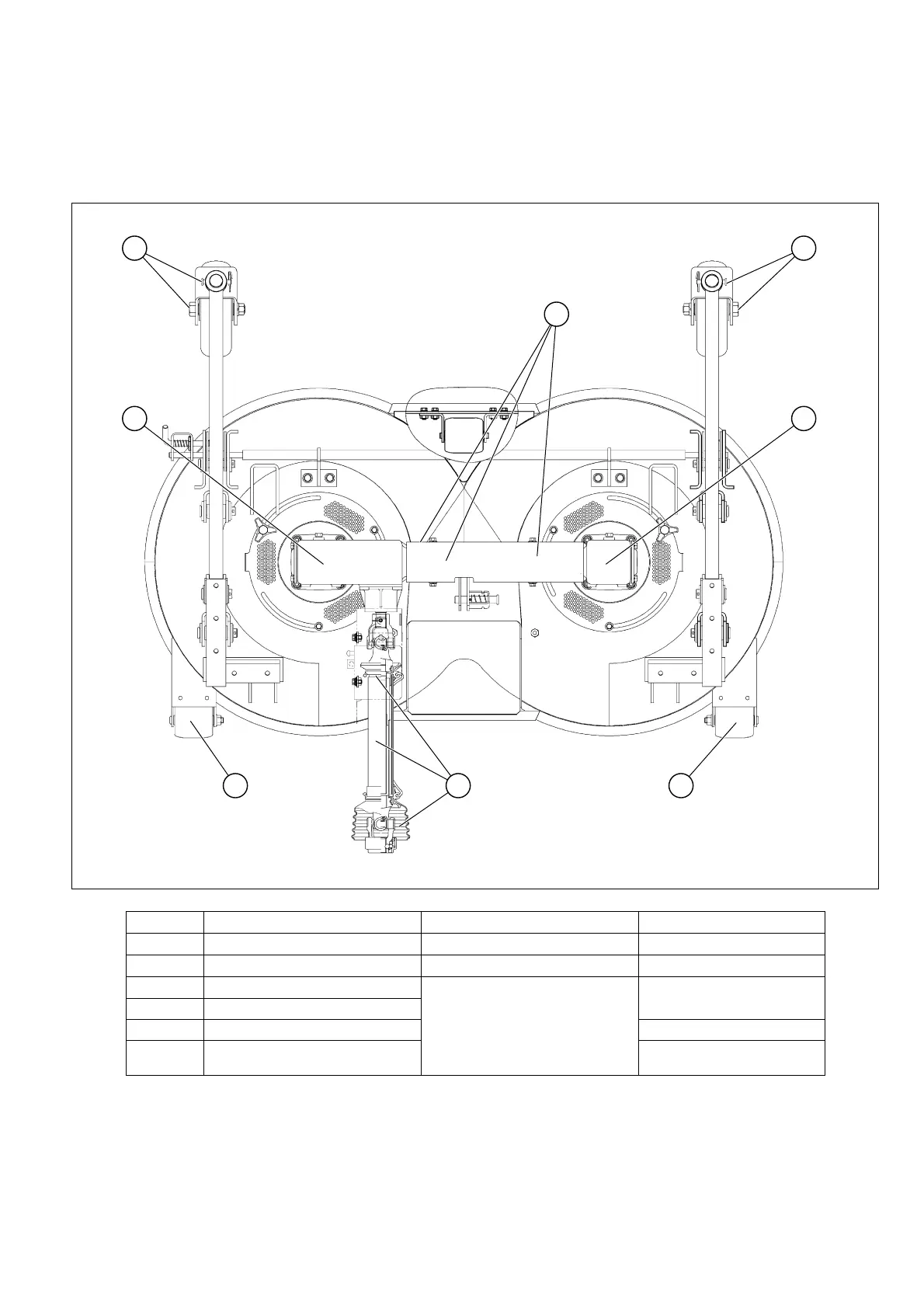

8. FILLING
DIAGRAM
All the shafts mentioned below have a grease fitting on their end. Grease them up periodically
. The gear case should
also be serviced periodically for oil replenishment and replacement.
5
5
2
1
6
3
3
4
SCMA54
Ref.No
Filling points
Lubricants
Quantity: liter (Imp. gal.)
1
Bevel gear case (LH)
Gear oil SAE 80
0.8 ± 0.02 (0.21 ± 0.01)
2
Bevel gear case (RH)
Gear oil SAE 80
0.35 ± 0.02 (0.09 ± 0.01)
3
Gauge wheel
Grease
Inject until grease
overflows
4
Drive shaft
5
Roller
As required
6
Coupling
Inject until grease
overflows
104
