CHAPTER 3. MOWER OPERATION
89
f. The right and left gauge wheels should be set to
the same cutting height.
g. Shift the mower lift lever to the DOWN position to
lower the mower deck.
CAUTION : Before operating the mower lift
lever, be seated in the operator’s seat and
make sure of the safety conditions when
lowering the mower deck.

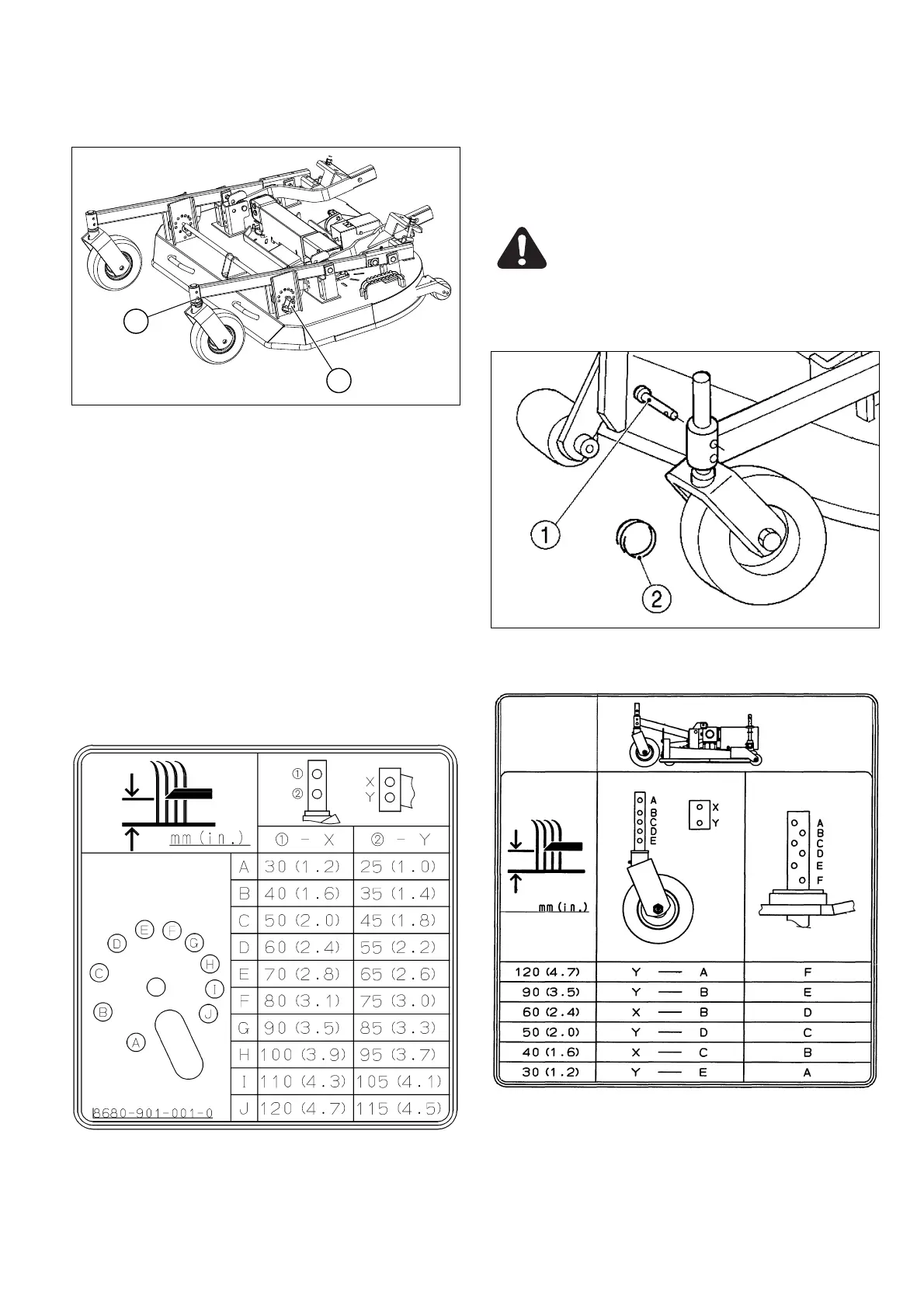

2-3. CUTTING HEIGHT ADJUSTMENT (SSM54)
(1) Pin (2) Clip
2-2. CUTTING HEIGHT ADJUSTMENT (SCMB60)
(1) Lever (2) Pin
a. Depress the brake pedal, and then start the
engine.
b. Raise the mower with the lift. Then stop the
engine.
c. Remove the pin from the front gauge wheel. Set
the pin while holding the gauge wheel with the
other hand.
d. Select one of the setting holes to get the required
cutting height, insert the pin, and retain it with
the spring clip. The label that is showing the
relationships between the setting holes and
cutting heights is stuck on the mower deck.
e. Also set the cutting height of the rear gauge
wheels by re-setting the setting hole for the
setting pin with the ring clip removed.
2
1
