SCMA54,SCMB60,SSM54
90
3. STARTING MOWING OPERATION
CAUTION :
・Read the contents of this manual
thoroughly and carefully and keep safe
operation in mind.
・Before moving the front mower into the
working site, investigate the whole site
and get rid of all obstacles such as stones,
wood, empty tins, bottles, wires, etc for
operation safety.
・Investigate the site for pits, mounds,
steps, slope angles, ground softness,
water pools, etc to avoid turning over,
falling down, and side-shifting.
・Also make sure there is no danger of
hurting children, animals, by-standers.
and damaging nearby trees, buildings, etc.

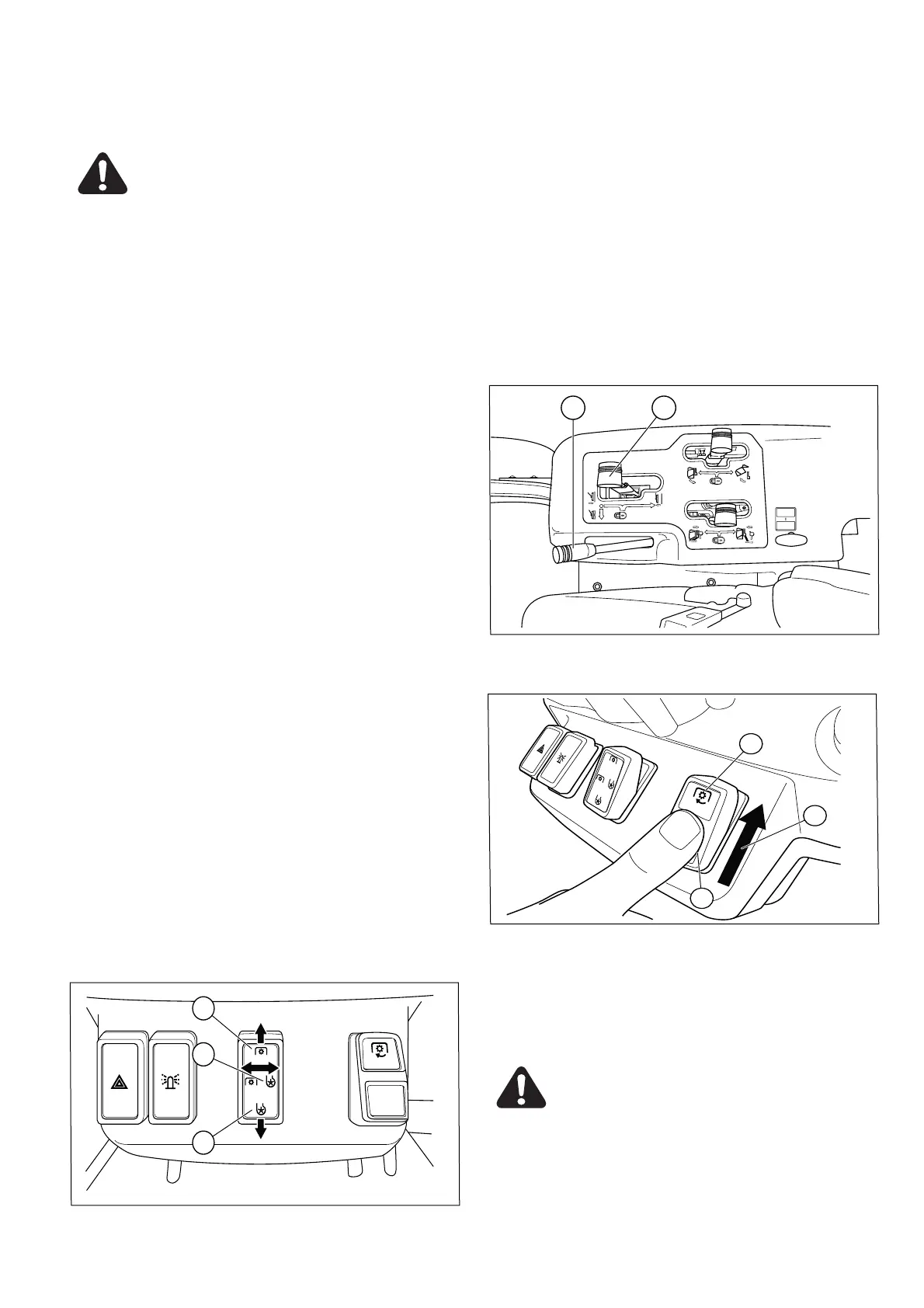

a. Start the engine and turn the throttle lever (5) to the
intermediate position between the low speed and high
speed positions.
b. Shift the mower lift lever (4) to the up position to raise
the mower deck.
c. Release the parking brake.
d. Depress the HST forward travel pedal gradually to
drive the front mower into the working site.
e. Release the HST pedal gradually to stop the front
mower.
f. Shift the mower lift lever (4) to the down position to
lower the mower on the ground.
g. Select the MOWER AND BLOWER SWITCH from (A1)
to (A3) for proper operation.
h. Slide and push BOTTOM button(B2) of PTO
ROTATION Switch.
NOTE:
In order to operate blower PTO or mower PTO, PTO
ROTATION SWITCH (PTO ON/OFF SWITCH) to
be set ON position by sliding(B3) and push Top
button(B1).
Push Top button of PTO ROTATION SWITCH, when
stopping PTO operation.
A:MOWER AND BLOWER SWITCH
(1) Mower PTO switch (Forward/TOP)
(2) Blower PTO switch (Rearward/BOTTOM)
(3) For Mower and Blower (Center)
NOTE: When blower and mower PTO are operating,
both blower and mower PTO will stop by
pushing the blower PTO switch.
NOTE: When the collector is lifted, mower and blower
PTO cannot be operated.
NOTE: When this switch is in center position, both
mower and blower can be operated, if the PTO
ON/OFF switch is in ON position.
(4) Mower lift lever (5) Throttle lever
B:PTO ROTATION Switch
(1) TOP button
(2) BOTTOM button
(3) Sliding Direction
*Please also refer to P38 1.5 MOWER AND
BLOWER SWITCH section and 1.6 PTO
ROTATION SWITCH.
CAUTION :
・PTO restriction mechanism works only
while the PTO is working.
・Before starting to mow, make sure
that this mechanism works properly.
Be sure to detach the drive shaft
before checking the PTO restriction
mechanism.
To Next Page
