Ismart LTC-A2001NV2 - Streaming Settings; Remote Streaming Configuration

26

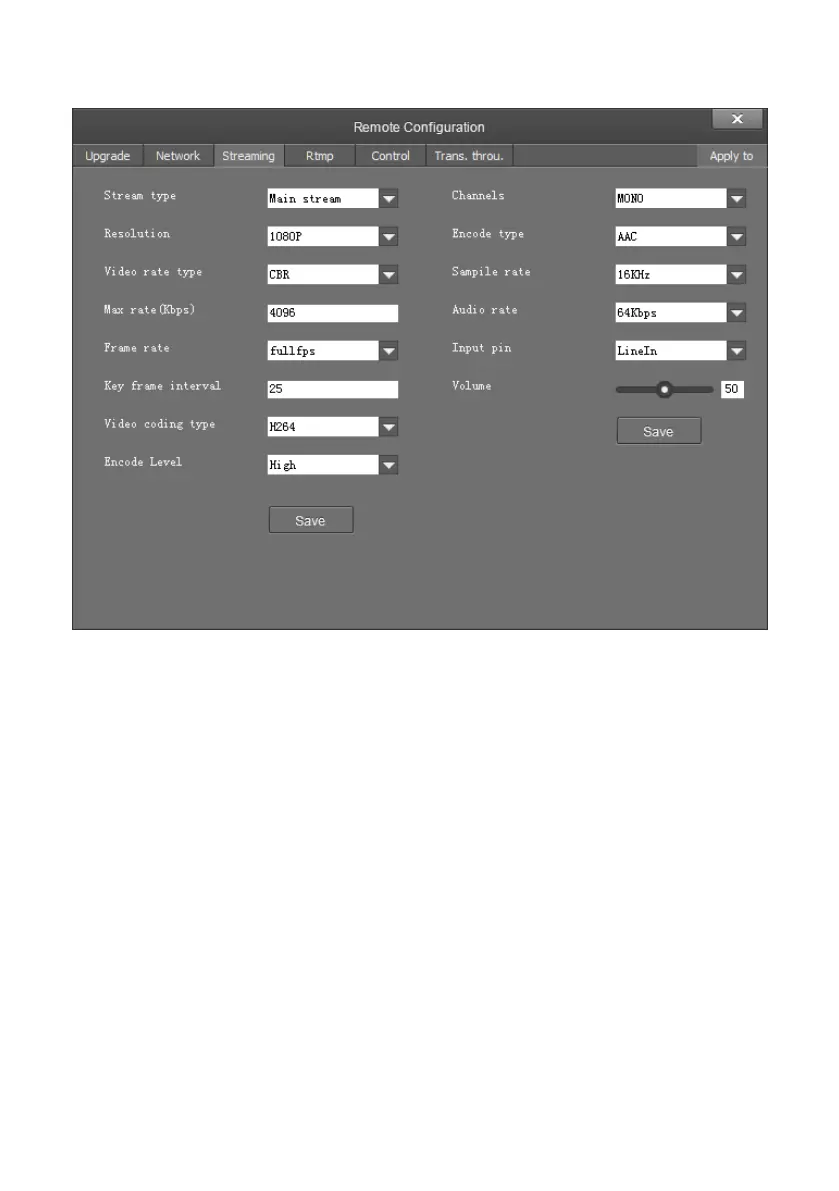

Streaming:
 Stream type: set the parameters of main stream, sub stream, third stream, fourth stream.
 Resolution: set among 4K(3840*2160),
1080P(1920*1080),720P(1280*720) .D1&QVGA(320*240), choose resolutions based on actual
requirements and capability of device. The higher the resolution is, the better network
requirements will be needed.
 Max.rate: configure max stream rate or adjustable stream rate.
 Frame rate: choose from different frame per second
 Key frame interval: configure the number of frames between the two key frames. The larger the
key frame interval is, the smaller the fluctuation of the byte will be, but the image quality is
relatively poor. Vice versa, the larger the fluctuation of the byte will be, the higher the image
quality will be.
 Video coding type: choose from H.264 and H.265.
 Encode level: choose from BaseProfile、MainProfil and HighProfile.
