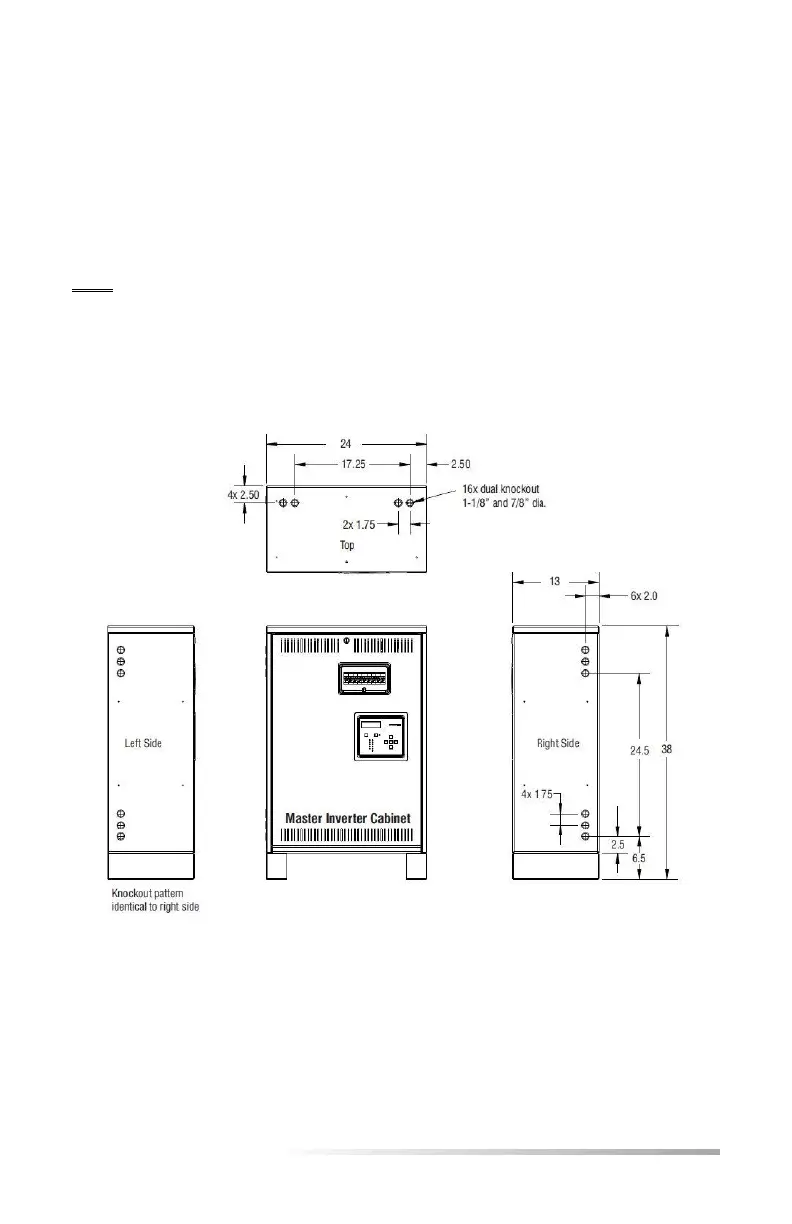

3.6 Cabinet Configurations (cont.)
Size 1 1KW
Size 2 1.6KW, 2.2KW, 2.8KW, 3.0KW
Size 3 4.0KW, 5.0KW, 6.0KW
Size 4 8.0KW, 10.0KW, 12.5KW
Note – Standard cabinet configurations for all sizes are shown. Other cabinet
configurations may be used when optional features are provided such as mixed
Input/Output voltages which requires isolation or auto-type transformers. These options
require additional cabinet space which may increase size.
