Dual Furnace Models M17705, N17706 & 17707 Iss.09 – 12/14
UNPACKING
EVERY EFFORT HAS BEEN MADE TO PACKAGE THIS UNIT FOR TRANSPORT AND TO ENSURE ITS GOOD
CONDITION ON ARRIVAL AT ITS DESTINATION.

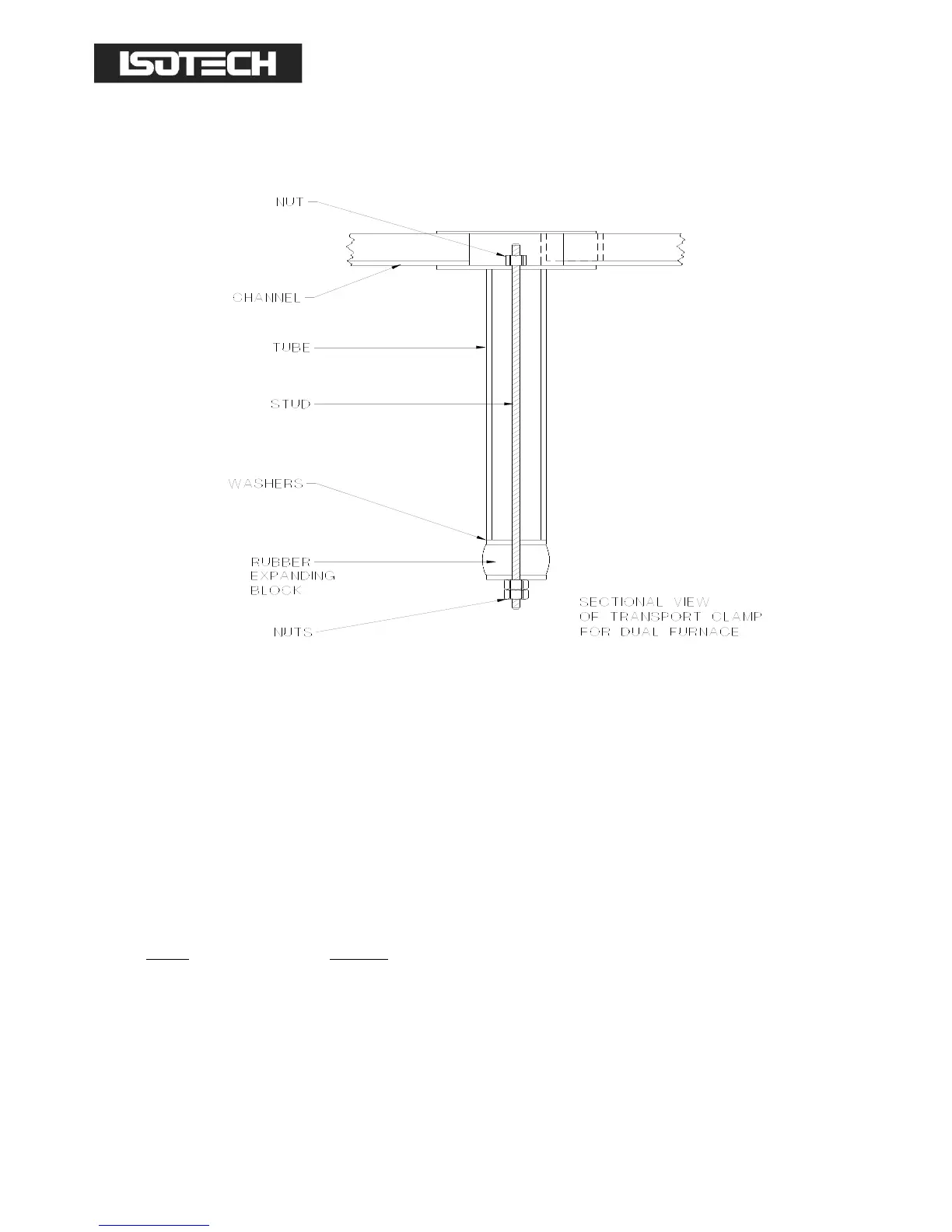

BEFORE COMMISSIONING IT IS NECESSARY TO REMOVE THE FURNACE CORE TRANSIT CLAMP. TO AVOID
DAMAGE PLEASE FOLLOW INSTRUCTIONS:
1. Slacken the central nut using the required tube spanner; the insertion of a screwdriver through the tube
spanner will prevent the central stud turning.
2. Remove the 3 screws securing the transit clamp to the top of the unit. Slacken each screw by degrees
equally.
3. Gently lift the transit clamp vertically; the attached tube and rubber securing block will thereby be extracted
from the furnace core.
4. Normal commissioning procedure may now be followed.
5. Keep the transit clamp and use it if the furnace is ever transported.
