www.123filter.com | +1 (678) 261-7611 | Support@123Filter.com Page 9

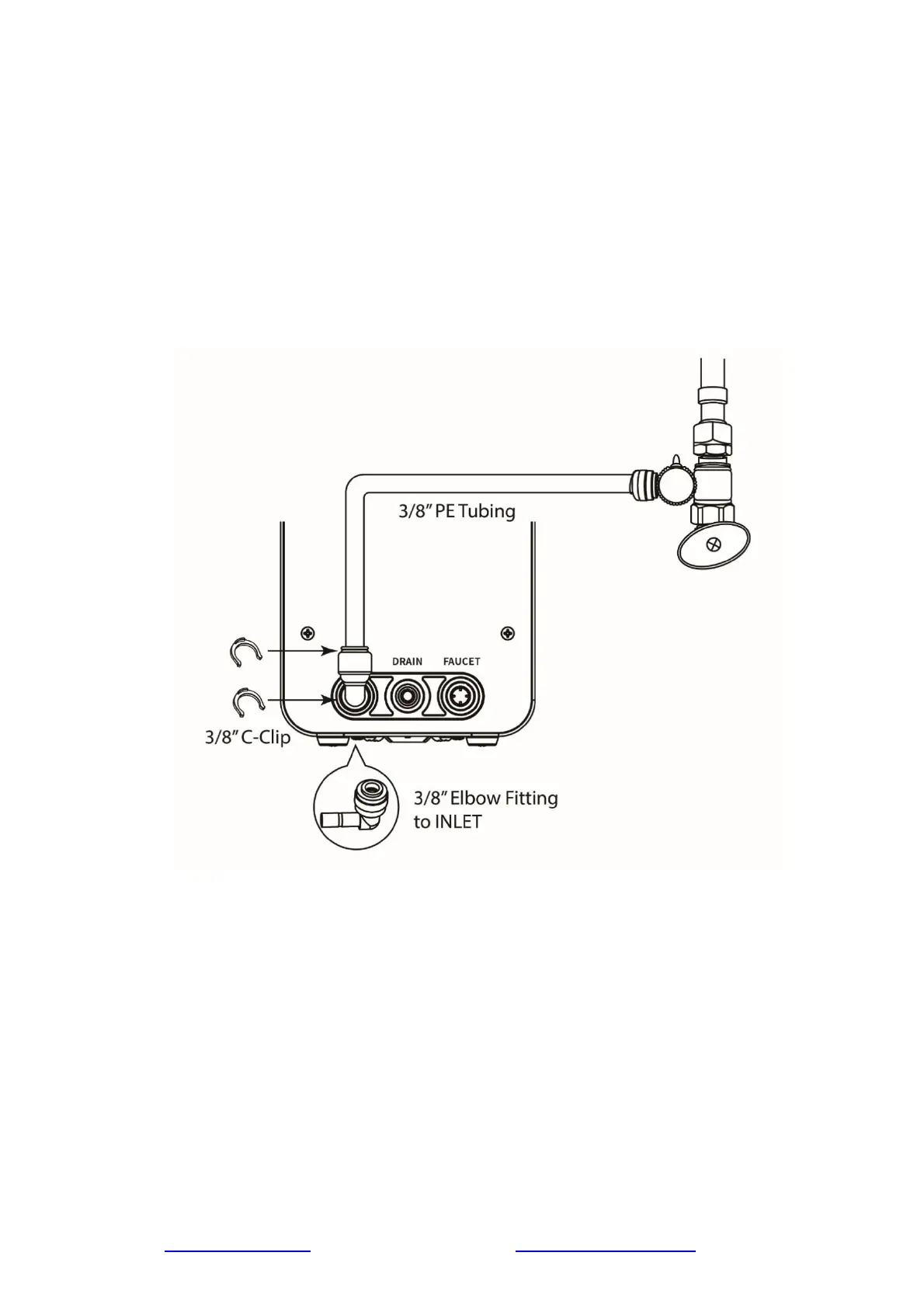

Inlet Water Pipeline Installation:
A. Cut the 3/8" PE pipe, which is connected to the feed water adapter, to the appropriate length
using a utility knife.
B. Insert the other end of the tube into the 3/8" elbow fitting, then plug the stem end into the
port marked "Inlet" at the top of the system. Secure the connection by inserting the enclosed
3/8" C-clip.
Drinking Faucet Pipeline Installation:
A. Cut the tubing with a utility knife to the desired length.
B. Insert the tubing into the last 3/8" elbow fitting, then plug the stem end into the port marked
"Faucet". Insert the C-clip to lock the connection.
C. Insert the other end of the tubing into the push-in fitting of the drinking faucet.
