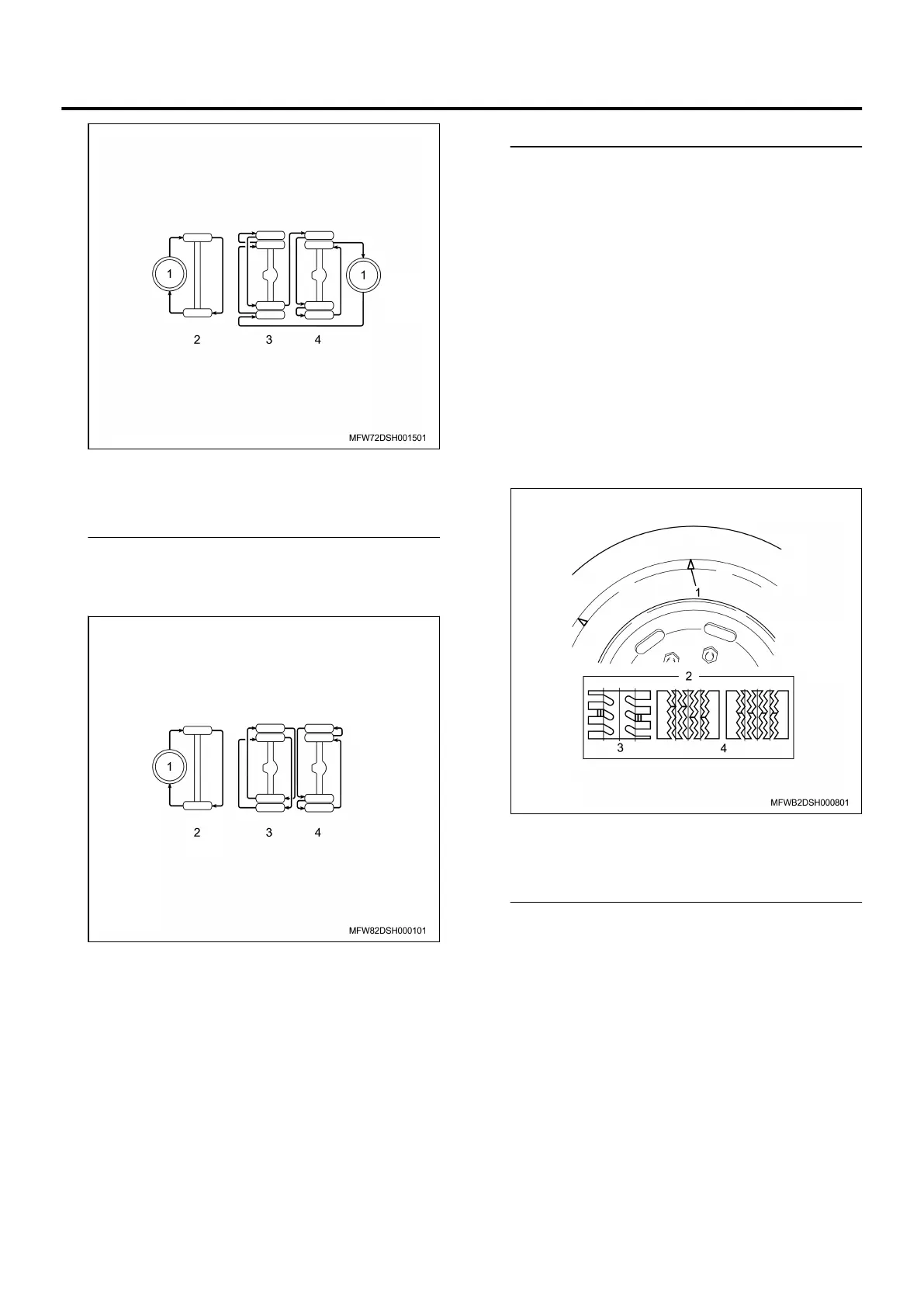

1. Spare tire
2. Front wheel
3. Forward rear wheel
4. Rearward rear wheel
Note：
・ 6 x 4, model with front and rear tires of
different radius
1. Spare tire
2. Front wheel
3. Forward rear wheel, drive axle
4. Rearward rear wheel
Note：
・ Inspection of wheel alignment
Inspect wheel alignment for the following cases.
When worn on the left front and right front tires differ.
When worn on the front tire treads is irregular.
When worn showing feather-like threads appear on the
front tire tread ribs or the block area.
When there is partial tread worn.
Note：
・ Tread wear indicator
Tires have tread-worn indicators that indicate the tire
replacement period. When the tire has reached its worn
limit, this appears as a groove-less band on the tread. This
indicator is a notice that it is time to replace the tire.
Tire wear limit： 1.6 mm { 0.063 in }
1. Tread wear indicator position mark (Example)
2. Tread wear indicator (Example)
3. Lug pattern
4. Rib pattern
Note：
・ Examples of tire abnormal worn and the main
causes
Functional Inspection (All models) 16C-7
To Next Page
