iSystem iC5000 Hardware Reference

 iSYSTEM, October 2016 21/69

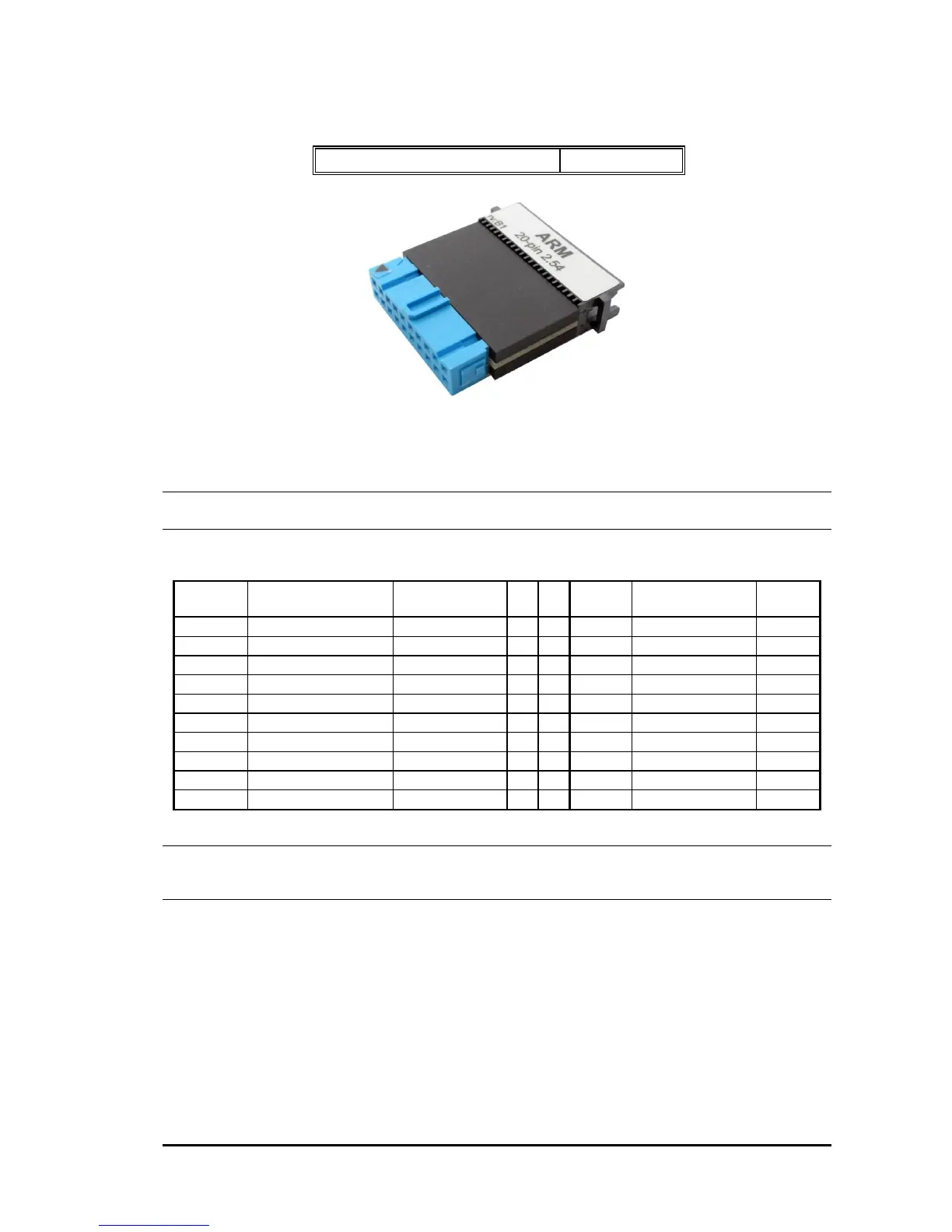

 20-pin 2.54mm ARM Cable Adapter
Ordering code
IC50111-1
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Cortex-M, Cortex-A,
Cortex-R or to the older ARM7and ARM9 based target. It connects to Debug/Trace module on one side and to
the target debug connector on the other side. It can be used for targets featuring 20-pin 2.54 pitch target debug
connector with ARM pinout.
When using this adapter to connect the development system to the target based on Cortex-M architecture,
double check that the pinout matches with the one from the target.
The following pinout is valid on the target side:
Signal
direction
Signal description
Signal
Pin
Pin
Signal
Signal description
Signal
direction
I
Reference voltage
VTref
1
2
NC
Not Connected
O
JTAG
nTRST
3
4
GND
Ground
O
SWD / JTAG
NC / TDI
5
6
GND
Ground
I/O / O
SWD / JTAG
SWDIO / TMS
7
8
GND
Ground
O
SWD / JTAG
SWDCLK / TCK
9
10
GND
Ground
I
Return TCK
RTCK
11
12
GND
Ground
I
SWD / JTAG
SWO / TDO
13
14
GND
Ground
I/O
System Reset
nSRST
15
16
GND
Ground
O
Debug request
DBGRQ
17
18
GND
Ground
I
Debug Acknowledge
DBACK
19
20
GND
Ground
20-pin ARM pinout
Note: 20-pin 2.54mm ARM Cable Adapter features resettable fuses on all pins except for pin 11 and 19. These
fuses protect debug signals against overcurrent and cycle back to a conductive state after the excessive current
fades away.
The adapter connects to the target via a 20-pin 2.54 mm connector (for example Yamaichi: FAS-2001-2101-2-
0BF). A target should feature a matching part (for example WÜRTH ELEKTRONIK: 612 020 216 21).
