iSystem iC5000 Hardware Reference

 iSYSTEM, October 2016 3/69

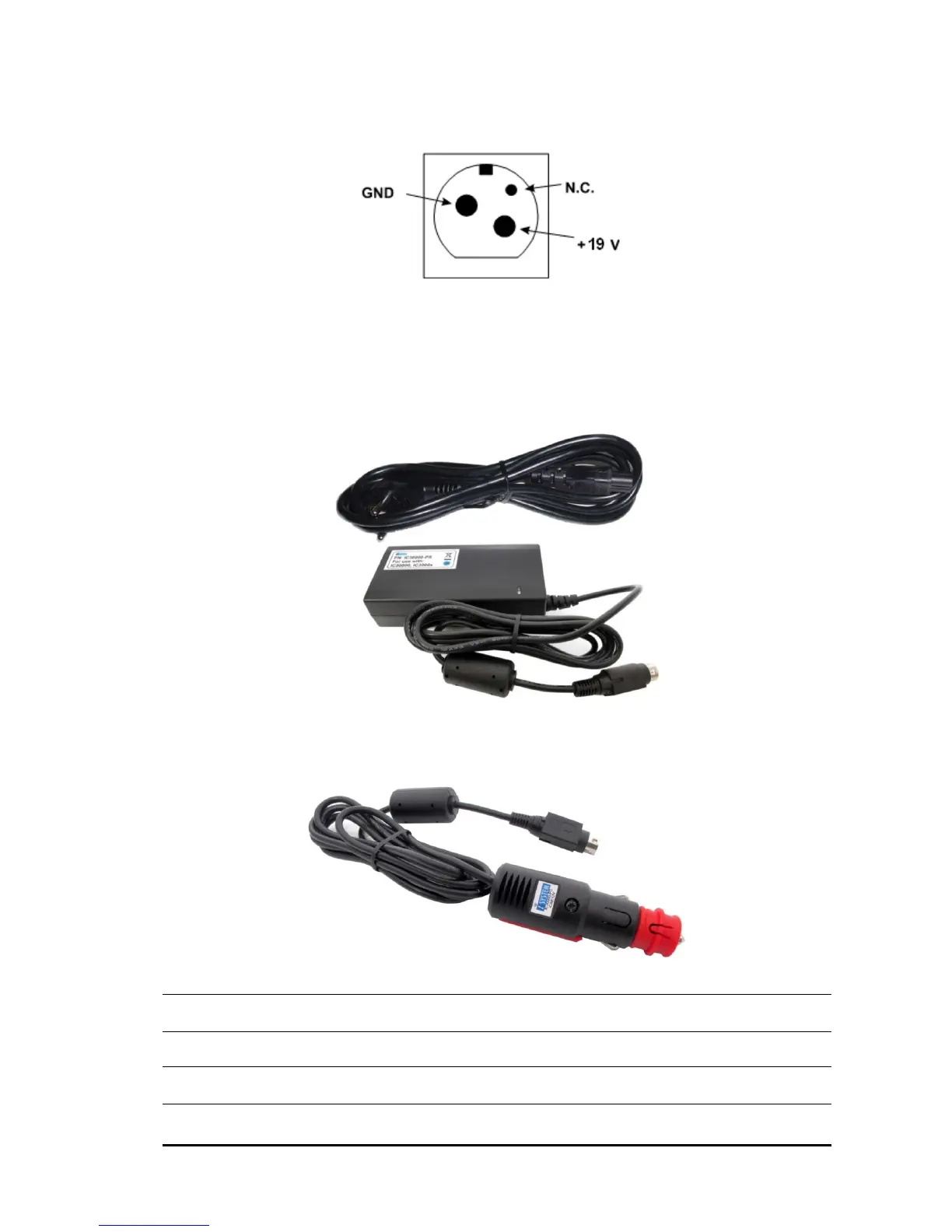

Powering the emulator
A round 3-pin power connector is located on the rear of the iC5000 base unit.
Power connector pinout, viewed from the rear of the Emulator
The iC5000 unit accepts a wide input voltage range from 10V to 24V DC, thus enabling the Emulator to work
also with a 12V or 24V car battery. Power consumption is up to 6W (iC5000 with Debug/Trace Module, and
cable adapter, without I/O module).
The necessary power supply (IC30000-PS) is delivered beside the iC5000 unit.
IC30000-PS
An optional 12V power supply for Car (cigarette lighter) plug can be ordered under the IC30000-PS-CAR12V
ordering code.
IC30000-PS-CAR12V
Note: Use only original iSYSTEM accessories for powering the iC5000. If you wish to use a power supply
different from the delivered one, please consult with iSYSTEM first.
Note: When powering the system, switch ON emulator before target; when shutting down the system, switch
OFF target before emulator!
