iSystem iC5000 Hardware Reference

 iSYSTEM, October 2016 66/69

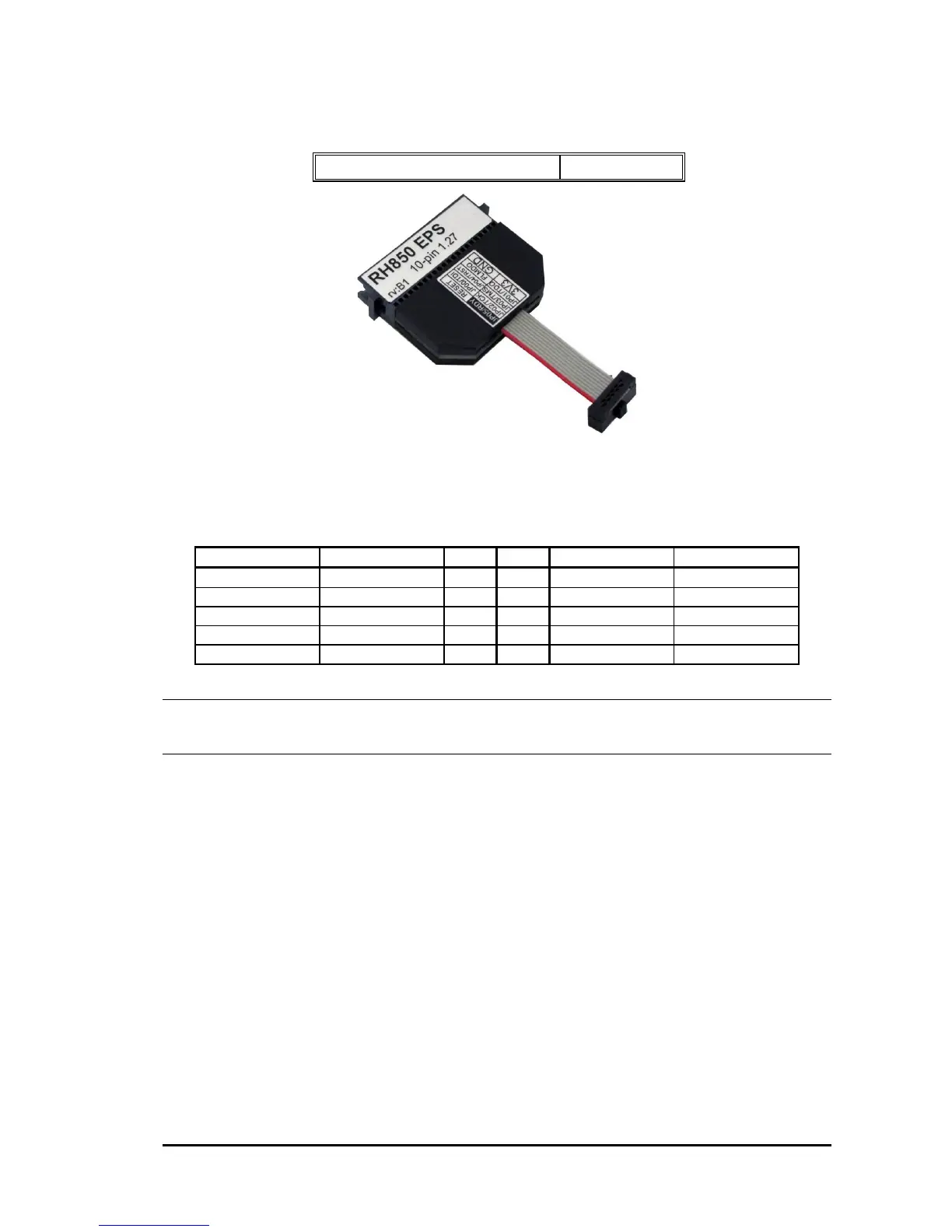

 10-pin 1.27mm Renesas RH850 Cable Adapter
Ordering code
IC50176-EPS
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Renesas RH850 based
target. It connects to Debug/Trace module on one side and to the target debug connector on the other side. It can
be used for targets featuring 10-pin 1.27 pitch target debug connector with the RH850 proprietary (EPS) pinout.
The following pinout is valid on the target side:
Signal direction
Signal
Pin
Pin
Signal
Signal direction
I
JP05/RDY
1
2
RESET
I/O
O
JP02/TCK
3
4
JP00/TDI
O
O
JP03/TMS
5
6
JP04/TRST
O
I
JP01/TDO
7
8
FLMD0
O
3V3
9
10
GND
10-pin Renesas RH850 proprietary (EPS) target pinout
Note: 10-pin 1.27mm RH850 Cable Adapter features resettable fuses on all pins except for pin 1 and pin 10.
These fuses protect debug signals against overcurrent and cycle back to a conductive state after the excessive
current fades away. A signal on pin 1 is protected via 22 ohm serial resistor.
The adapter connects to the target via a 10-pin 1.27mm connector (for example SAMTEC: FFSD-05-01-N). A
target should feature a matching part (for example SAMTEC: SHF-105-01-L-D-TH).
