= Air Fitting: The nailer should be equipped with a 1/4" NPT male plug for a ‘quick
connector’. To prevent accidental cycling even though disconnected, the tool
must always be connected to the air supply in such a way that all air pressure
in it is released when the coupling is disconnected.
CAUTION:
=Allairlinecomponents(includinghoses,pipe,connectors,lters,&regulators,
etc.) must be rated for a minimum working pressure of 150 psi / 1034 kPa /
10.3 bar or 150% of the maximum system pressure, whichever is greater.
= Disconnect the tool from the air supply before performing maintenance,
clearing a jammed fastener, leaving the work area, moving the tool to another
location, or handing it to another person.
CONNECTING THE TOOL
1. Turn the compressor on.
2. Set the regulator to proper pressure for the size and type of fasteners being
used.
3. After reading and understanding this entire manual, connect tool to air supply.
CAUTION:
= Keep the tool pointed away from yourself and others at all times.
= Do not load fasteners with air connected, safety or trigger depressed.
= Always wear approved safety glasses and hearing protection when preparing
or operating this tool.
= Never use a tool that leaks air or needs repair.

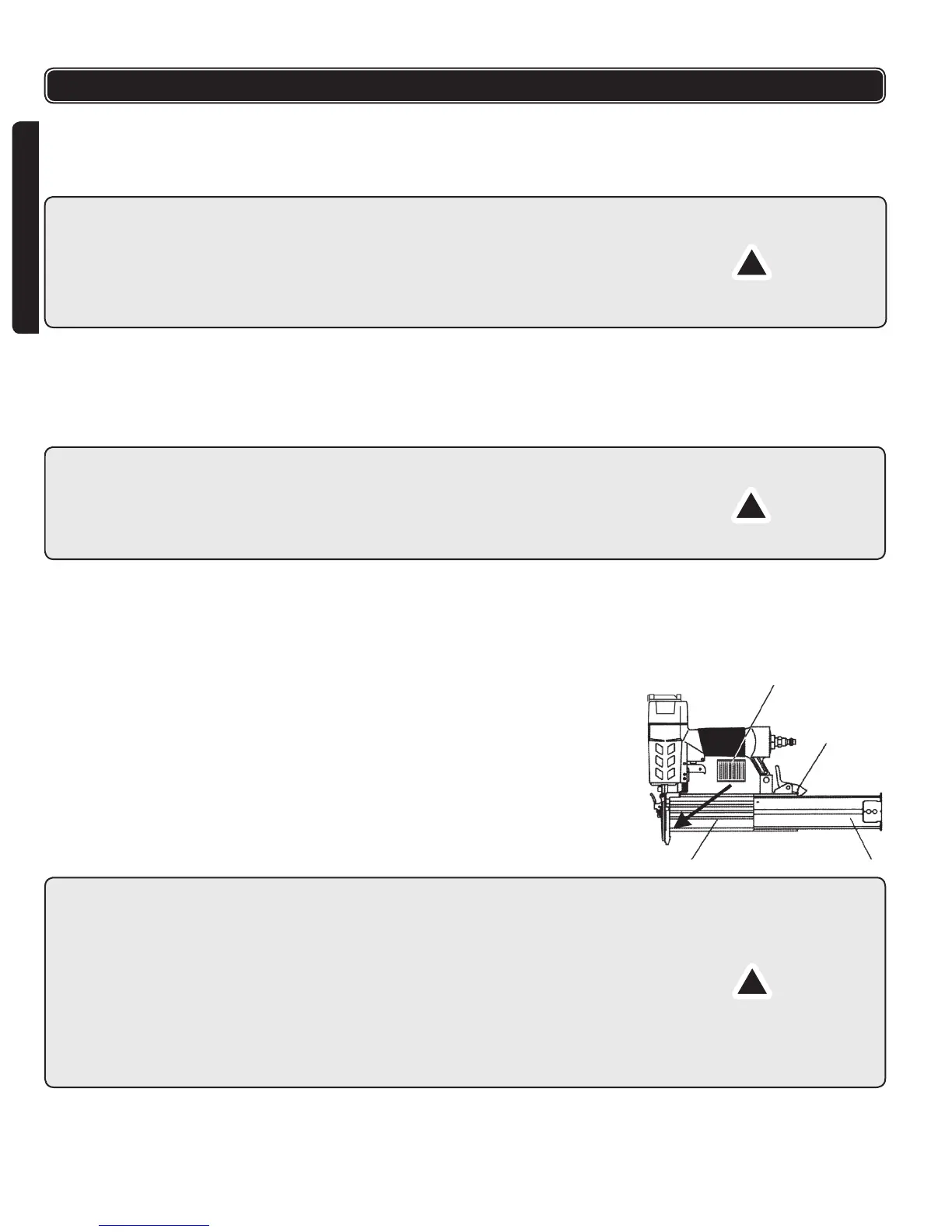

LOADING THE FASTENERS
1. Disconnect the tool from the air supply. Do not load or adjust the tool if it is
connected to the air supply.
2. Depress the LOCK (64) to release the MOVABLE MAGAZINE (53) and pull the
magazine out fully as shown.
3. Place a full stick of the desired type and size of fasteners on the FIXED
MAGAZINE (58). Up to 100 fasteners can be loaded in the magazine.
4. Push the MOVABLE MAGAZINE UNIT (53) forward until the LOCK (64)
clicks and locks it.
5. The tool is ready to operate.
OPERATING THE TOOL
1. The depth to which a brad is driven is determined by the supplied air pressure.
Test re a brad into a sample of the material you will be working on and check
depth. If a change is desired, adjust the regulator to supply air at a higher or
lower pressure. Test re another fastener and check depth again. Adjust as
necessary.
CAUTION:
= Keep tool pointed in a safe direction at all times.
= Never attempt to drive fasteners into materials too hard to penetrate, at too
steep an angle, or too near the edge of the workpiece. The fastener can
ricochet causing personal injury.
= Disconnect tool from air supply before doing any disassembly, maintenance,
clearing a jammmed fastener, leaving the work area, moving the tool to
another location, or handing the tool to another person.
= Clean and inspect the tool daily. Carefully check for proper operation of trigger
and safety mechanism. Do not use the tool unless both the trigger and the
safety mechanism are functional, or if the tool is leaking air or needs any other
repair.
2. Make sure the air pressure is within the limits mentioned in SPECIFICATIONS.
3. Hold the BODY (22) and press DRIVE GUIDE (50) against the work surface,
being sure the tool is perpendicular to the surface.
Fixed Magazine
Movable Magazine
Lock
Brads
SETUP & OPERATION
!
!
!
