5. OPERATION ILLUSTRATION

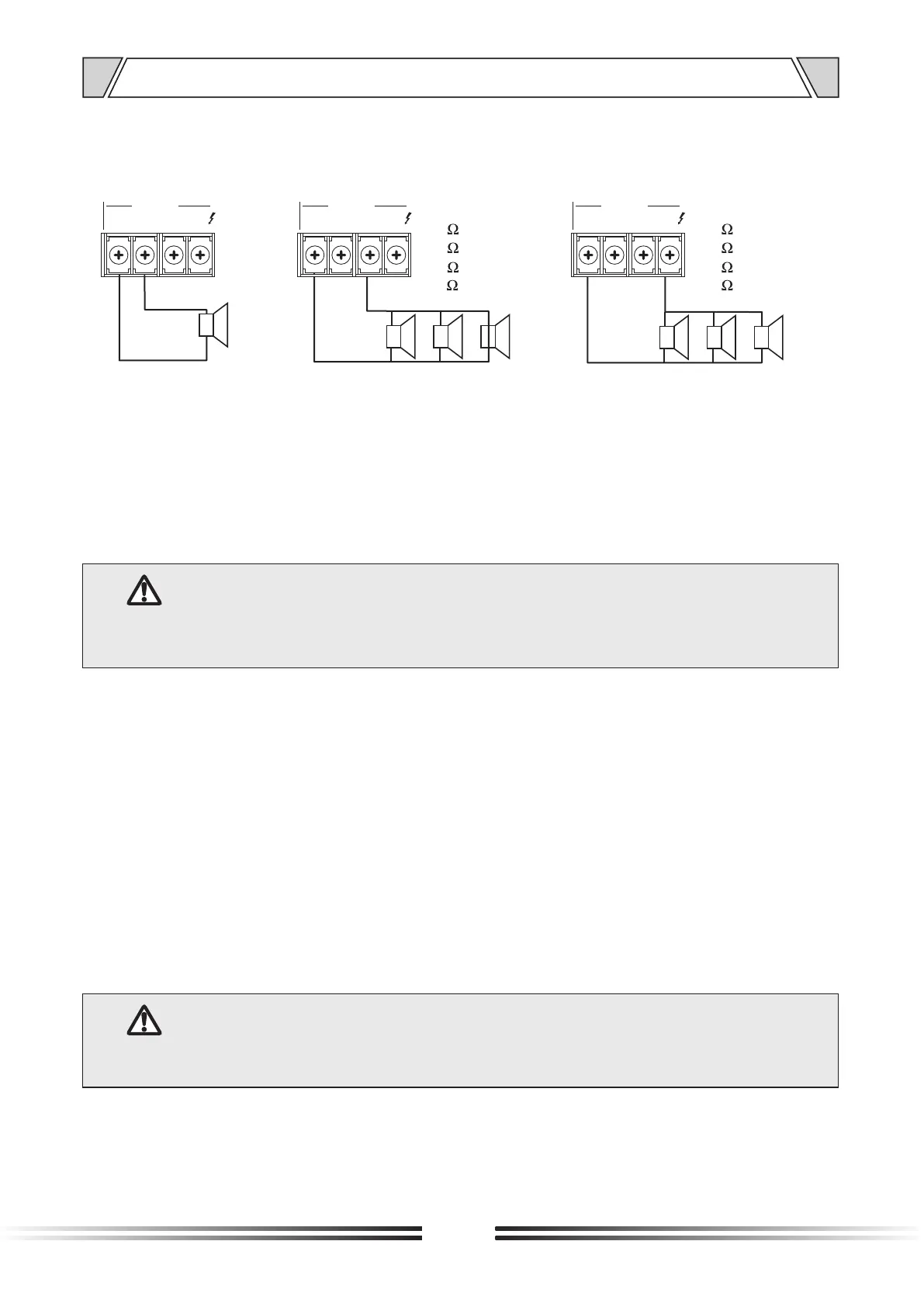

1. Connect the speakers:
1. Before connecting the speakers, please make sure that the equipment is powered off. In the
case of power on, may have the risk of electric shock.
2. It is not possible to use 4~16Ω 70V / 100V terminals at the same time
3. Please make sure there are no applied load to the speaker cables.
4. During the installation of speakers, please make sure that the sum of the rated input power
of the speakers to be connected is less than rated power of equipment.
/ .
2.Connect external devices
①Please ensure that the equipment and all equipment will be connected are powered off.
②Using the corresponding cable to connect this equipment and other external equipment.
:
3.Connect the power line and turn it on:
①Please make sure that the power switch of equipment and its connected equipment are
turned off (in the OFF position).
②Turn the volume knob to the left
③Connect the supplied power line to the AC IN interface
④Plug the power line into the applicable socket
⑤Turn on the connected equipment (CD player, etc.), and then turn on the equipment.
Note:
1.Before powering on, please check and make sure there is no problem with the cable and connection.
2.When you turn off the system, turn off the equipment, and then turn off the connected equipment.
WARNING:
Be sure to attach the supplide terminal cover after conncection completion. Because high voltage is
applied to speaker terminals, never touch terminals to avoid eletric shock.
OUTPUT
100V
70V
COM
4-16Ω
4~16Ω
70V LINE
OUTPUT
100V
70V
COM
4-16Ω
100V LINE
OUTPUT
100V
70V
COM
4-16Ω
40
(TI-1206S)
Total impedance
20
(TI-2406S)
14
(TI-3506S)
9.8
(TI-5006S)
83
(TI-1206S)
Total impedance
41
(TI-2406S)
28
(TI-3506S)
20
(TI-5006S)
