Function and Features
Copyright ©ITECH Electronic Co., Ltd. 30
Note
DO not disconnect the wires if remote sense is not used. Doing so will cause erratic behavior and may
damage the power supply under certain conditions
2. Connect the the positive and negative terminals of the front board to the device under
test.

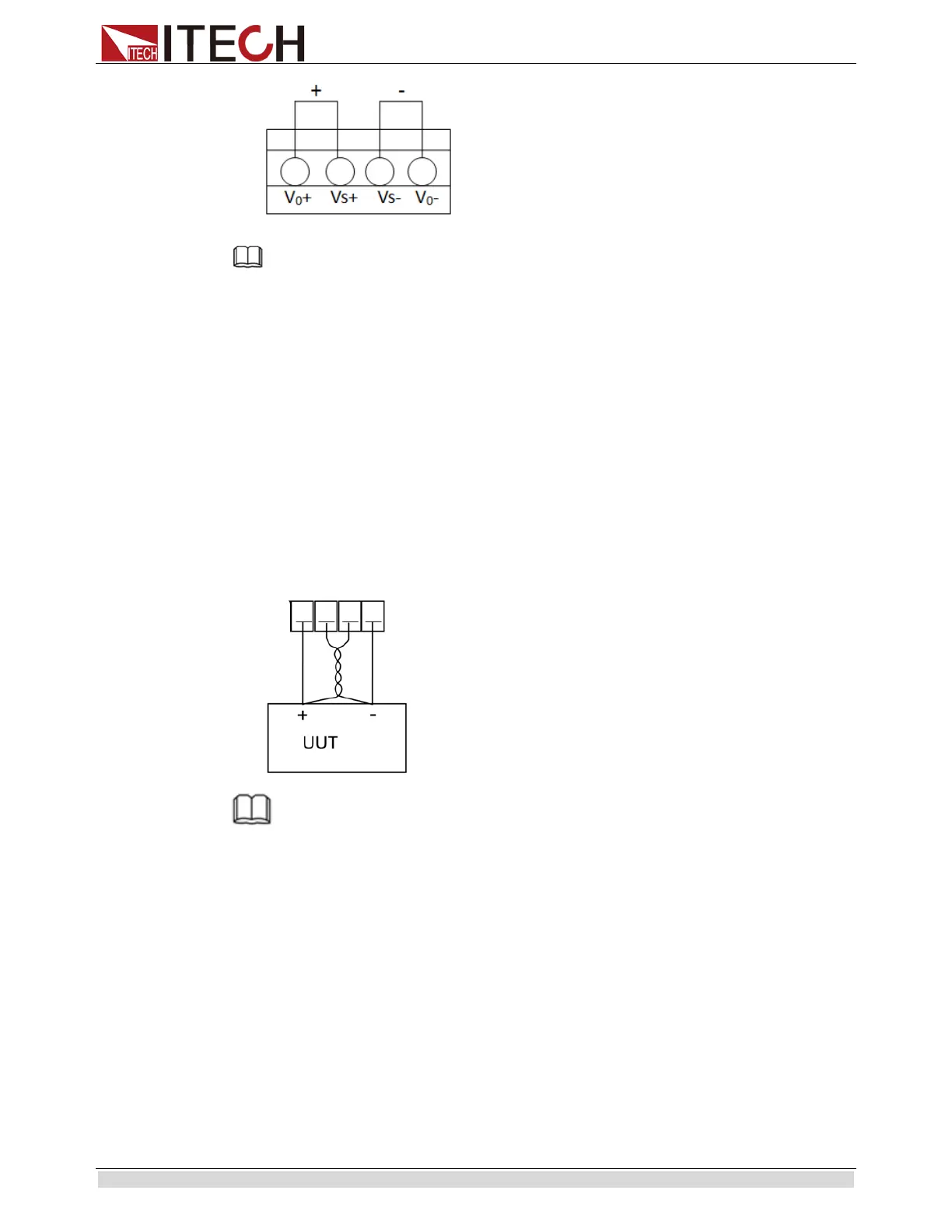

Use remote sense:
Disconnect the wires between “+, -”pins if you want to use remote sense function.Then
lead a wire from S+, S- pins and connect to the under test objects.
1. Disconnect the wires/short clips between Vo+ and Vs+, Vo- and Vs-.
2. Connect the S+ to the DUT’s positive (+) terminal, and connect the S- to the
DUT’s negative (-) terminal.
3. Connect wires from Vo+ , Vo- to the device under test.
NOTE
In order to ensure the stability of the system, using armored twisted pair cable between the remote
sense terminal of IT6500 and load.
Please note that the positive and negative polarity when wiring, otherwise it will damage the
instrument!
3.15 Analogue Interface
IT6500 series power supply have a DB25 analog interface.It can enable you to control
0-100% voltage and 0-100% current with a adjustable voltage or resistance. Besides, you
could also monitor the output voltage and current with a 0-10V or 0-5V voltage.
This function has several modes:
10v-M
5v-M, used for selecting the 10V/5V monitoring mode
10v/10k-P
5v/5k-P, used for selecting the 10V/10K or 5V/5K setting mode
V-P
R-P, used for selecting the voltage/resistance setting mode
On
Off, used for switching on/off the analog quantity interface function
