ITech IT6800A Series - VFD Description

Quick Start
Copyright © Itech Electronic Co., Ltd. 8
below picture.

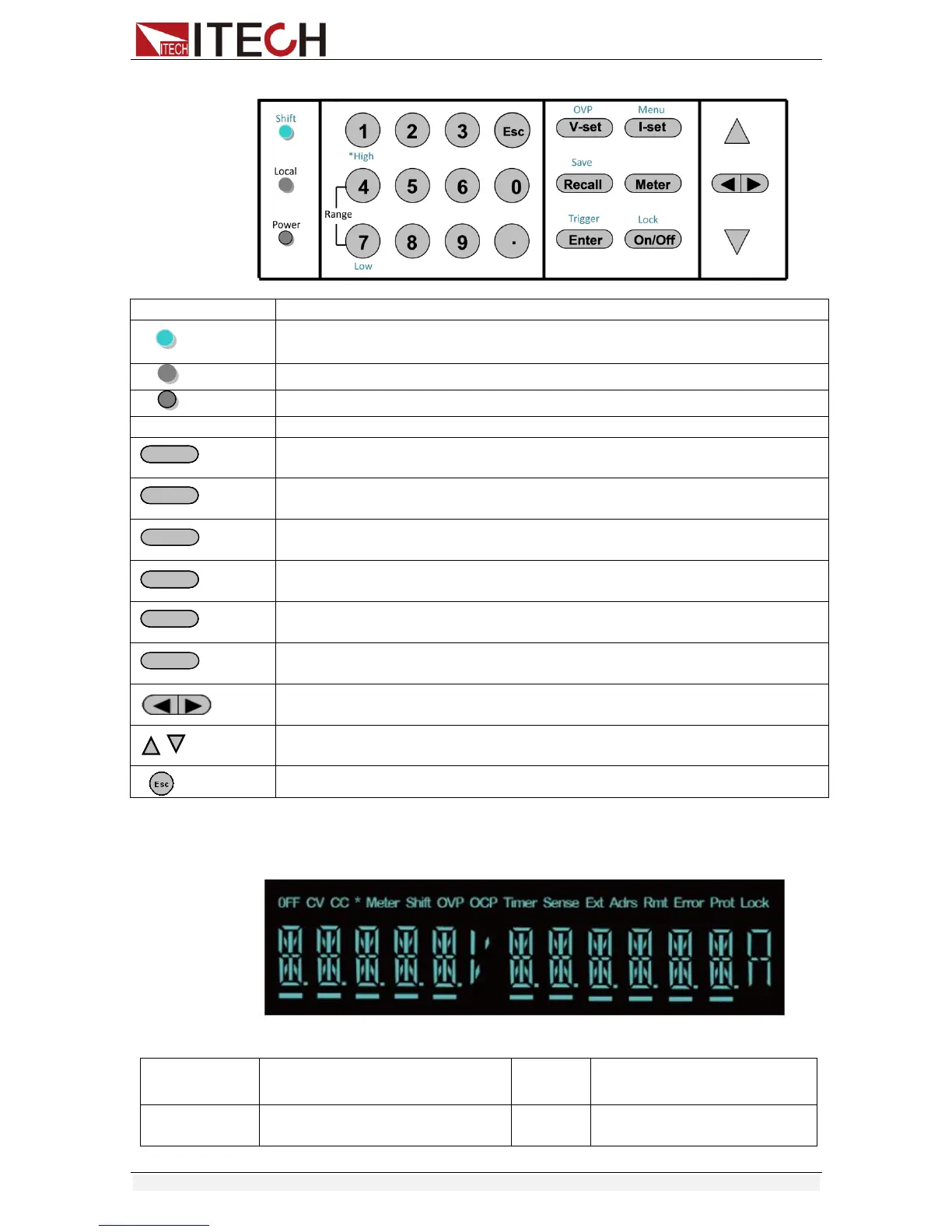

Keys
Name and the function
Shift
Compound key, co-work with OVP、Menu、Save、Trigger、Lock、
and numeric key 4 and 7 to switch the dual-range
Local
Local switch key, switch from remote mode to local operation mode
Power
Power on key
0-9
Numeric keys
OVP
Voltage set key, set the output voltage/over voltage protection point
for the power supply
Menu
Current set key, set the output current/menu function key, to set the
relevant Parameters for the power supply
Save
Callback key to call up a set value of system parameters already
stored / storage key, to save system parameter settings
Meter key, to switch from value set panel and the actual output value
display
Trigger
Enter key, to confirm the number entered and operation / trigger
button, which is used to trigger the List test.
Lock
Output on (off) keys, control power output state / keypad lock function
keys, used to lock the panel buttons
Left and right movement keys, used to set the value, to adjust the
cursor to the specified location
Up and down keys, used to select an item in the menu or increase
(decrease) the output voltage or current values
Escape key
2.4 VFD Description
char
Function
char
Function
OFF
Output is off
Timer
Output on timer function is
enabled
V-setV-set
I-setI-set
Recall
MeterMeter
EnterEnter
On/Off
