Waveform Display Function
Copyright © ITECH Electronic Co., Ltd. 69
Operating steps
1. Press [Scope] to enter the waveform display interface.
2. In the waveform display interface, press the soft key corresponding to

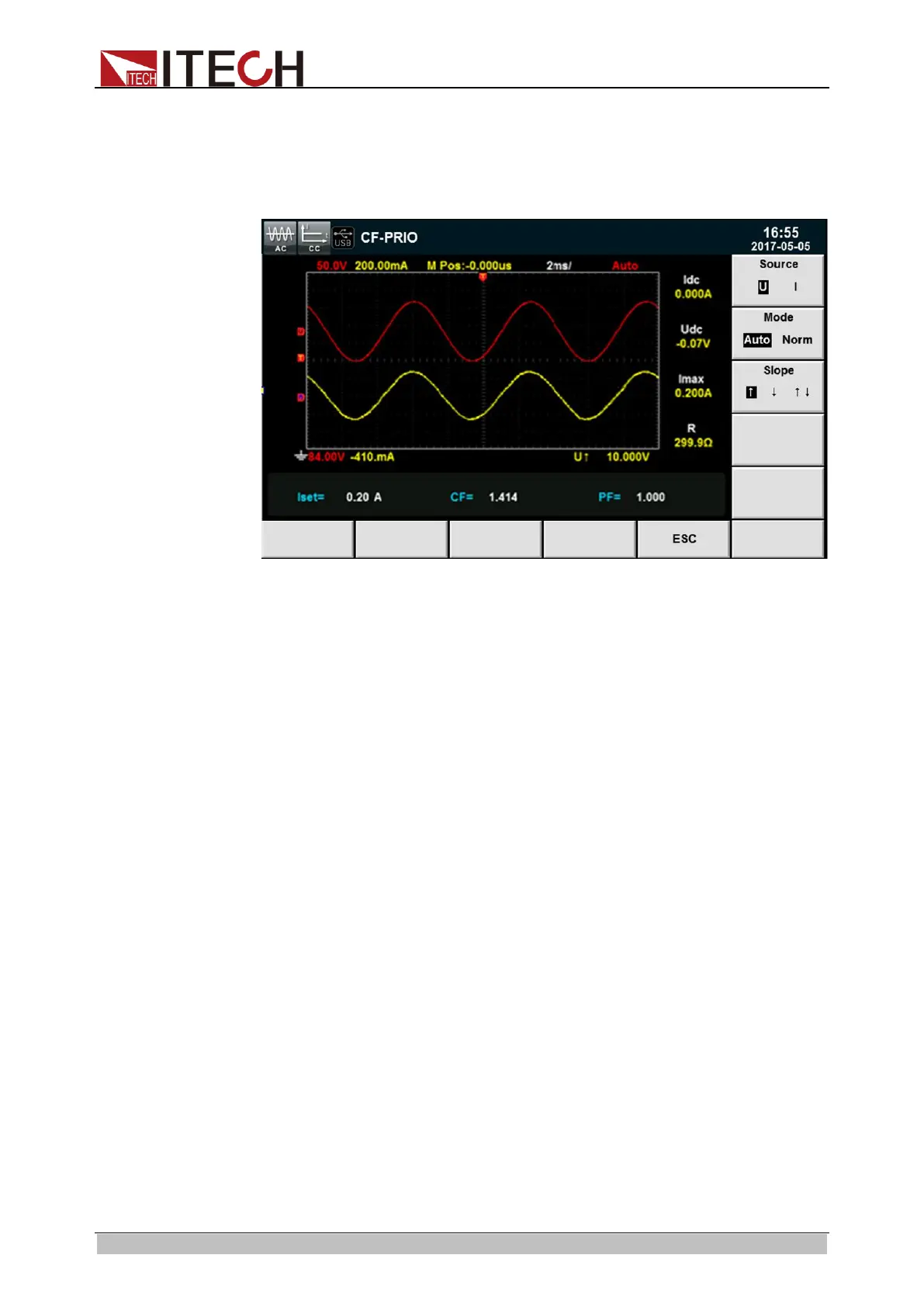

[TIRG SETUP] to enter the trigger setting interface, as shown below.
3. Press the soft key corresponding to the parameter on the right side and
select the required trigger configuration. Refer to the Trigger Waveform for
details.
 Source (trigger source): select the voltage or current as the trigger
source.
 Mode (trigger mode): select the Auto or Normal mode.
 Slope (trigger slope): select the rising edge, falling edge or
rising/falling.
