10

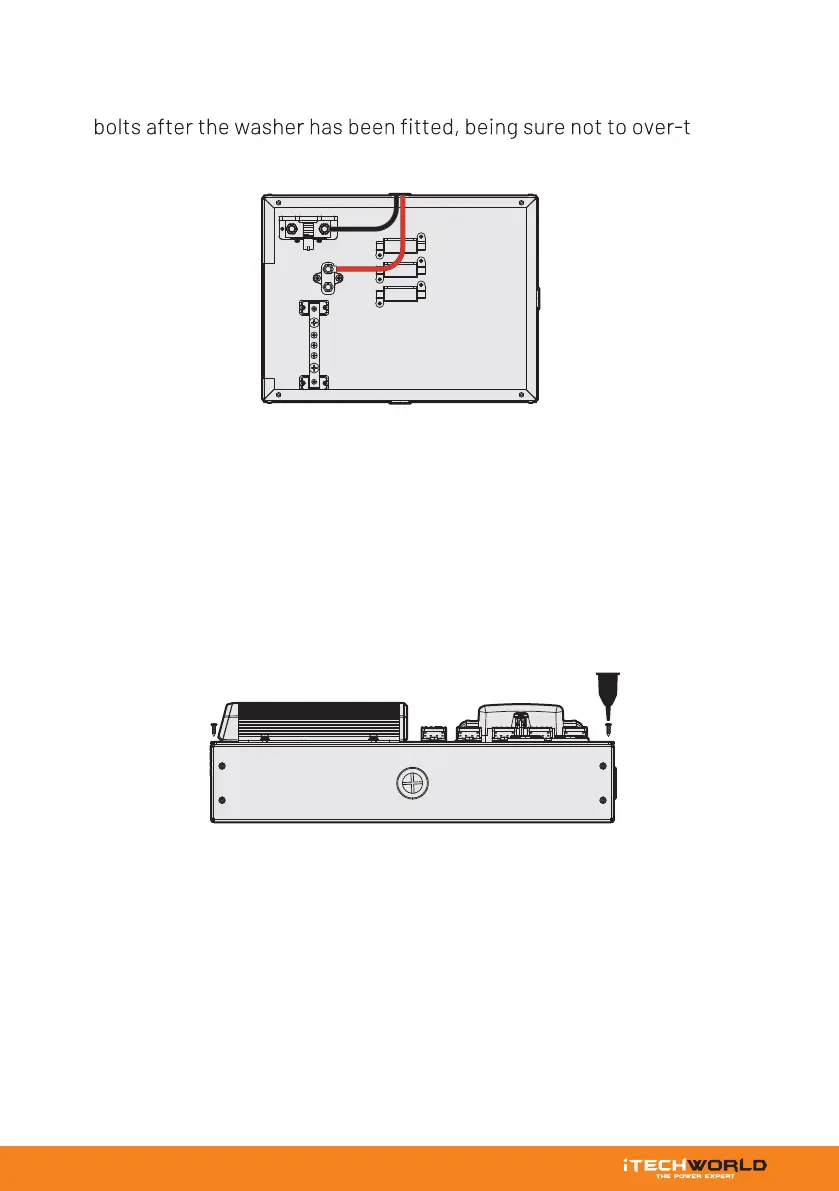

Attach the negative cable to the B side of the shunt, then attach the
positive cable to the positive terminal as shown below. Fasten the 2
ighten.
Tuck cables in under the Control Hub lid, lowering the lid carefully onto
the Control Hub, ensuring the lid is oriented correctly. Fasten the 4
provided screws, being sure not to over-tighten.
4.
5.
