iTechworld iTECHDCDC25 - Battery Monitor & Setup

12
Enter the settings screen by pressing and holding the SET button.
Enter the SET1 interface to set the overvoltage value and adjust through the

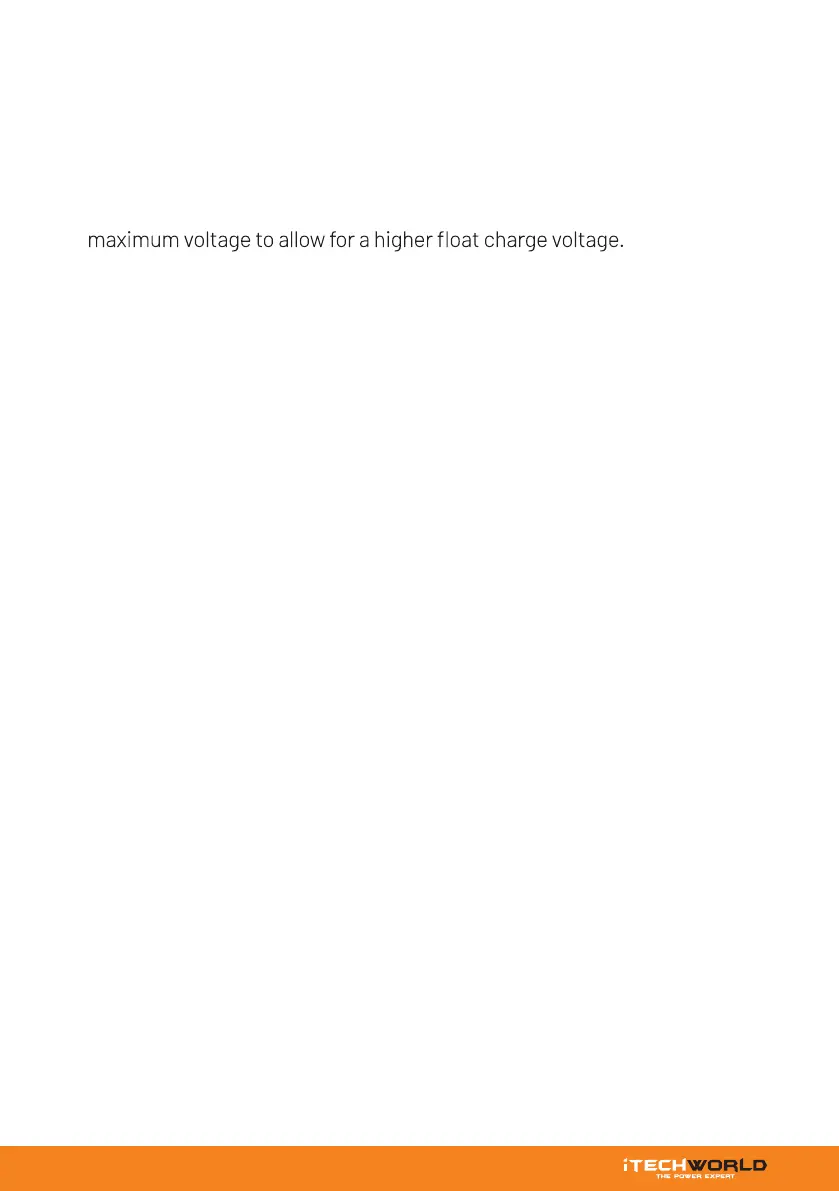

up and down arrows. This value should be 0.5V above the battery’s stated
After setting the overvoltage value, short press the SET button to enter the
SET2 interface for the undervoltage settings. As before, adjust the values with
the up and down arrows. This value represents the voltage at 0% capacity.
Please be aware that this number will vary depending on battery type.
Recommended settings for lithium batteries are as follows:
- Lithium: 10.5V
After setting the undervoltage value, short press the SET button to enter the
SET3 interface for overcurrent settings. You must match this value with the
battery's rated maximum current.
After setting the overcurrent value, short press the SET button to enter the
SET4 interface for capacity settings. Set this value according to the actual
capacity of the connected battery.
After setting the capacity, short press the SET button to enter the SET5
interface for percentage settings. Set the current battery percentage to 100%.
Note: We recommend charging your lithium battery to 13.5V before setting your
battery monitor to 100%.
After setting the percentage value, short press the SET button to enter
the SET6 interface for backlight brightness settings. Set this value to your
preferred brightness.
After setting the backlight brightness, short or long press the SET button to
exit the setting interface and return to the home screen.
