iTechworld iTECHDCDC25 - Battery Installation

9

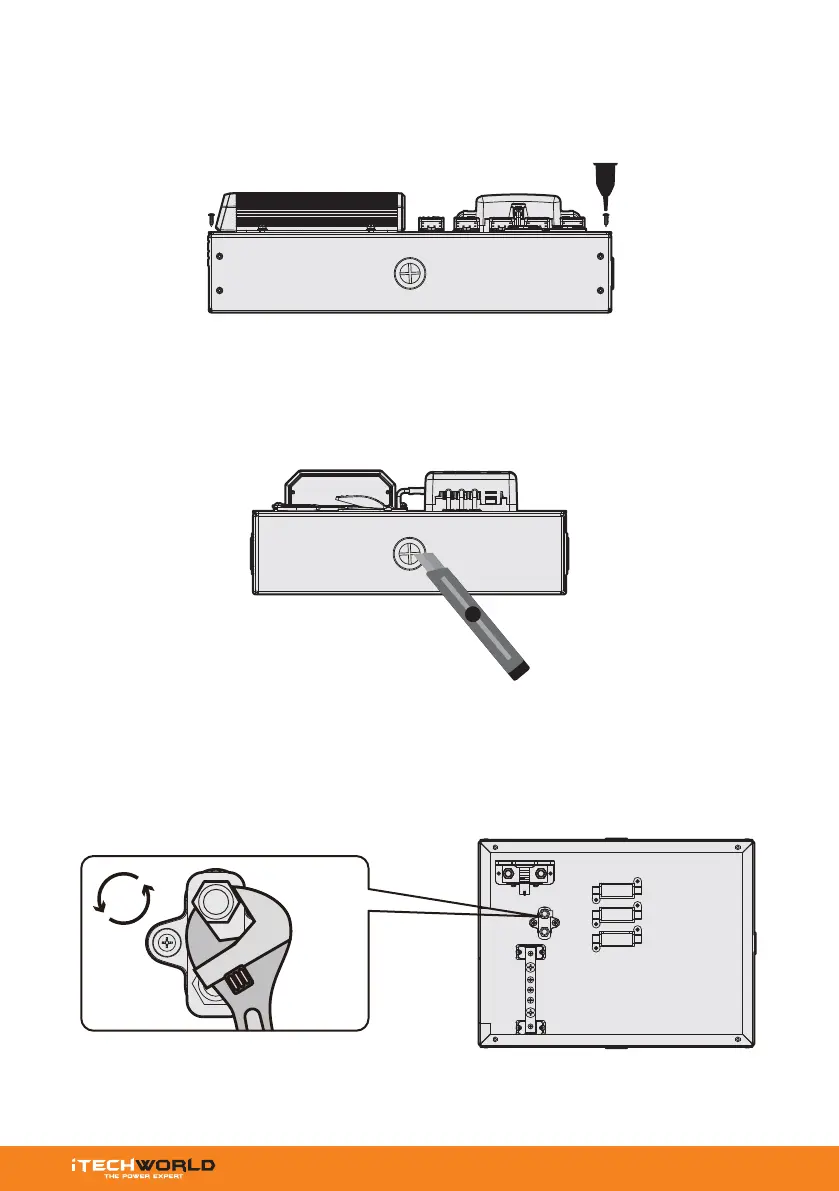

Remove the 4 screws and open the Control Hub.
Using a knife, cut the grommets on the side or bottom of the unit that
your battery wires will run through.
Remove the bolt and washer off both the positive and negative terminal
posts on the rear of the control hub.
1.
2.
3.
BATTERY INSTALLATION
