OPERATION
Note: Ensure the unit is disconnected from the battery prior to attempting
any wiring.

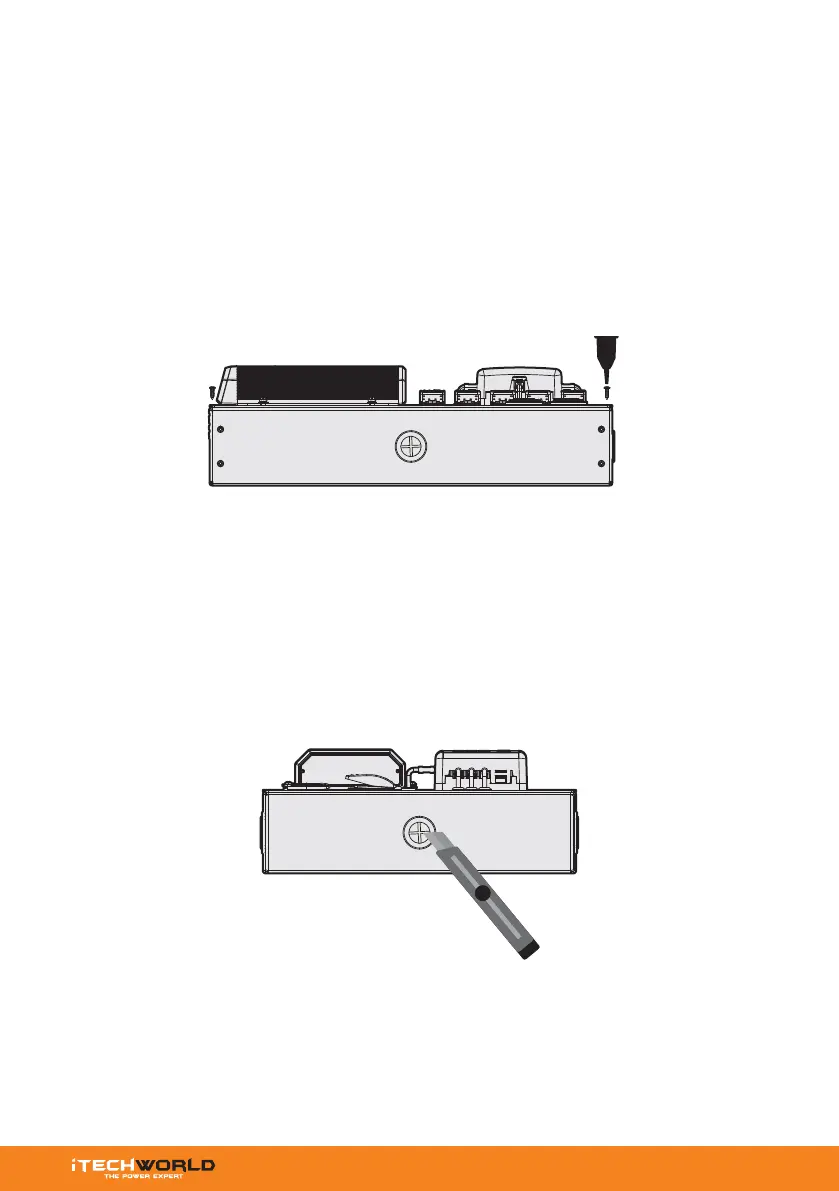

Remove the 4 screws and open the Control Hub.
For wiring in switches, select the appropriate sized spade and ring
terminal for your accessories wiring.
Using a knife, cut the grommets on the side or bottom of the unit that
your accessory wires will run through.
Strip around 1cm of insulation from each cable select and crimp the
appropriate sized spade terminal to your positive wire and the ring
terminal to the negative wire.
WIRING IN SWITCHES:
1.
2.
3.
4.
