9. DRAIN

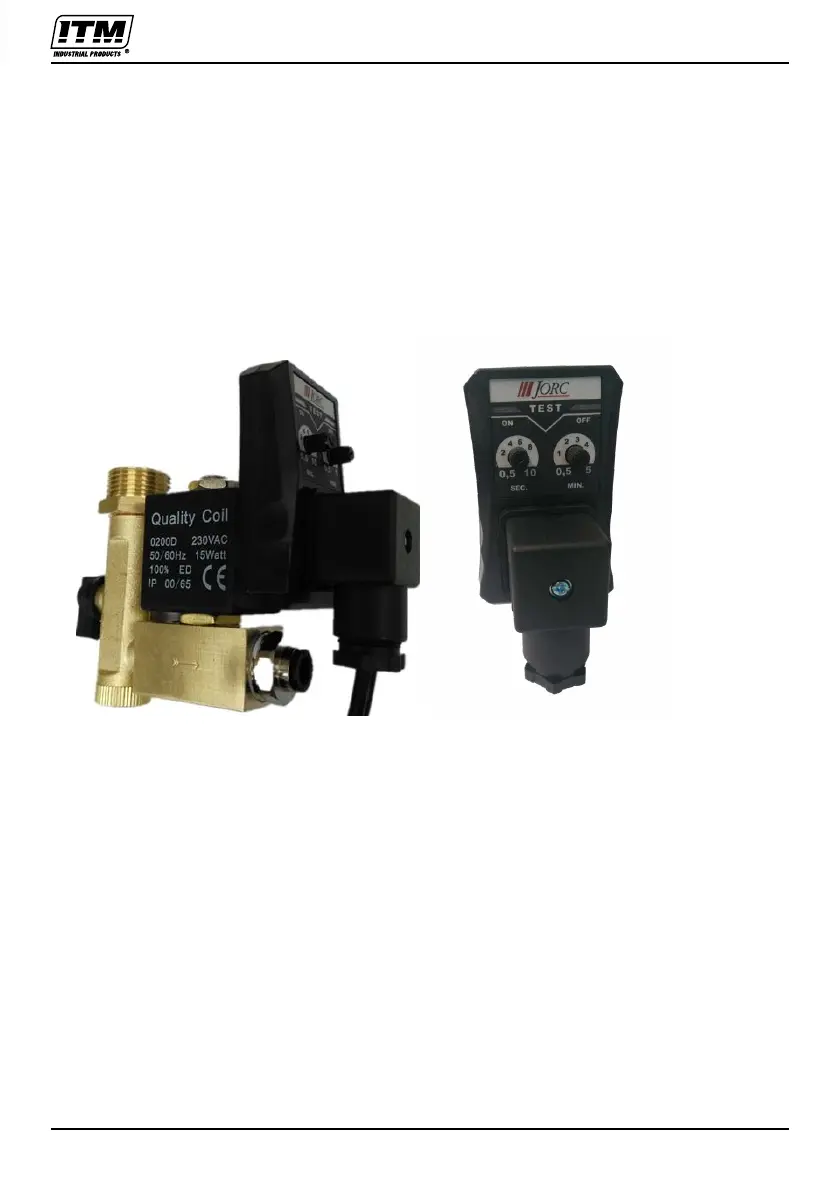

Time Drain, model MIC-A which has a built in timed electronic circuit, and an assisted
drive solenoid valve, which opens at pre-established intervals.
The opening time is limited to 1 second, which allows limiting compressed air waste to a
minimum.
Time setting of time Drain, model MIC-A：
1. Switch on the power. Note: the voltage must comply with the voltage mentioned on the
coil.
2. MIC-A will start with its pre-set time setting of 0.5 min OFF and 1 sec ON time.
3. You can change the pre-set values to anything ranging from 0.5-10 sec and 0.5-5 Min.
4. To change the ON time simply rotate the black knob, the point of the arrow is the
drainage time, then the change is saved.
5. To change the OFF time simply rotate the black knob, the point of the arrow is the
drainage interval, then the change is saved.
