5. INSTALLATION
5.1 DRYERS ROOM
 FLOOR
The floor must be even and of industrial type.
Remember the total weight of the machine when positioning it.
 VENTILATION
The choice of an appropriate room will prolong the life of your dryer; the room must be
spacious, dry, well ventilated and free from dust.
The operating conditions to be complied with are the following:

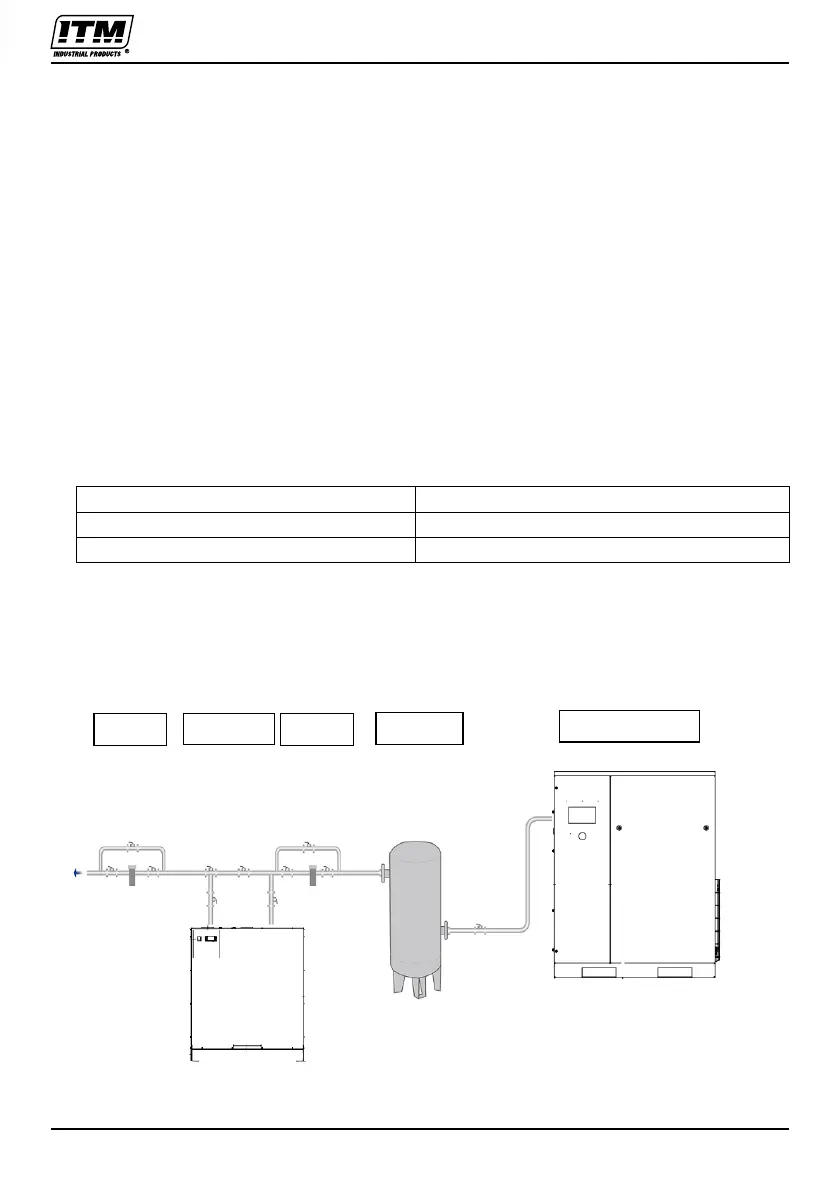

5.2 EXAMPLE OF INSTALLATION
Min. room temperature
：
>=5°C
Min. temperature of incoming air
：
10°C
Max. room temperature： <=45°C Max. working pressure： 13bar
Max. temperature of incoming air
：
60°C
Air Compressor
Receiver
Filter
X dryer
Filter
