ITRON MC3 User Manual

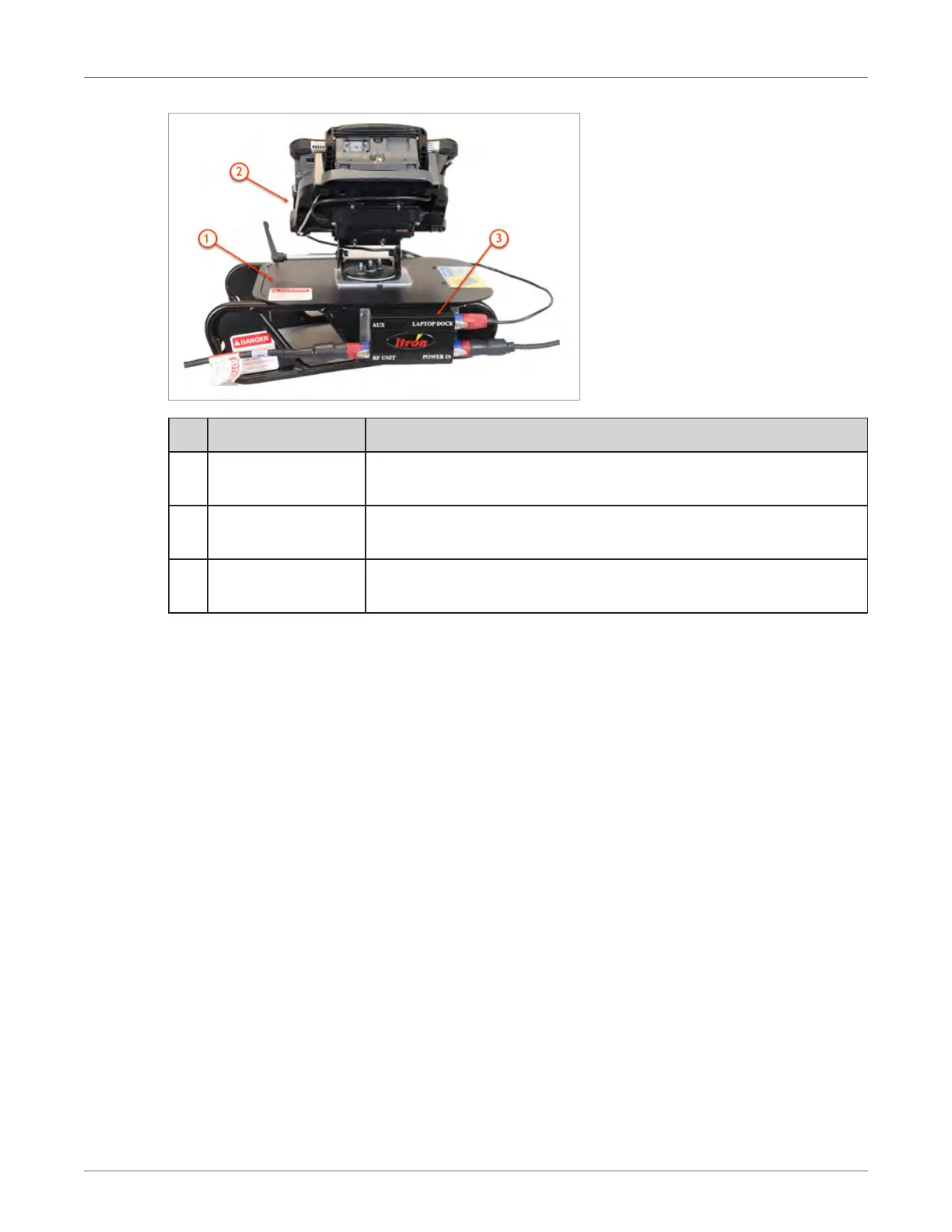

ID Item Description
1 Mobile Collector
sled
Attaches to the vehicle passenger seat with the seat belt.
2 Mobile Collection
vehicle dock
Attaches to the Mobile Collection computer and provides a secure base
for the computer while in the vehicle.
3 Junction box Provides power to the various Mobile Collection components. Attach the
junction box prior to first use.
Junction Box
The junction box distributes power from the vehicle to the MC3 or MC3Lite radio and Mobile
Collection computer.
Install the junction box on the sled or pedestal mount before you install the Mobile Collection
system for the first time. The junction box must always remain attached to the sled or pedestal.
Installing the Junction Box
1. Remove the junction box from the Mobile Collection hardware kit.
2. Locate the sled or pedestal mount on which you are installing the junction box. In the
following example, a sled is used.
3. Use a Phillips screwdriver to remove the two screws holding the junction box bracket in
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 18 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
