ITRON MC3 User Manual

■

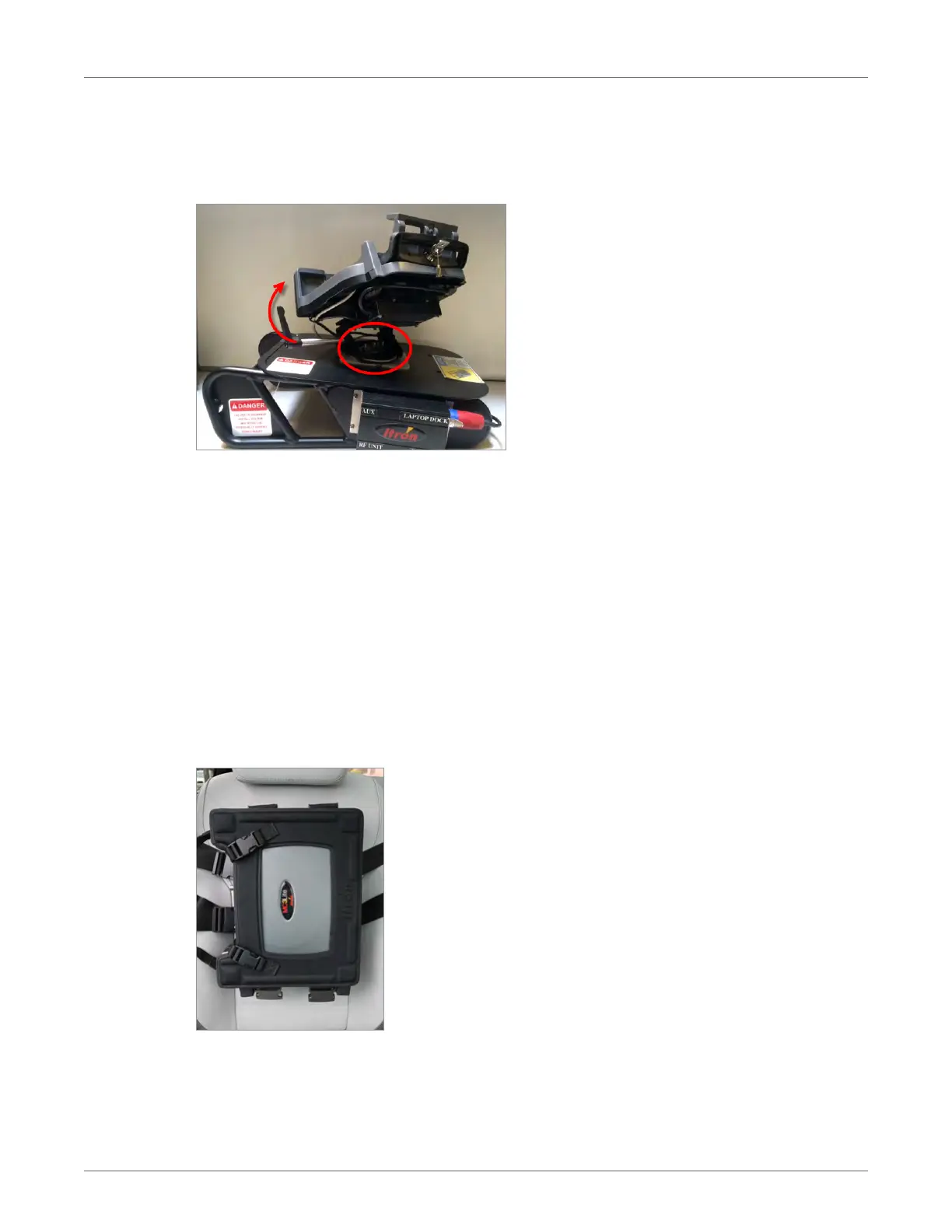

Grasp the tablet dock with both hands. Firmly rotate the dock towards the driver until you
reach the desired position. To prevent the tablet dock from moving during its use, the swivel
mechanism is tight, thus it may be hard to swivel.
Mounting the Mobile Collector Radio in the Vehicle
The Mobile Collector radio is mounted in a harness with clips so that it can attach to either a
bucket or bench seat in a vehicle. The MC3 and MC3Lite are each shipped in its harness with the
straps set up for a bucket seat. The bench straps are included with the radio.
If you are using a sled in either the bucket or bench-style seat arrangement, you must attach the
Mobile Collector radio high enough on the seat-back to leave room for the sled and Mobile
Collection computer to fit on the seat beneath the radio.
■
Sled Systems- Mount the MC3 or MC3Lite radio high enough on the seat back (as shown in
the following example) so the sled and Mobile Collection computer fit beneath the radio on
the seat.
■
Pedestal Systems- The MC3 or MC3Lite radio can be attached to the lower portion of the
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 27 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
