seat, as shown below.

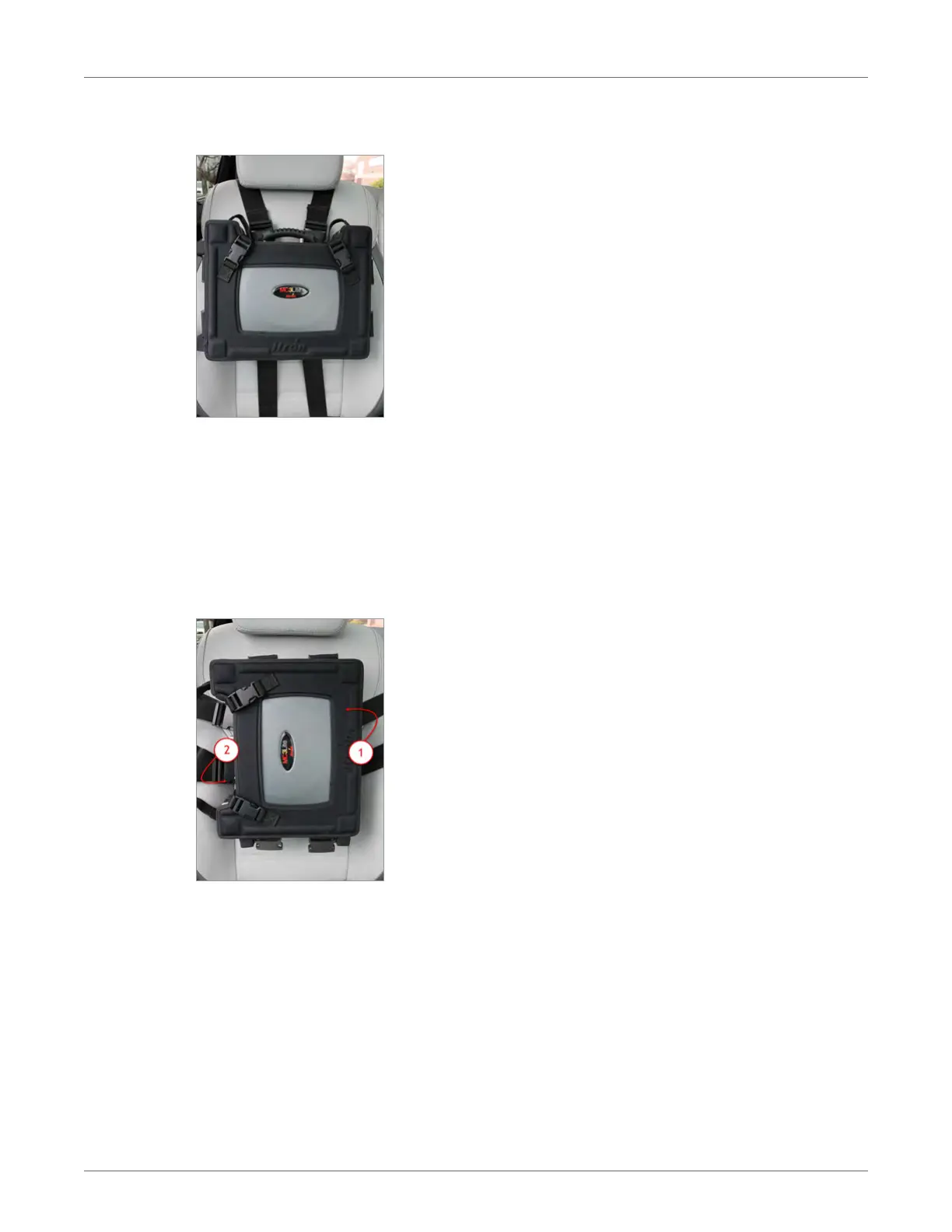

Mounting the Mobile Collector Radio on a Bucket Seat
1. Position the harnessed Mobile Collector radio so that the unit's connectors and handle face
towards the passenger-side door when mounted to either the front or the back of the
passenger seat.
2. Extend the mounting straps from the driver-facing side of the vehicle mount (1), wrap them
around the seat back, and buckle them to the opposite side of the vehicle mount (2).
3. Tighten the straps until the radio is secure against the seat-back.
Vehicle Sled
The Mobile Collector radio rides in a harness that attaches to a bucket or bench-style passenger
seat. The Mobile Collector sled is equipped with a dock for the computer and a junction box for
power connectors. The junction box must be attached to the sled prior to use. The sled should be
mounted on the seat before the radio is attached. The Mobile Collector radio must be mounted
high enough on the seat so that the right-side ports on the Mobile Collector computer are
accessible.
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 28 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
