place.

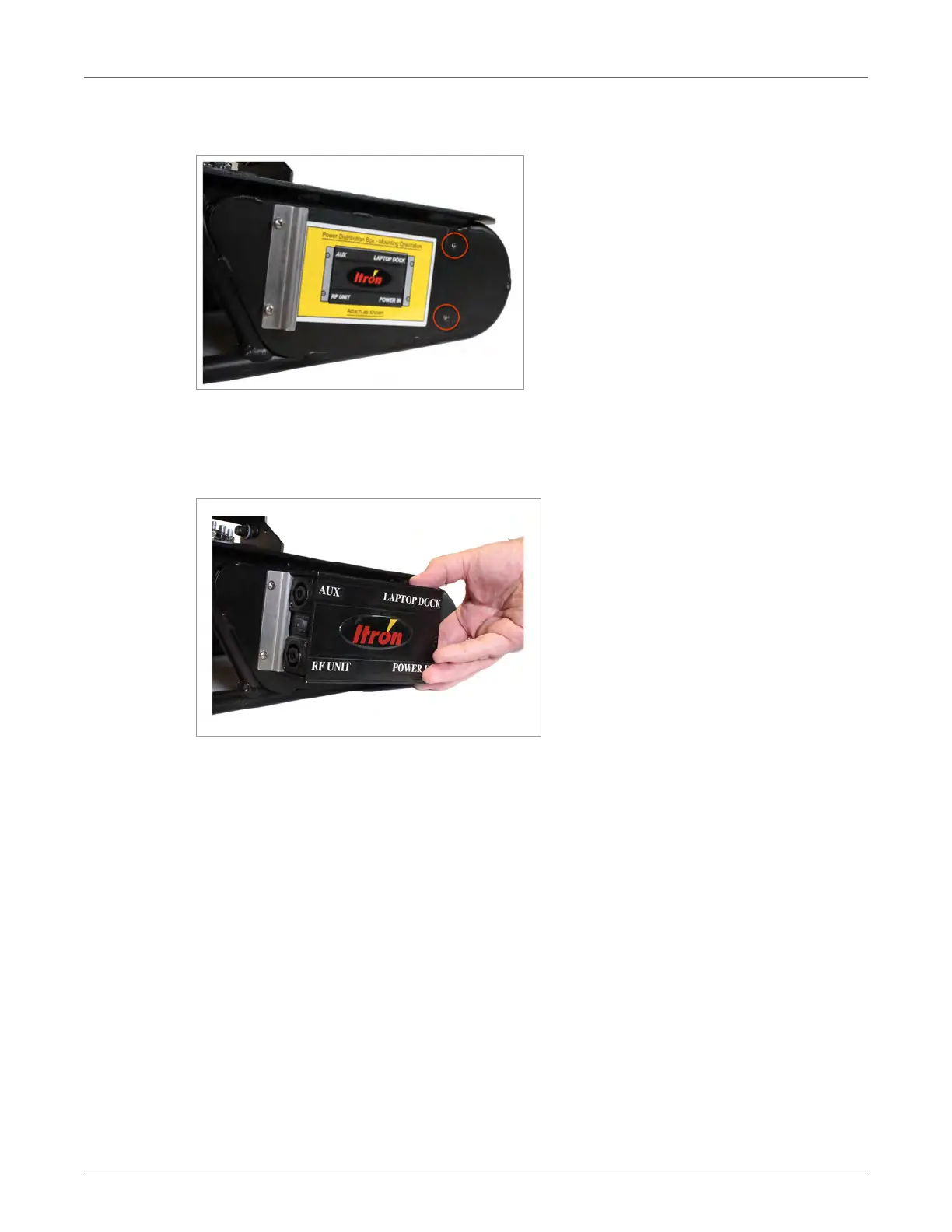

4. Slide one end of the junction box into position over the bracket that is still attached. Be sure to
orient the junction box according to the label on the sled or pedestal. The bracket fits into the
recessed edge on the junction box.
5. Insert the other bracket (the one you removed) into the junction box, making sure that both
screw holes are visible through the bracket.
6. Insert and tighten both screws to secure the junction box to the sled or pedestal.
Vehicle Docks
Use the Mobile Collection vehicle dock to secure the Mobile Collection computer to either the
sled or a pedestal mount in your vehicle. The vehicle dock provides power and communication
connections between the Mobile Collection computer and Mobile Collector radio. There are
three types of vehicle docks, depending on your computer:
■
The FZ-G1 (10”) tablet dock
■
The FZ-M1 (7”) tablet dock
■
The CF-33 laptop dock
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 19 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
