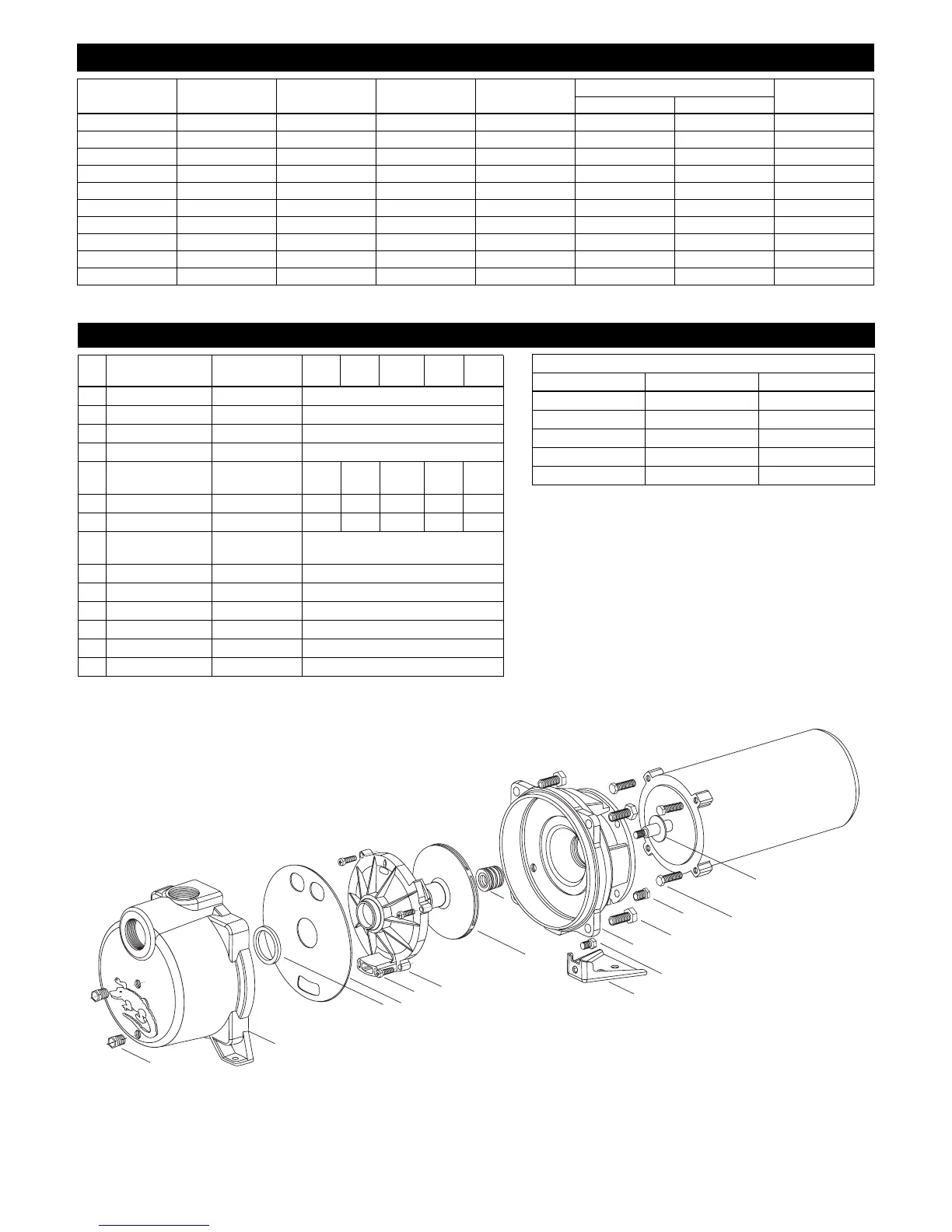

5
Electrical Data
Circuit Breaker
Standard Delay
GT07
3
4 115/230 13.8/6.9 45/25 45/25 25/15 1/60
GT10 1 115/230 16/8 50/25 50/25 30/15 1/60
GT15 1
1
2 115/230 20/10 60/30 60/35 35/20 1/60
GT20 2 230 13.9 40 40 25 1/60
GT30 3 230 17 60 60 30 1/60
GT073
3
4 208-230/460 3.1-2.8/1.4 10-10/10 10-10/10 10-10/10 3/60
GT103 1 208-230/460 4-3.6/1.8 15-15/10 15-15/10 15-10/10 3/60
GT153 1
1
2 208-230/460 5.7-5.2/2.6 20-20/10 20-20/10 15-10/10 3/60
GT203 2 208-230/460 7.5-6.8/3.4 25-25/15 25-25/15 15-15/10 3/60
GT303 3 208-230/460 10.6-9.6/4.8 35-30/15 35-30/15 20-20/10 3/60
Model HP Voltage Full Load Amps Fuse Ph/Hz
Repair Parts List
1
5
3
2
10
9
8
7
6
14
13
1
12
11
Motor Codes
HP 1Ø – ODP 3Ø – ODP
.75 J05853R C05873
1.0 J06853R C06873
1.5 J07858R C07878
2.0 J08854R C08874
3.0 J09854 C09874
4
Item GT07/ GT10/ GT15/ GT20/ GT30/
No. GT073 GT103 GT153 GT203 GT303
1
1
4" NPT Pipe Plug Plated Steel 6K2
2 Casing Cast Iron 1K324
3 Guidevane Seal Ring BUNA 5K231
4 Diaphragm Neoprene 5K256
Fillister Head
Machine Screw
6 Guidevane Lexan
®
10% G.F. 3K72 3K71 3K70 3K70 3K69
7 Impeller Noryl
®
20% G.F. 2K715 2K716 2K714 2K713 2K712
Carbon/Ceramic/
BUNA
9 Pump Foot Steel 4K408
10 Pump Foot Bolt Steel 13K252
11 Motor Adapter Cast Iron 1K310
12 Casing Bolt Steel 13K102
13 Motor Adapter Bolt Steel 13K89
14 Deflector BUNA 5K7
Description Material
8 Mechanical Seal 10K10
5 Stainless Steel 13K4 13K4 13K2 13K2 13K2
