SERVICE MANUAL SPIKA

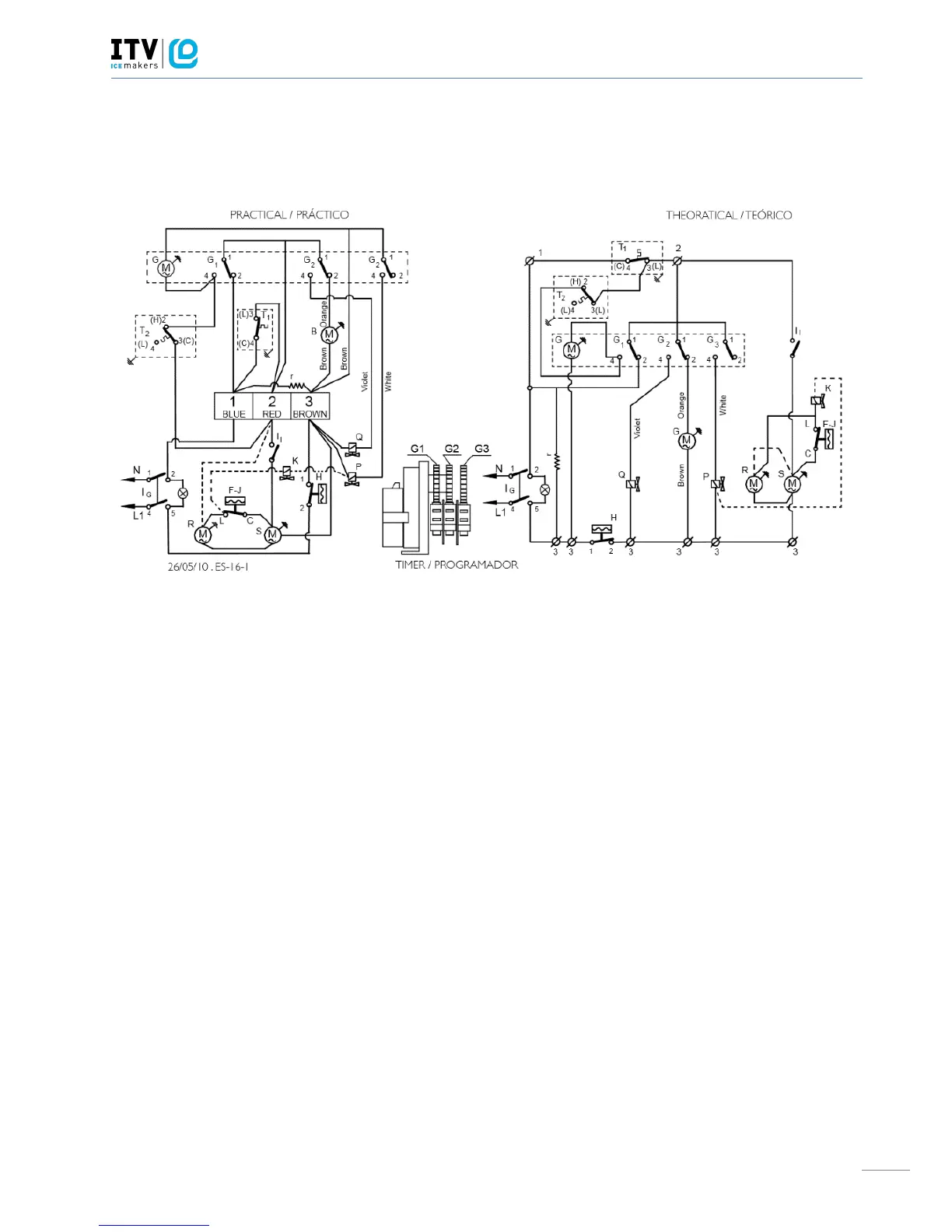

9. WIRING DIAGRAMS

9.1. SPIKA NG (undercounter models)

COMPONENTS:

B Motor pump

F Fan pressure switch

G Timer

G1 Timer safety cam

G2 Timer circuit cam

G3 Timer valve cam

H Hgh pressure switch

J Condensation (water) pressostat

K Condensation (water) valve

P Water valve

Q Hot gas valve

R Fan motor

S Compressor

T1 Stock Thermostat

T2 Cycle Thermostat

Ig ON/OFF switch

Il Cleaning switch

----- For water cooled units
