Section 5. Setup

5.1 Setup

Connect the sensor plate to the controller. Be sure that the Plate signal connector and

the HV connector are connected to the controller correctly. For proper measurement,

EA-5J should be grounded on the right side grounding terminal by the grounding lead

provided with the equipment.

CAUTION

If the sensor plate is not connected, the condition setting etc. cannot be done. In this

case, when power is on "ERROR 0" will be displayed.

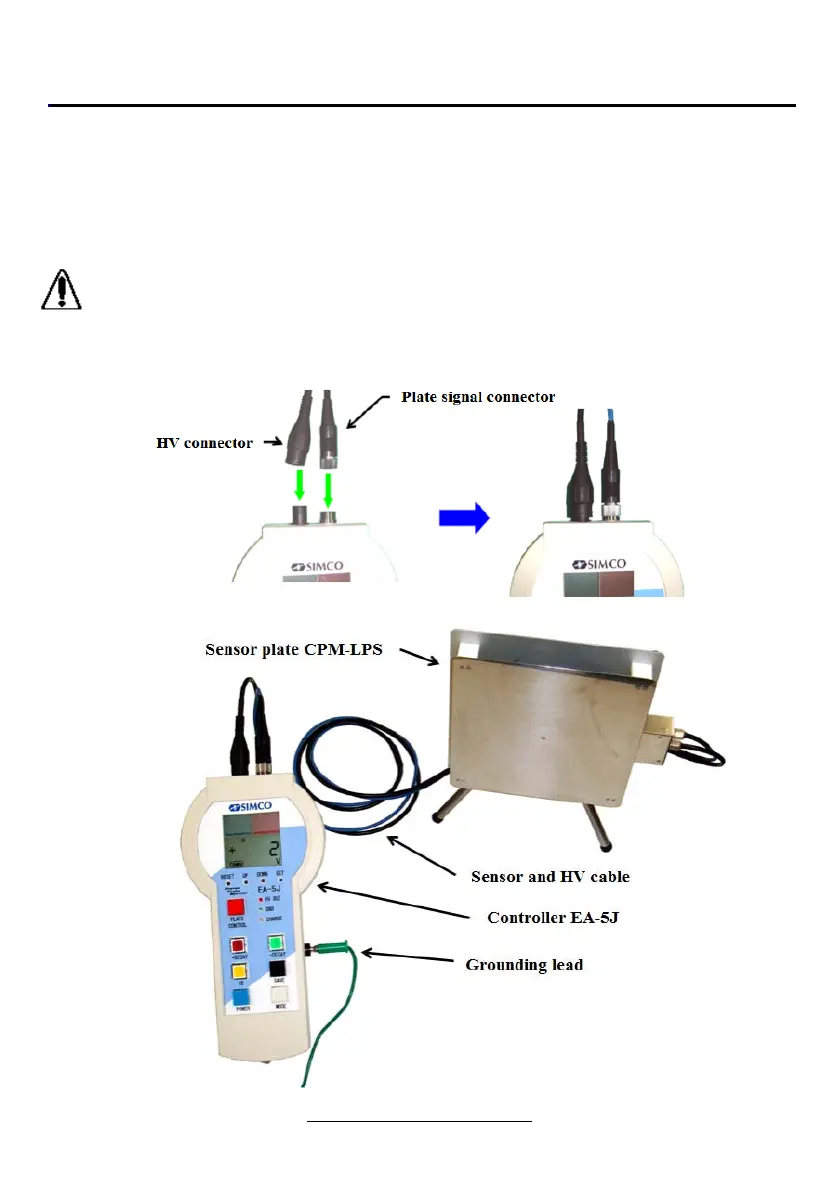

Connection of the sensor plate

-page12-
