RESCUE GUIDE ‒ Technical rescue
TECHNICAL BACKUP
DRIVER AND PASSENGER COMPARTMENT
9
– Printed 692.68.340 – 1st Ed. 04/2015

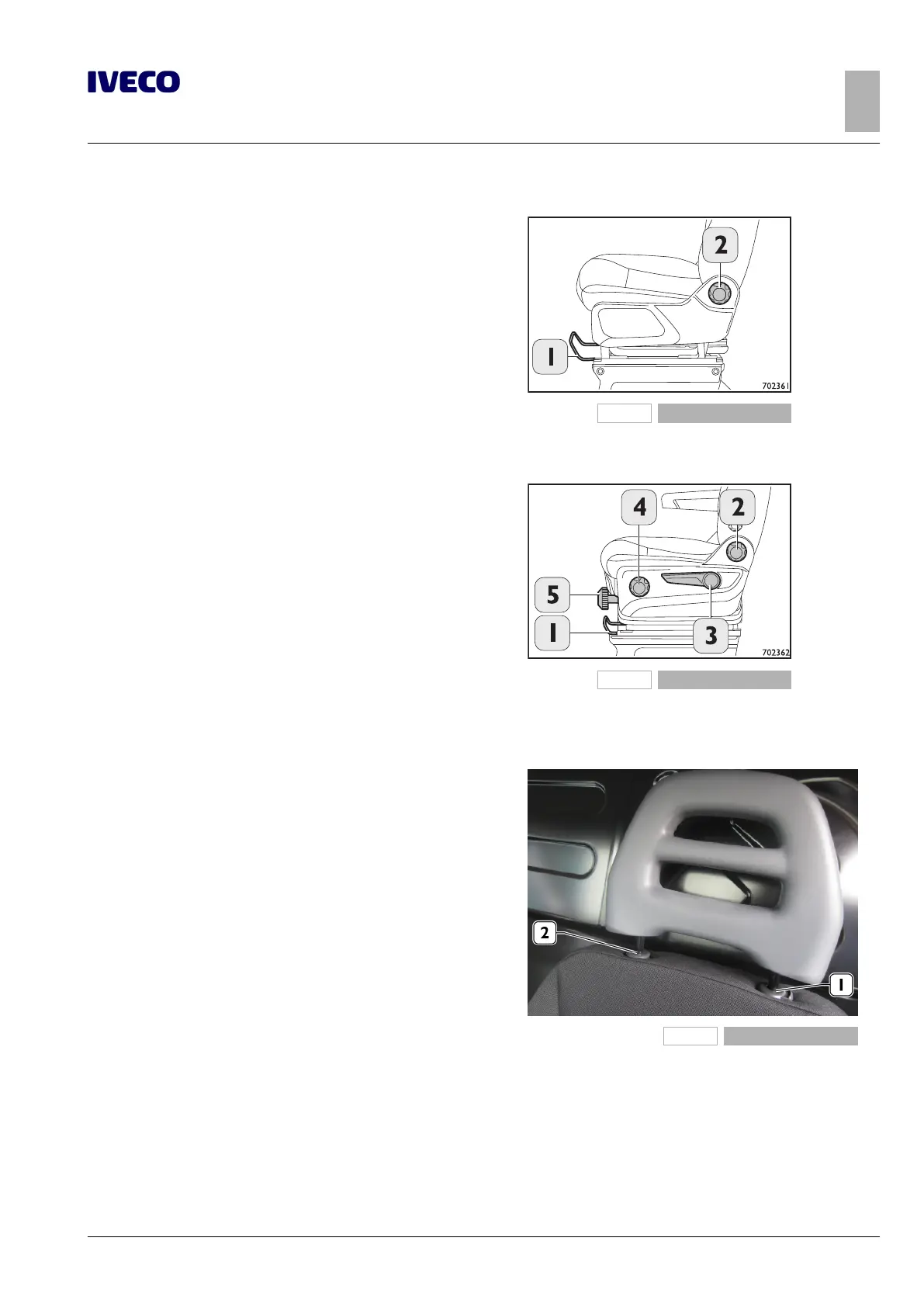

Seats with two degrees of freedom
702361
Figure 10
Pull lever (1) up to release the seat in order to move it forwards
or backwards; when releasing the lever, the seat locks in the desired
position.
By turning the knob (2) forwards, the inclination of the seat de-
creases with respect to the cushion.
Seats with four degrees of freedom
702362
Figure 11
Pull lever (1) up to release the seat in order to move it forwards
or backwards; when releasing the lever, the seat locks in the desired
position.
By turning the knob (2) the user can adjust the back rest.
By turning the lower side knob (4) the inclination of the cushion can
be adjusted.
Using the side lever (3) adjusts the height of the seat (direct "ratchet"
control): moving the lever downwards lowers the seat, while moving
it upwards raises the seat.
Pre-adjustment of the seat suspension is performed by turning the
knob (5) (located at the front, under the cushion).
Head rest
226171
Figure 12
Adjusting upwards: lift the head rest until you hear the locking mech-
anism click
Adjusting downwards: press the button (1) and lower the head rest.
To remove the headrests, press buttons (1) and (2) at the sides of
the two supports at the same time and pull the head rest upwards.
