4.3 Assembly
Assembling the furnace is very easy and involves only few steps. Before you start assembling the furnace, make sure that
the voltage indicated on the rating plate (27) complies with the local power supply. If this is not the case, the furnace must
not be connected.

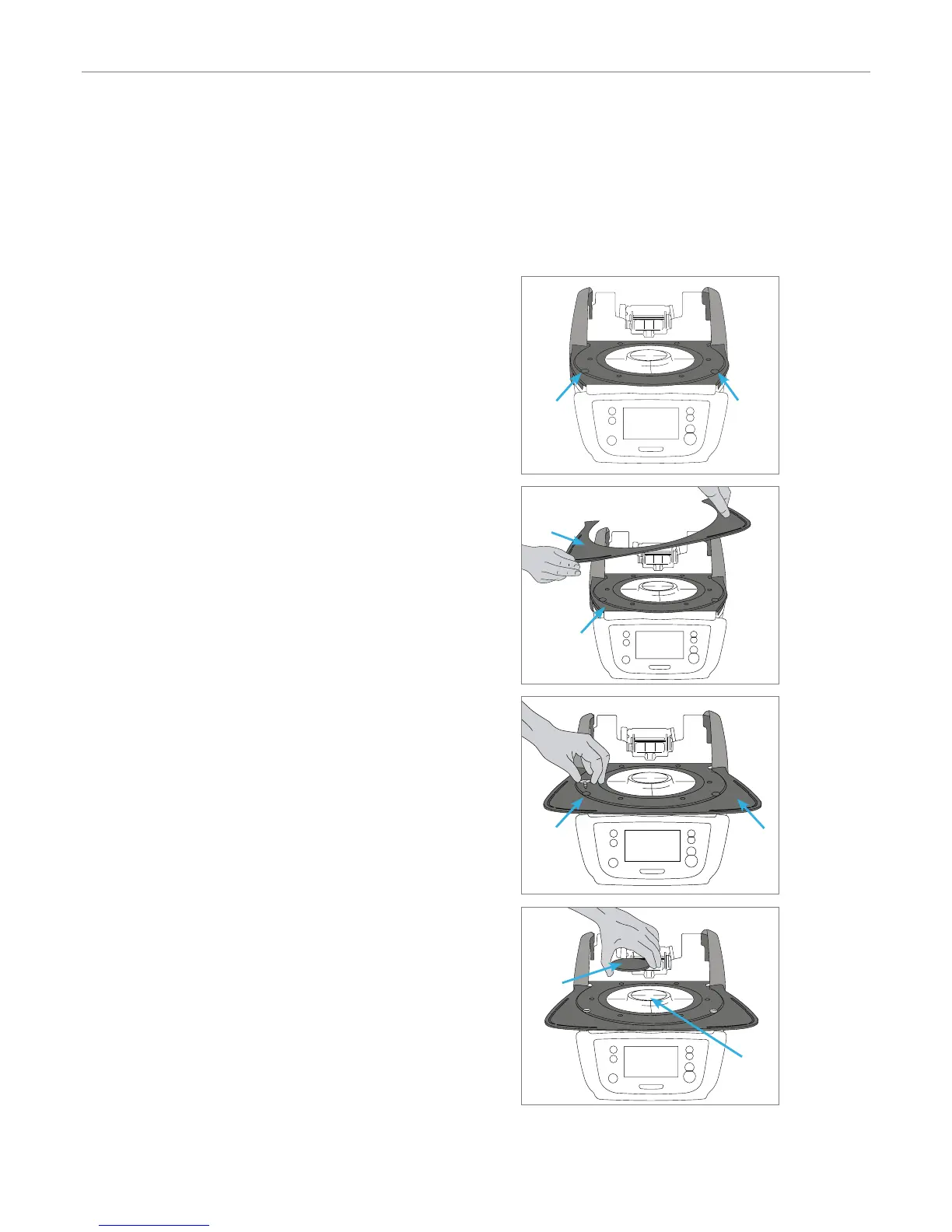

Step 1:
Mounting the cooling tray (7)
Remove the two screws for the cooling tray (8).
Secure the cooling tray (7) with the two screws (8).
Step 2:
Placing the firing plate
Place the firing plate (17) on the frame plate (18). If placed correctly,
the bottom side of the firing plate automatically centres on the
frame plate.
Place the cooling tray (7) on the frame plate (19). Make sure that the
cooling tray is correctly positioned.
8 8
4. Installation and Initial Start-Up
