Step 5:

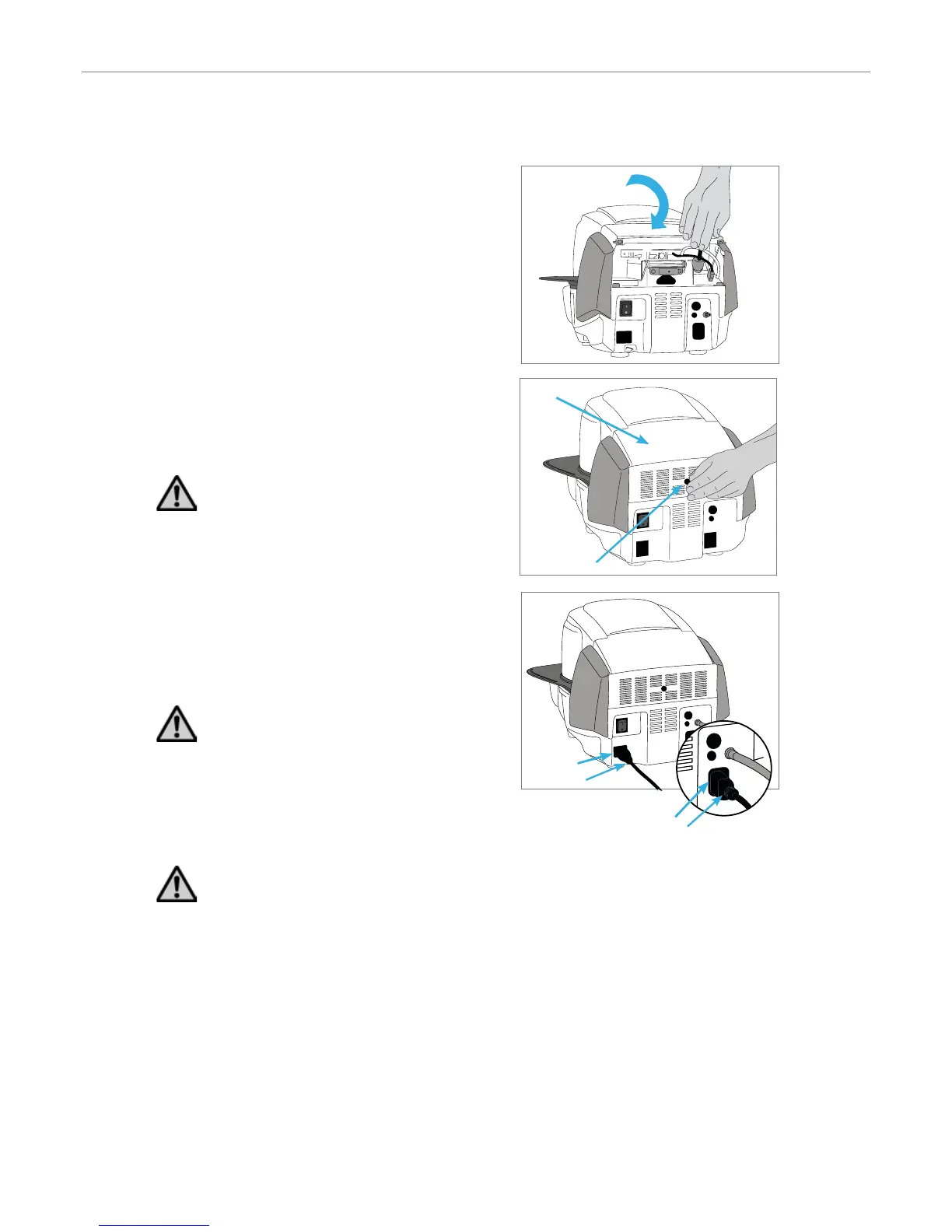

Mounting the hood
Once all cables are properly connected to the furnace base, close the
hood (11) over the connections.
Step 7:
Establishing additional connections
Power connection
Please make sure that the voltage indicated on the rating plate
complies with the local power supply. Subsequently, connect the
power cord (26) with the power socket of the furnace (25).
The furnace may only be operated with the supplied
power cord.
Vacuum pump connection
Connect the vacuum pump plug (30) with the vacuum pump socket
(29). We recommend using only a vacuum pump from Ivoclar
Vivadent, since these pumps are especially coordinated with the
furnace. If other pumps are used, please observe and do not exceed
the maximum power consumption.
Do not shorten the vacuum hose! The minimum length of
the vacuum hose is 1.6 m.
Step 6:
Mounting the connection cover
Mount the connection cover (32) and secure it with the fastening
screw (33). Make sure that the lateral catch springs snap into place
when mounting the connection cover.
The furnace may only be operated with the hood and the
connection cover mounted!
