30
Two-stage programs
A two-stage program permits firing procedures on two temperature levels with different parameters (e.g. Holding time
Stage 1, Holding time Stage 2) to be conducted.
The function “two-stage program” can be selected in the Options menu.
If a two-stage program has been activated, switching back and forth between the parameters of the first temperature level
and the second temperature level is possible in the program screen. The screen now shows the symbol “two-stage
program active” next to the [Options] button.

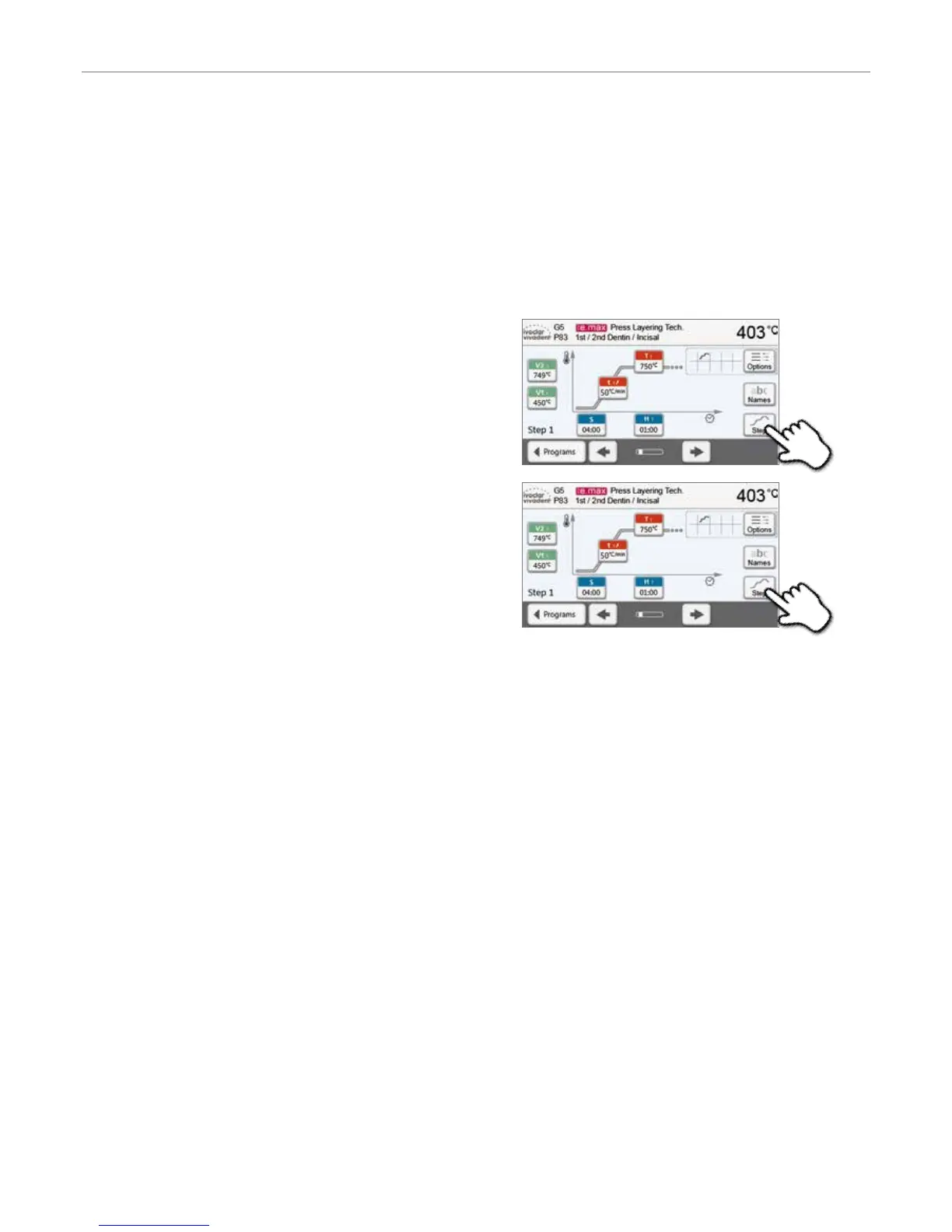

Example:
1. Changing the program stage
The program screen shows the parameters of the first temperature
level (S, H1, etc.).
Pressing the [Step] button results in the screen for the second
temperature level being displayed.
2. Now, the parameters for the second temperature level can
be entered.
Pressing the [Step] button again switches the screen back to the first
temperature level.
Automatic plausibility check of the parameters
The furnace is equipped with an automatic plausibility check function. The parameters are checked upon each program
start. In case of contradictory parameter combinations, the program stops automatically and the respective information is
indicated.
5. Operation and Configuration
