IVT 09LR-N User Manual

12LRN
1 – 4

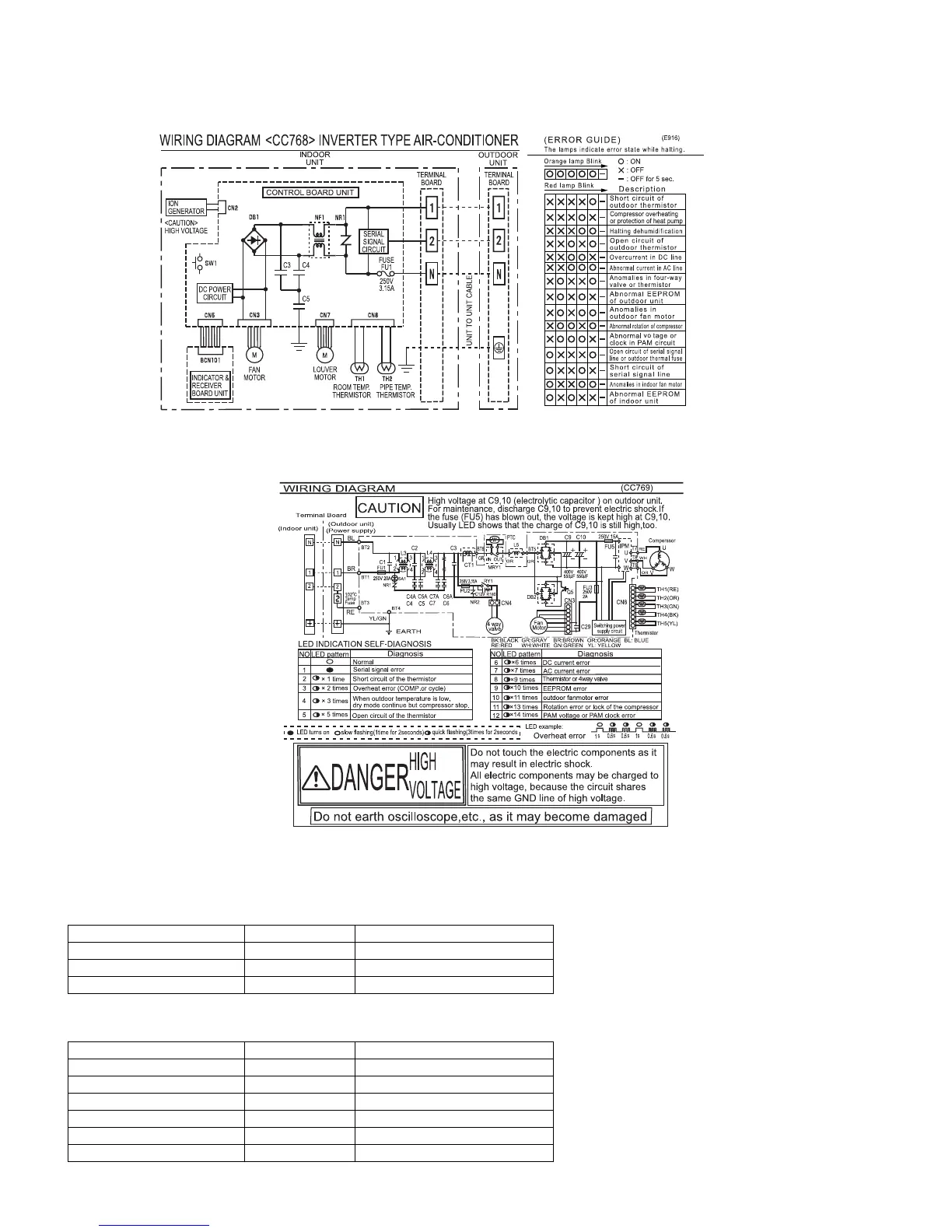

[3] WIRING DIAGRAM
1. Indoor unit
2. Outdoor unit
[4] ELECTRICAL PARTS
1. Indoor unit
2. Outdoor Unit
DESCRIPTION MODEL REMARKS
Indoor fan motor MLB469 DC motor
Transformer – RTRNWA054JBZZ
FUSE1 – QFS-GA078JBZZ (250V, 3.15A)
DESCRIPTION MODEL REMARKS
Compressor 5RS102XBE01 DC motor
Outdoor fan motor MLB427 DC motor
Fu3 – QFS-GA077JBZZ(250V, 2A)
Fu2 – QFS-GA078JBZZ(250V, 3.15A)
Fu1 – QFS-CA001JBZZ(250V, 20A)
Fu5 – QFS-CA002JBZZ(250V, 15A)
l
