CHAPTER 5. DISASSEMBLY PROCEDURE
Be sure to disconnect the power cord from the AC power outlet before starting the disassembly procedure.
Be sure to install screws to their original positions after repairing
After the air conditioner is repaired or parts are replaced, measure insulation resistance of the equipment using an insulation resistance meter. If the
measured resistance is lower than 1 MΩ,inspect parts and repair or replace defective parts.
[1] INDOOR UNIT

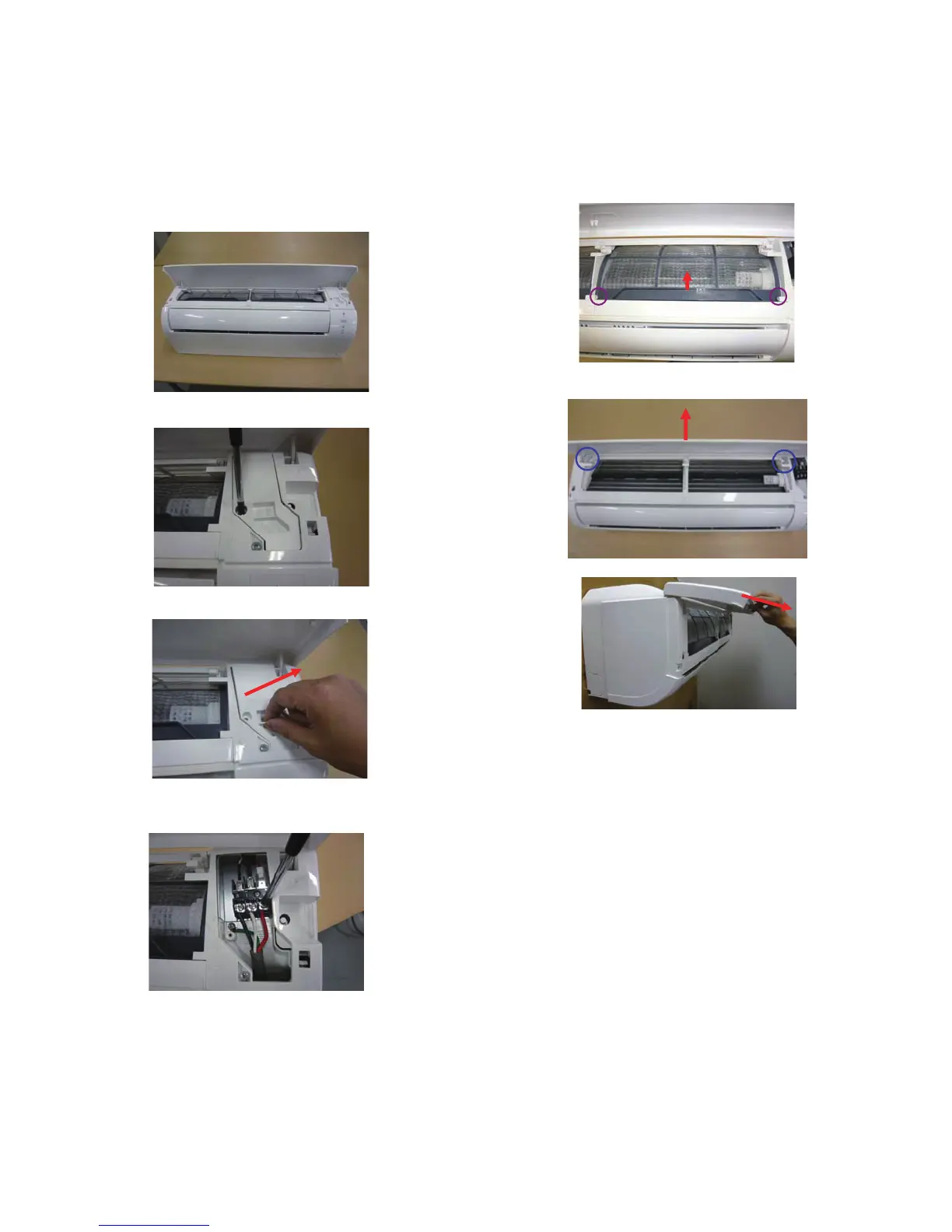

1) Open the open panel.
2) Remove a screw fixing the cord holder.
3) Remove the cord holder.
4) Loosen the screws on the terminal board remove the Unit-to Unit
wiring connected with board.
5) Slide out the 2 air filter.
6) Pull out two hooks and remove the panel.
