12LRN
5 – 2

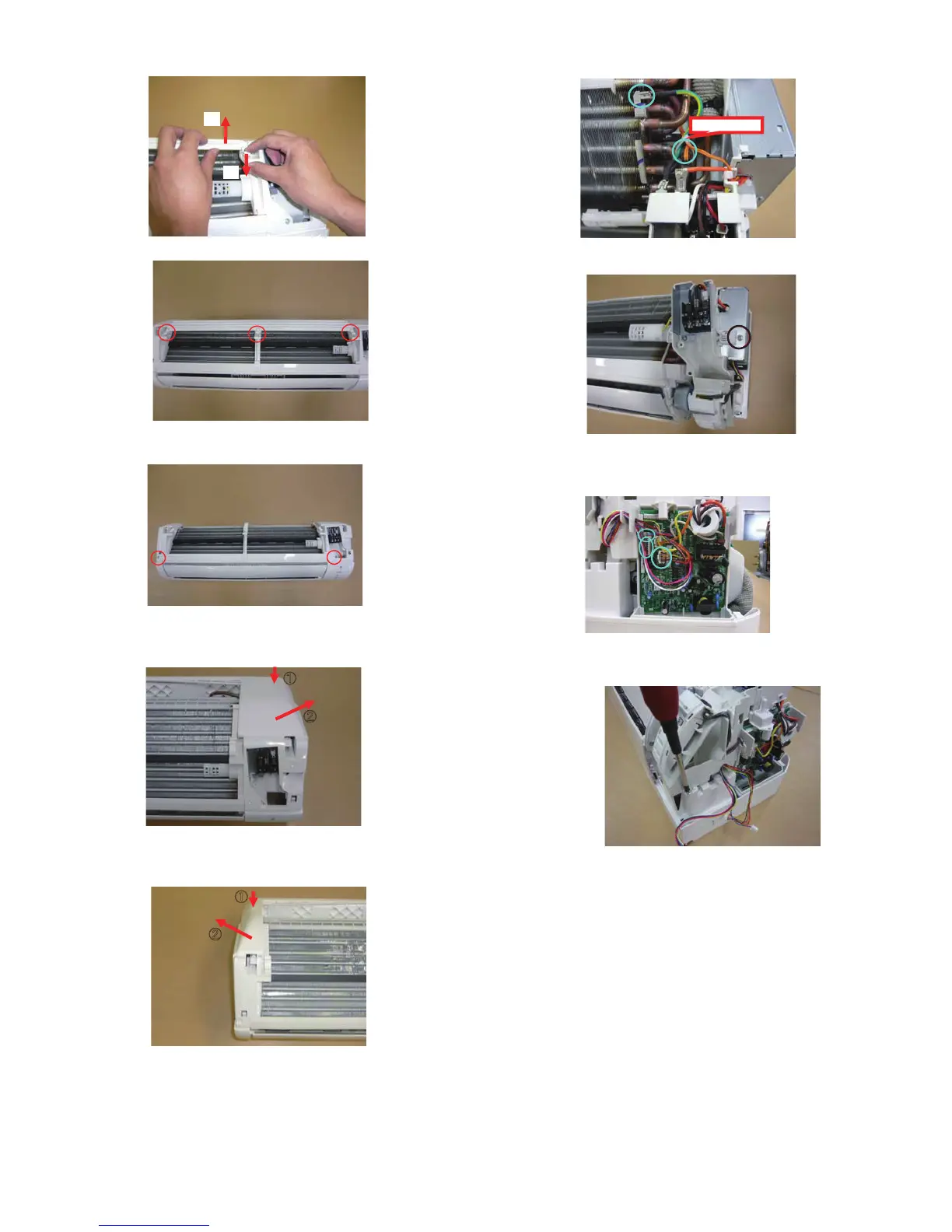

7) Remove the grill (Unhook the 3 hooks shown in the picture.)
8) Remove the 2 screws fixing the front panel R and front panel L.
9) Remove the front panel R.
Push the upper hook and pull the front panel R out.
10)Remove the front panel L.
Push the upper hook and pull the front panel L out.
11)Cut the fixing band and remove the thermistor and earth wire.
12)Remove the screw fixing the control box cover.
13)Remove the 3 connectors.(FAN MOTOR, LOUVER MOTOR and
PLASMCLUSTER)
14)Unscrew the screw and remove the control box.
㽲㽲
㽳㽳
To Next Page
